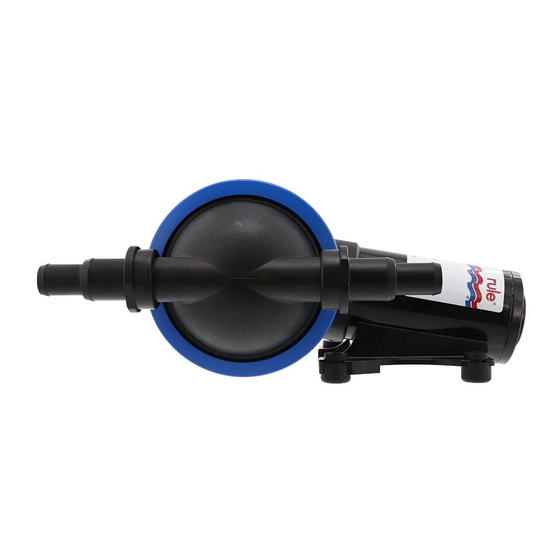

- Page 1 DB412 INSTRUCTION MANUAL DRY BILGE PUMP WITH PANEL SWITCH...
-
Page 2: Purpose Of This Manual
DRY BILGE PUMP WITH PANEL SWITCH Purpose of This Manual The purpose of this manual is to provide necessary information for product installation, operation and maintenance. CAUTION: Read this manual carefully before installing, using or servicing this product. Failure to follow the instructions within this manual could result in explosion, property damage, severe personal injury and/or death. -
Page 3: Specifications
Robust Single Diaphragm Design Features • Flexible installation • Compact and simple design • 12 volt • Dry running capability • Connections for 3/4" (19mm) ports and 1.0" (25.4mm) ID hose • Up to 4.0 US GPM (15 LPM) flow Specifications •... -
Page 4: Wiring Instructions
Electrical Disconnect power before installing or servicing the pump. All potential sources of ignition located in spaces containing gasoline powered machinery or gasoline fuel tank(s), or joint fitting(s), or other connection(s), between components of a gasoline system, shall be ignition protected in accordance with the requirements of ISO 10133, ABYC E-11, AC and DC Electrical Systems On Boats. -
Page 5: Operation
• A seacock installed in accordance with the requirements of ABYC H-27, Seacocks, Thru-Hull Connections, and Drain Plugs, and • A vented loop to prevent siphoning into the boat. A check valve shall not be used for this purpose. If the discharges of several pumps are manifolded to discharge through a single thru-hull fitting, the system shall be designed so that the operation of one pump will not back feed another pump, and the simultaneous operation of each pump will not diminish the pumping capacity of the... -
Page 6: Maintenance
Rotation of Ports 1. Undo clamp using allen key 2. Remove clamp 3. Rotate port unit to desired location 4. Example of pumps rotational capabilities 5. Replace clamp and tighten until firmly secure Maintenance WARNING: Always disconnect pump from power supply. Check all electrical connections periodically, particularly in salt water areas. -
Page 7: Exploded View
Exploded View Part Numbers Model Description Voltage Fuse Sizes DB412 Complete Kit Panel Switch Service Kits Model Description SK880 Service Kit - Bilge Pump 50886-1000 Clamp Kit Thru Hull Fitting - 3/4" Right Angle Description Quantity in Kit Bracket Bush Con Rod Con Rod Plate Hex Head Screw... -
Page 8: Dimensional Drawing
© 2020 Xylem. All rights reserved. Rule is a trademark of Xylem or one of its subsidiaries. 950-0548 Rev. B 05/2020...
