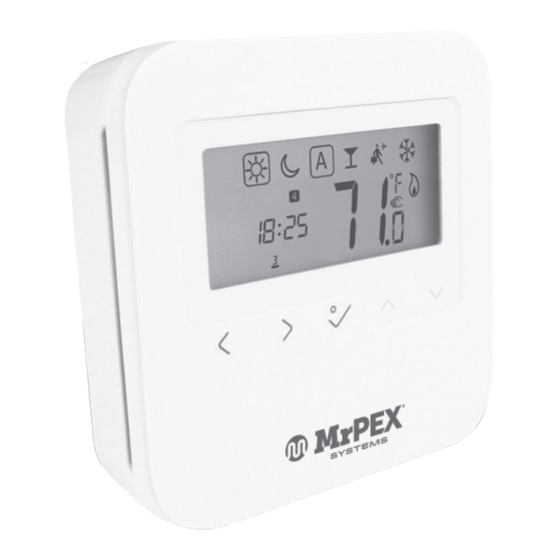

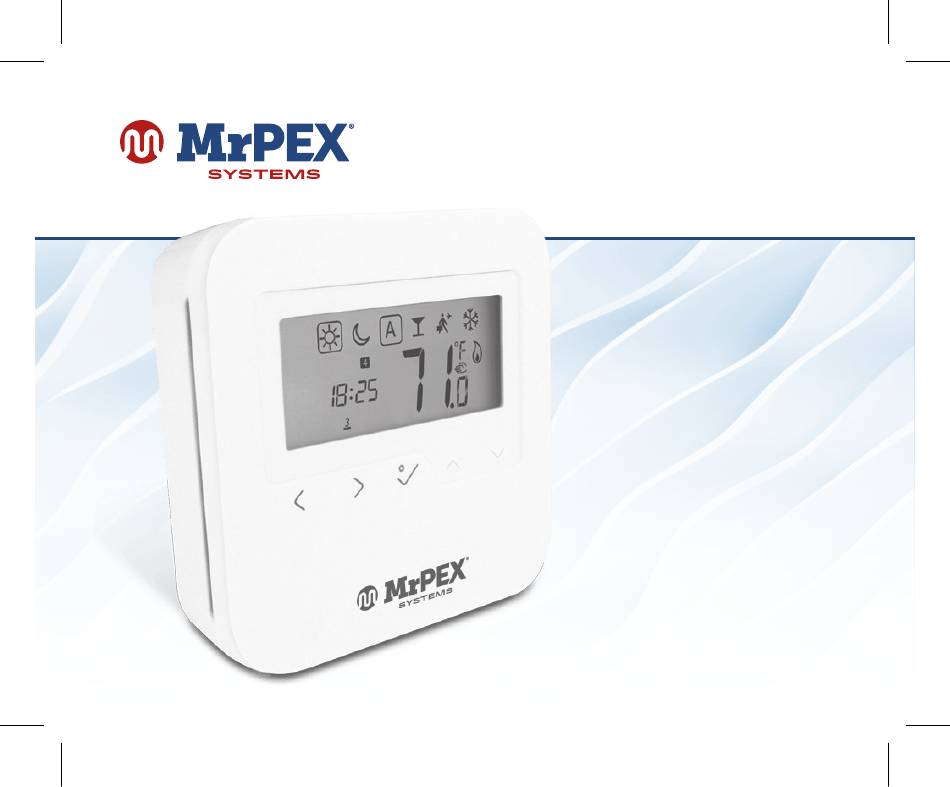

- Page 1 3-WIRE DIGITAL THERMOSTAT 5115024 Installer Manual...
-
Page 2: Contents Of The Box
Your benefit Manual Contents 5115024 Thermostat » Box Contents » Introduction » Product Compliance and » Safety Information » Installation » User Interface » Status/LED indication » Installers notes » Warranty Fixing Screws 1 x Installer Manual 5115024 Instruction Manual... - Page 3 » Increase the separation between the equipment and receiver. » Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. » Consult the dealer or an experienced radio/TV technician for help. 5115024 Instruction Manual...
- Page 4 (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 5115024 Instruction Manual...
-
Page 5: Safety Information
This accessory must be fitted by a competent person, and installation must comply with the guidance, standards and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution. 5115024 Instruction Manual... -
Page 6: Product Description
We hope you enjoy our product. INSTALLING THE UNIT Install the 5115024 digital room thermostat roughly about 1.5m above floor level. It should be mounted in a location where the thermostat is easily accessible and away from direct sunlight. You can mount the thermostat directly on the wall or you can install it on top of a wall-box. -
Page 7: Mounting The Thermostat
1. MOUNTING THE THERMOSTAT Gently remove front housing. Without floor sensor With floor sensor 5115024 Instruction Manual... -
Page 8: Terminal Connection
2. TERMINAL CONNECTION R C W 5115024 Instruction Manual... - Page 9 Indicates AUTO ON or AUTO OFF Indicates that the Party Mode is active Indicates that the Holiday Mode is ON. Frost Protection Indicator: Frost protection is active, not available in cooling mode. Heat Mode indicator: Indicates heating is running 5115024 Instruction Manual...
- Page 10 • Display the room temperature • Display the set temp Temporary override indicator: Temporary override indicator The hand will appear until the next programs starting time. Programs number indicator. Indicates the time. Indicates the the day of the week 5115024 Instruction Manual...
-
Page 11: Button Functions
Long press to save and return home. Long press to enter Temperature offset Heat/Cool. Decrease or increase Setpoint Temperature. Note For changing the temperature display from °C to °F , go to Installer Mode Menu and change d00 value to 1. 5115024 Instruction Manual... -
Page 12: Setting Date And Time
6. SETTING DATE & TIME When you first power up your device you will have to set up the date and time. Press Press to confirm. to choose 12/24 hr then press confirm. 5115024 Instruction Manual... - Page 13 Set the hour Set the by using minutes by using or Press confirm. Set the date by using Press confirm. Note You can access the date and hour by long pressing . After that press to confirm. 5115024 Instruction Manual...
-
Page 14: Setting Your Programs
Press minutes. confirm. Note If you want to select another Program Profile (from the available 5), please enter in Installer Mode, choose option d17 and after that select the desired program. 5115024 Instruction Manual... -
Page 15: Program Profile
Program Time Point Time Point Point Point 6:00 7:00 9:00 Night Night 23:00 Night Night 16:00 --:-- --:-- --:-- 23:00 Night Night --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- 5115024 Instruction Manual... - Page 16 Point Time Point Point Point 6:00 7:00 22:30 Night Night 23:00 Night Night --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- 5115024 Instruction Manual...
- Page 17 Program Time Point Time Point Point Point 5:00 7:30 8:00 Night Night 23:30 Night Night 14:00 --:-- --:-- --:-- 22:00 Night Night --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- 5115024 Instruction Manual...
- Page 18 Program Time Point Time Point Point Point 6:00 7:30 9:00 Night Night 23:00 Night Night 15:00 --:-- --:-- --:-- 22:30 Night Night --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- 5115024 Instruction Manual...
- Page 19 Program Time Point Time Point Point Point 6:00 7:30 10:00 Night Night 23:30 Night Night 16:00 --:-- --:-- --:-- 23:00 Night Night --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- --:-- 5115024 Instruction Manual...
- Page 20 You can customize your programs by long pressing when on the program screen. Press the indicated keys Select P47 if you want to Press to confirm. together for 3 seconds. reset to factory settings. Press to confirm. 5115024 Instruction Manual...
-
Page 21: Installer Mode
Installer Mode. Select your option by using . Press to confirm . Note This function allows you to customize your thermostat as you desire. In order to do this please consult the tables on the next pages. 5115024 Instruction Manual... - Page 22 (± 0.5 °C) / 33.8 °F (± 32.9 °F) 0 = VP Valve Protection 0 = VP Disabled 1 = Enable 5 °C – 17 °C 5.0ºC / Frost Setpoint 41 °F – 62.6 °F 41 oF 5115024 Instruction Manual...
- Page 23 < protecting limit, step is 0.5 °C (heating low limit-LL) 50 °F (32.9 oF) Turn off relay output when floor sensing Floor sensor protection limit 6 °C temp < protecting limit, step is 0.5 °C (cooling) 42.8 °F (32.9 oF) 5115024 Instruction Manual...
- Page 24 During the periods of cooling blocked no special indicator will be displayed on the LCD screen. Ice flake will also be turned off. Note d19 will be available only if d18 is set on 1 (Heat/Cool Mode selection Connected). 5115024 Instruction Manual...
-
Page 25: Party Mode
The maximum to move the (box) to a time allowed on different program. Once Party Mode the Party Mode ends the countdown automatically is 9 h 50 min and resets to 0. can be set from 0-10 min. 5115024 Instruction Manual... -
Page 26: Vacation Mode
Vacation Modes ends when it reaches day 0. After that the device goes back to Auto Mode. 14. FROST MODE Press Press you want to change to select Frost the Frost Mode temp. Mode. Press Press to confirm. to confirm. 5115024 Instruction Manual... -
Page 27: Temperature Offset
Press to enter Press in order to to enter Settings Mode. Setting Mode. set the Temperature Offset. The Temperature Offset can be set at any value between -3ºC (26.6 °F) and +3ºC(26.6 °F). Press to confirm. 5115024 Instruction Manual... -
Page 28: Technical Specification
125 g net / 170 g gross (4.40oz/5.99oz) Puls-wide-modulation (PWM) Clock, Timer Yes, programmable Profile Modes 3 (Day, Night, Automatic) Heating and Cooling Yes, automatically Change Over on the Wiring Centre Parameter adjustment Yes, in Installer Mode Dimensions 85mm*85mm*25mm (3.34in*3.34in*0.98in) 5115024 Instruction Manual... - Page 29 NOTES 5115024 Instruction Manual...
- Page 30 NOTES 5115024 Instruction Manual...
-
Page 31: Warranty
Systems warrants that this product (5115024) will be free from any ® defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. MrPEX sole ® liability for breach of this warranty will be (at its option) to repair or replace the defective product. - Page 32 Ramsey, MN 55303 (800) 716-3406 mrpex systems.com MrPEX® North America is a member of the Computime Group Maintaining a policy of continuous product development MrPEX Controls plc reserve the right to ® change specification, design and materials of products listed in this brochure without prior notice.
