THERMOSTAT INSTALLATION
INSTALLATION INSTRUCTIONS FOR
DIGITAL THERMOSTAT #5110740
PREPARATION: This is a Low Voltage Thermostat. Before installing this thermostat, verify that the system is a low
voltage heating system. If necessary, check with your local dealer.
NOTE: Leave these instructions with the homeowner for future reference.
Find a location about 5 ft above the floor that has a constant temperature, and is not subject to big swings in
temperature. Avoid mounting close to; oven, fireplace, outside door, air conditioning register, TV, or full sun.
WARNING!!! Turn off the main power switch before installing the thermostat.

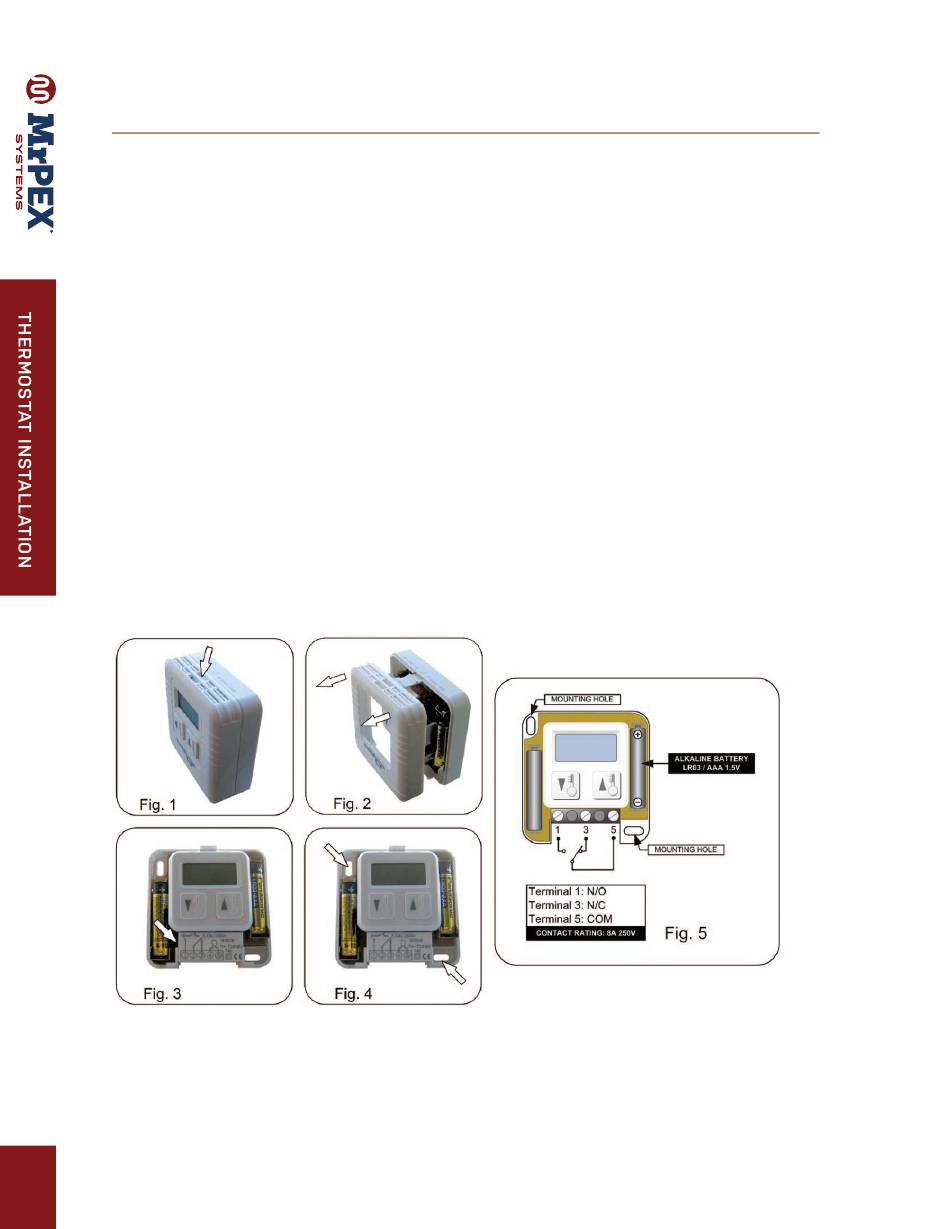

Release the front cover by pressing the tab on the top of the front cover with a screwdriver (see figure 1).
Remove the front cover with your hand holding both sides of the cover (see figure 2).
Remove the terminal cover to get access to the terminals by pushing a small flat screwdriver into the gap from
the front and push the tab toward the center to open the cover.
Pull the cover straight up (see figure 3).
Route the wires through the cutout in the base and mount the thermostat to the wall with two screws (see
figure 4).
Install the thermostat wire as necessary following the guide in Fig. 5. And tighten the screws.
»
For heating applications, use terminals #1 & #5
Install the two AAA batteries as shown in Fig. 5.
Replace the terminal cover. Replace the front cover onto the base.
Turn on power to the system for operation.
NOTE: See pages 89-91 for electrical sample schematics..
