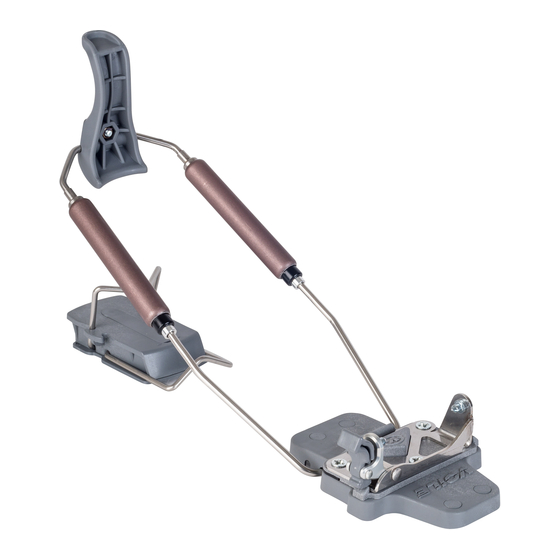

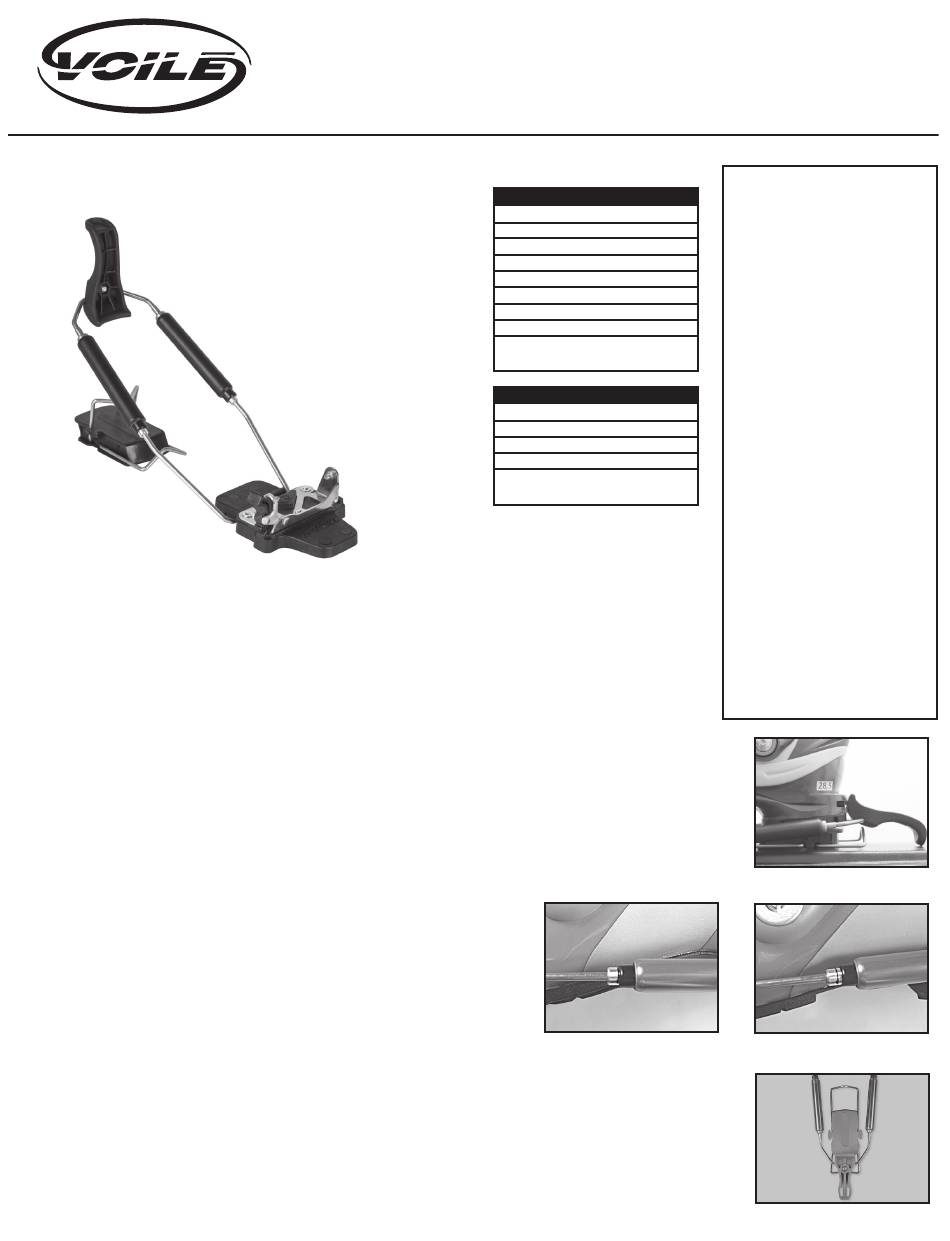

TTS Binding Instructions
PART No. 608-140 (Stiff), 608-145 (Tour), 608-147 (Tour LT)
WIRE POSITION IS FIXED ONCE MOUNTED!!! Confirm your boot sole length for desired
wire position (active or neutral) using the specs table above.
Voilé recommends an authorized dealer for all binding mounts. Mounting instructions are
written for shop technicians that have technical expertise in mounting telemark bindings.
Sizing:
Minimum thread engagement of the spring cartridges requires 10 full revolutions.
Correct adjustment of the heel lever will provide an audible snap when the lever is engaged. With
most boots, when the lever is not engaged it should make contact with the back of the boot heel.
(SEE FIGURE 1). To adjust the length of the heel assembly, simply spin the cartridges evenly
clockwise to tighten and counterclockwise to loosen.
At their minimum length the rod will bottom out on the back of the spring cartridge and begin
pushing out the silver colored spring rod. At this point you cannot make the heel assembly length
any shorter.
Checking the forward pressure:
boots, it is necessary to check the forward pressure of the heel-piece.
Release the heel lever from the boot. Note a scribed mark at the edge
of the plastic collar on the spring cartridge. (SEE FIGURE 2) Now
engage the heel lever and check the distance from the mark to the
back collar. the distance should be at least 1/8" or mm and no more
than 1/4" or 6mm to ensure optimal flex and heel retention. (SEE
FIGURE 3) The forward pressure may need to be readjusted after your
initial ski runs.
Tech Tips:
1.) Always make sure the Hardwire heel assembly is centered in the ski to maintain even pre-load of
the spring cartages. If the spring cartridges come out of adjustment, rotate clockwise to tighten and
counter clockwise to loosen, to bring the heel lever back to center. (SEE FIGURE 4)
2.) Before skiing, check the forward pressure to confirm you have an adequate load on the spring
cartridges for maximum performance. (REFER AGAIN TO FIGURE 3)
3.) Voilé recommends greasing the threaded ends of the rods at the end of each season to prevent
any corrosion or oxidation of the threads. This will maintain easy adjustment of the spring cartridges.
For best results, use marine grade anti-seize grease.
After you initially fit your
BOOT SOLE
LENGTH RANGE (mm)
TTS STIFF / TTS TOUR
NEUTRAL WIRE POSITION:
SMALL
250-275
280-310
MEDIUM
LARGE
315-355
ACTIVE WIRE POSITION:
SMALL
265-290
295-325
MEDIUM
LARGE
330-370
Boot sizes are only a general guideline and size
may vary between boot manufacturer.
TTS TOUR LT (LONG TRAVEL)
NEUTRAL WIRE POSITION:
MEDIUM
305-335
ACTIVE WIRE POSITION:
MEDIUM
320-350
Boot sizes are only a general guideline and size
may vary between boot manufacturer.
FIGURE 2
TTS
Telemark Touring Bindings
PARTS LIST
2
TTS 20mm Toe Risers
2
Wire/Cartridge
Assemblies
12
Riser Plugs
2
TTS Toe Pads
1
LEFT Tech Pin Assembly
1
RIGHT Tech Pin Assembly
2
Crampon Hooks with
alternative 1.5mm spacer
6
3/4" (19mm) Mounting
screws for Tech Pin Assembly
2
Dual LP Climbing Heels
2
Dual LP 2mm Spacers
2
55mm Climbing Wires
2
75mm Climbing Wires
12
5/8"(15mm) mounting screws
4
3/4" (19mm) Mounting
screws for heel pad
4
Flat washers for heel pad
screws
2
Dual LP Slot Plugs
FIGURE 1
FIGURE 3
FIGURE 4
