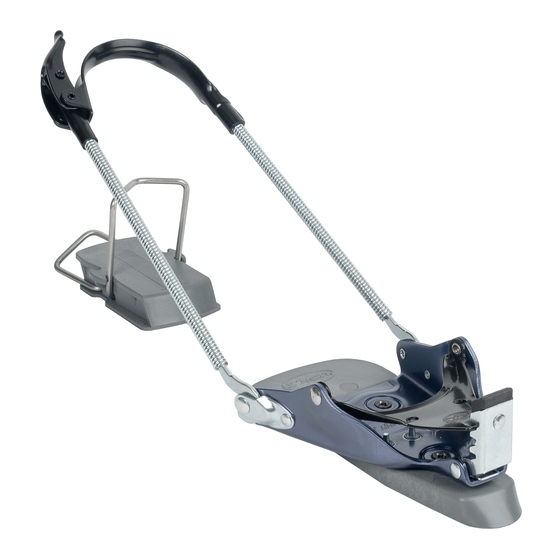

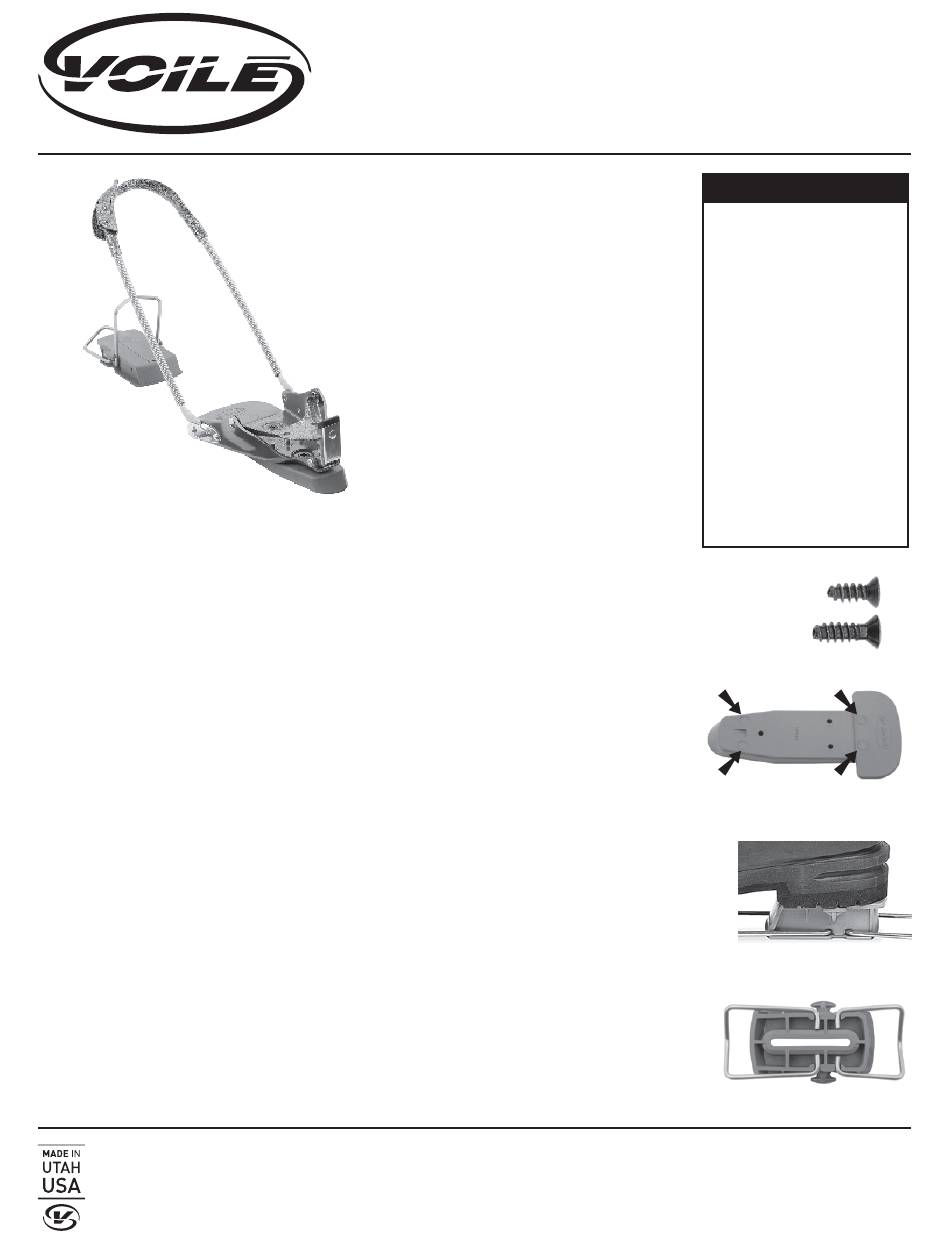

VOILE 3-PIN CABLE TRAVERSE Instructions

RISER AND TOE-PIECE MOUNTING
Consult the ski manufacturer for all mounting locations on skis.
Use the Voilé Hardwire Mounting Jig or the enclosed paper template. Follow the
instruction on the back of the paper template before drilling. Make sure the 3-Pin line
is intersecting the diamond shape on the jig or template. Check your drill bit depth
before drilling especially with narrow profile skis. Always follow the manufacturers
suggested guidelines.
Check the screw length to prevent "dimpling" the base, grind down the tips of the
screw if necessary. Using a 3.5 x 9mm bit, dill and clean any debris from holes. If your
ski has a metal laminate use a 4.1 x 9mm and remember to tap the holes before
mounting. Following the ski manufacturers suggested guidelines for adhesive, mount
the shim directly on the ski using wood glue or epoxy in each screw hole and the
shorter 5/8" screws. Press in four riser plugs before mounting the toe-pieces.(SEE
FIGURE 1) Now, mount the toe-pieces on each shim using the 3-hole pattern. Hand
tighten each screw on the toe-piece to prevent stripping out the shim holes and make
sure the binding is flush with the riser.
GLUE IS NOT NECESSARY AND EPOXY WILL COMPROMISE THE INTEGRITY OF THE PLASTIC SHIM.
DUAL LP HEEL PAD MOUNTING
Before drilling the heel, determine the heel pad position on both skis. First, measure
the sole of your boot from the center of the middle 3-Pin hole to the back edge of the
boot heel. Use this measurement to mark the distance from the 3-Pin Line measure-
ment mark on the ski to the heel pad position. Mount the heel pad so the round
contour on the back of the heel piece matches the back of the boot heel. (SEE FIGURE
2) Proper placement of the heel pad will center the climbing wires under your heels
and allow the heel assembly to be locked behind the heel pad during ascent/transport.
Making sure to place the 75mm wire in the front position, first, install the two climbing
wires to the Dual LP in the down position.(SEE FIGURE 3) It is easiest to install them
from the underside of the heel pad. Next, position the 2mm spacer under the Dual LP
heel pad.
3-PIN CABLE TRAVERSE
TELEMARK BINDINGS
2
2
2
2
4
2
2
2
14
4
4
2
8
1
TOE-PIECES &
TOE RAMPS (5/8")
HEEL PADS (3/4")
PARTS LIST
Toe Ramps
Toe-Pieces
(18mm) Dual LP
Climbing Heels
Dual LP Shims
Cables
Heel Pieces
75mm Climbing Wires
55mm Climbing Wires
(5/8"/16mm)
Posi-Drive Screws
(3/4" OR 19MM)
Posi-Drive Screws
Flat Washers for Heel
Pad Screws
Dual LP Slot Plugs
Riser Plugs
Paper Template
FIGURE 1
FIGURE 2
FIGURE 3
