Enduro

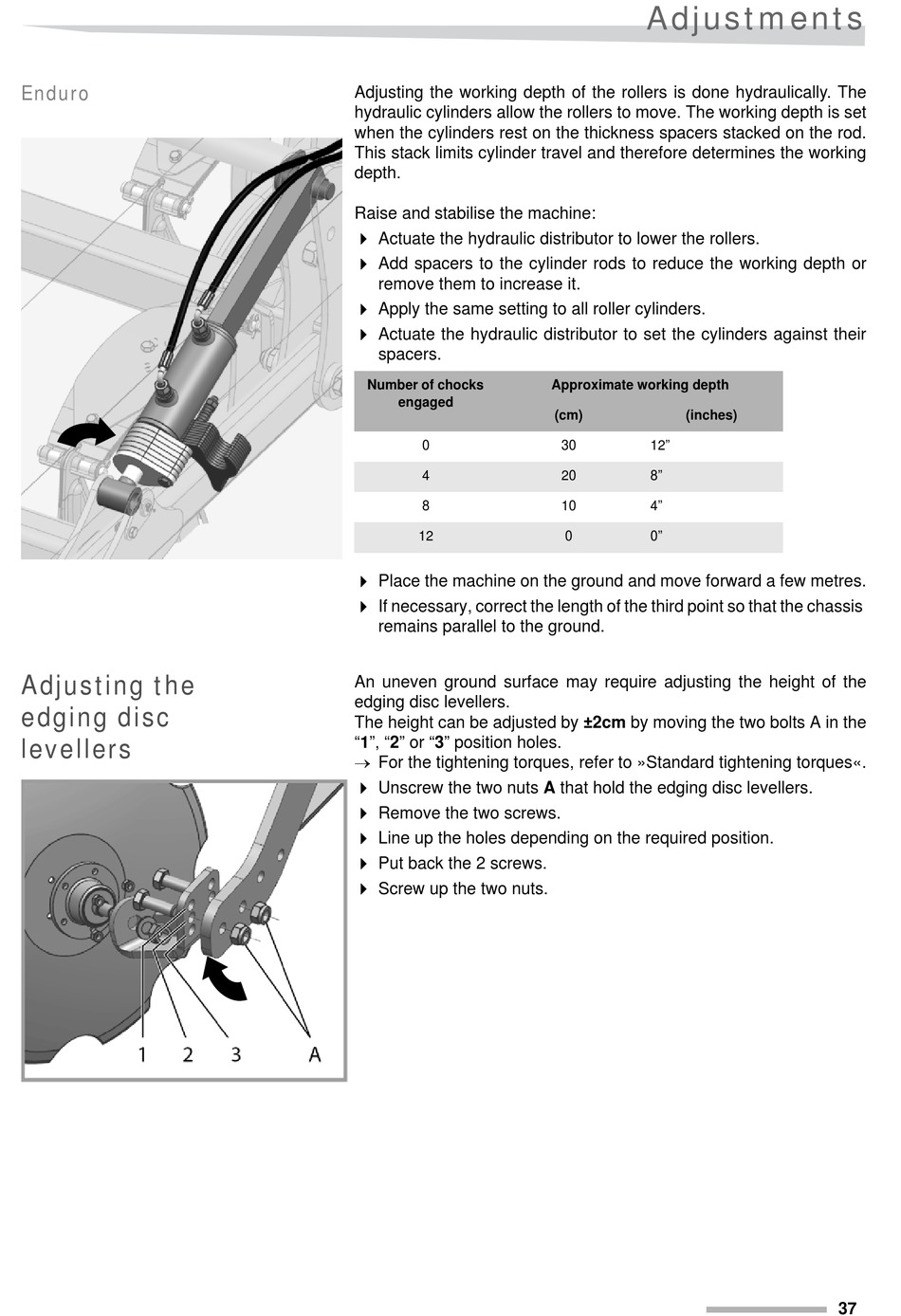

Adjusting the
edging disc
levellers
Adjusting the working depth of the rollers is done hydraulically. The
hydraulic cylinders allow the rollers to move. The working depth is set
when the cylinders rest on the thickness spacers stacked on the rod.
This stack limits cylinder travel and therefore determines the working
depth.
Raise and stabilise the machine:
 Actuate the hydraulic distributor to lower the rollers.
 Add spacers to the cylinder rods to reduce the working depth or
remove them to increase it.
 Apply the same setting to all roller cylinders.
 Actuate the hydraulic distributor to set the cylinders against their
spacers.
Number of chocks
engaged
0
4
8
12
 Place the machine on the ground and move forward a few metres.
 If necessary, correct the length of the third point so that the chassis
remains parallel to the ground.
An uneven ground surface may require adjusting the height of the
edging disc levellers.
The height can be adjusted by ±2cm by moving the two bolts A in the
"1", "2" or "3" position holes.
 For the tightening torques, refer to »Standard tightening torques«.
 Unscrew the two nuts A that hold the edging disc levellers.
 Remove the two screws.
 Line up the holes depending on the required position.
 Put back the 2 screws.
 Screw up the two nuts.
Adjustments
Approximate working depth
(cm) (inches)
30 12"
20 8"
10 4"
0 0"
37
