RND lab 355-00010 User Manual page 11

• Press the SAVE Button (F1) to save graph.
• Press the BACK Button (F4) to return.
Auto range
0
Rate: 0.2 s
Range: 0.01
SA VE

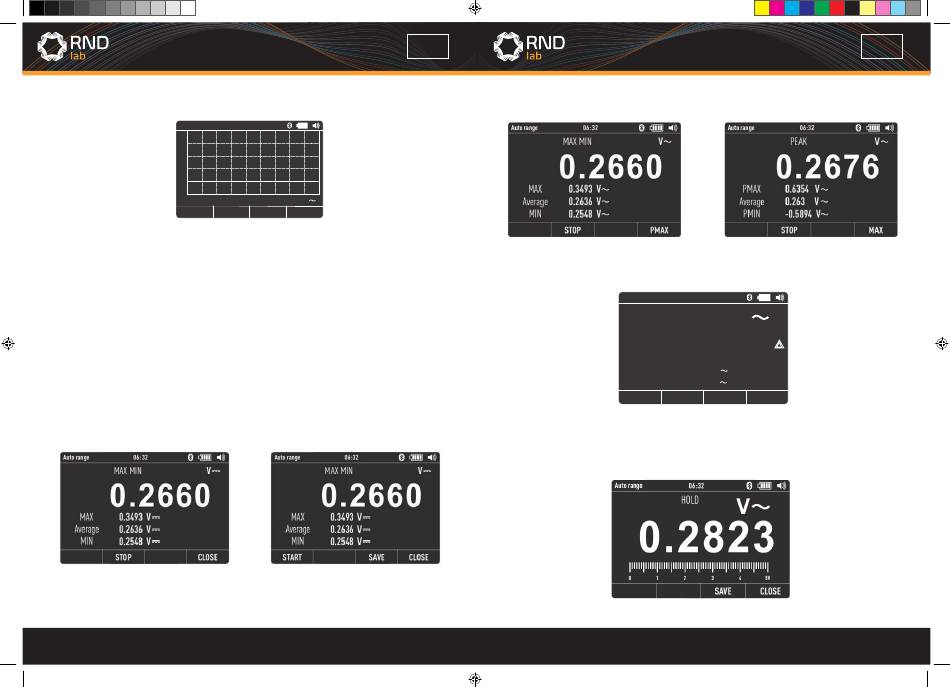

5-2.Capturing Minimum and Maximum Values
• To activate the MAX/MIN mode, Press MAX Button (F4) at measure mode.
• As shown in Figure, the Meter displays eat the top of the measurement page, and the
MAX/MIN start date and time along the bottom of the page.
• In addition, the recorded maximum, average, and minimum values appear in the
secondary display with their respective elapsed times.
• To stop a MAX/MIN recording session, press the STOP Button (F2).
• Thesummary information in the display freezes, and the softkeys change function to allow
saving the collected data.
• Pressing the CLOSE Button (F4) exits the MAX/MIN record session without saving the
collected data.
• To save the MAX/MIN screen data, the MAX/MIN session must be ended by pressing the
STOP Button (F2), Next, press the SAVE Button (F3).
20
EN
06:32
0.0000 V
BACK
5-3.Capturing Peak Values
To activate the peak mode, at AC measure MAX/MIN mode , Press the PMAX Button (F4).
5-4.Relative Values
To activate the relative mode, Press the HOLD/REL Button for greater that 1 second.
Auto range
-0 . 0430
Refe rence0 .3079 V
0.2649 V
GRAPH MODE
5-5.Hold Mode
• To freeze the display for any function, Press the HOLD/REL Button.
• Press the SAVE Button (F3) to memory and the CLOSE Button (F4) return measure.
06:32
REL
V
STOP
SA VE MAX
EN
21
