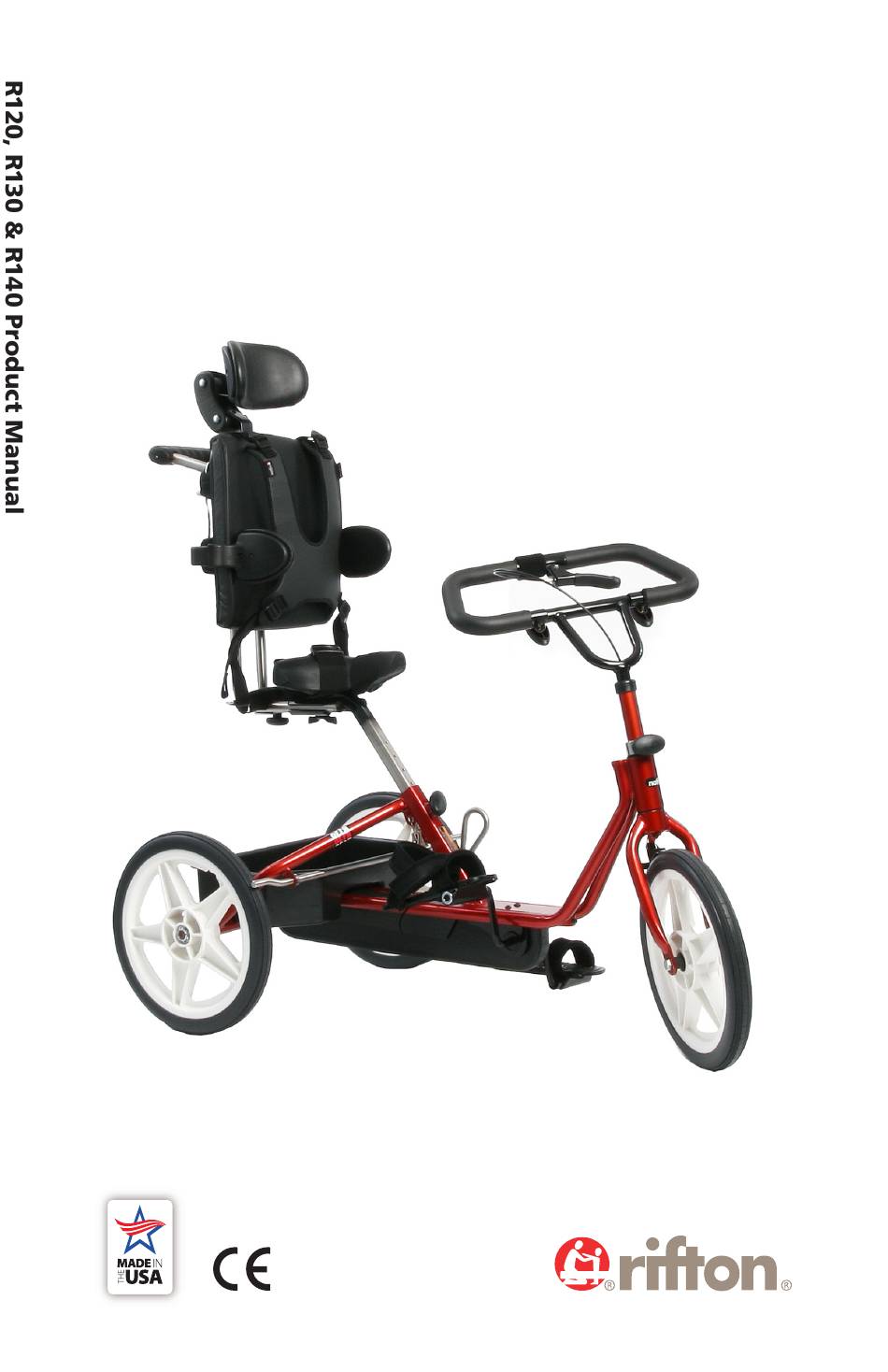

- Page 1 Tricycle R120, R130 & R140 Product Manual...
-
Page 2: Table Of Contents
Trunk support system Backrest pad Seat and parking brake Handlebar and handbrake Accessories Headrest and front guide bar Rear steering bar Abductor and communication tray Stationary stand Operation Maintenance and cleaning Warranty, materials and user modifications © 2021 Rifton Equipment... -
Page 3: Safety Messages
○ Immediately remove this product from use when any condition develops that might make operation unsafe. ○ Do not use Rifton components or products for any purpose other than their intended use. -
Page 4: Recommended Use And Item Dimensions
Recommended use The Rifton Tricycle is a Class 1 medical device. It can be used for therapeutic reciprocal exercise for maintaining of range of motion and strength, or for recreational purposes for children and adolescents with disabilities. Chain drive from pedals to rear wheel offers the following advantages: •... -
Page 5: Important Information And Check Your Order
Use this key to determine which sections of this product manual apply to you. Technical Users For professionals who order and set up Rifton products. Home Users For care-givers who use Rifton products on a regular basis. Maintenance Personnel For anyone who is responsible for service or re-ordering of Rifton products and parts. -
Page 6: Trunk Support System
Basic item Trunk support system To prevent falls, WARNING strangulation, head entrapment or other injuries: • Always use seatbelt and lateral supports when butterfly harness is in use. • Figure 6a: Ensure correct adjustment and positioning of the butterfly harness at each use. •... -
Page 7: Backrest Pad
the oval release buttons (F) to make any necessary adjustments to the lateral supports. 3. If desired, clip on butterfly harness (H) using the ring attachment points (D and I) and adjust strap lengths with strap adjusters (J). Backrest pad Attaching: Figure 7a: 1. -
Page 8: Handlebar And Handbrake
Recommended use: A straight handlebar Figures 8a and 8b: or loop handlebar can be used with your Rifton tricycle. Hand brake (C) allows the user to slow and stop the tricycle. Adjusting the straight handlebar: Figure 8a (straight handlebar) The handlebar height adjusts Figure 8a: ⅝... -
Page 9: Accessories
Accessories Headrest Three headrests are available Figure 9a: for use with the trunk support system only: flat, contoured and winged. Figure 9a Attaching: Press white oval button (A) and Figure 9b: insert metal headrest bar into slot. Release button to engage headrest and click into place. -
Page 10: Rear Steering Bar
Before attaching, check the size numbers on the short tube of the rear steering bar to ensure that the rear steering bar is the correct size for the tricycle (R120, R130, or R140). Attaching: If handlebar is in its lowest... -
Page 11: Abductor And Communication Tray
Abductor Recommended use: The abductor is for clients who require knee separation or abduction. Attaching: Place abductor onto tubes with Figure 11a: large end of bracket facing down. Bracket fits snugly onto slanted frame tubes. Figure 11a Communication tray To prevent falls and CAUTION injury, do not use the tray as a body support. -
Page 12: Stationary Stand
Lift the tricycle’s rear axle Figure 12c: into the correct notch on the stand. Use the lowest position for the R120 (small), the middle for the R130 (medium), and the highest for the R140 (large) Rifton Tricycle. Figure 12b... -
Page 13: Operation
Operation Adjust seat height so that the distance from seat to foot pedal approximates the key user dimension of the client’s inside leg length. The client’s extended leg should reach comfortably from seat to pedal when both feet and torso are strapped into place. Approximate the height of the trunk support system so it is appropriate for client’s seat to shoulder height (or adjust backrest height if used.) Approximate the optimal position for the handlebar, and make sure the handlebar is out of the way prior to transfer. -
Page 14: Maintenance And Cleaning
• Immediately remove this product from use when any condition develops that might make operation unsafe. • Do not use Rifton components or products for any purpose other than their intended use. • Replace or repair components or products that are damaged or appear to be unstable. -
Page 15: Warranty, Materials And User Modifications
Warranty Statement If a Rifton product breaks or fails in service during the first year, we will replace it free of charge. Materials • Steel hardware items (nuts, bolts, screws, etc) are typically zinc or nickel plated, or stainless steel. - Page 16 Use only replacement parts supplied by Rifton Equipment. We are glad to supply replacement parts. Although Rifton makes every effort to supply correct parts and instructions for repairing or refurbishing your equipment, you are responsible to make sure that the repairs or modifications are correctly and safely completed.
