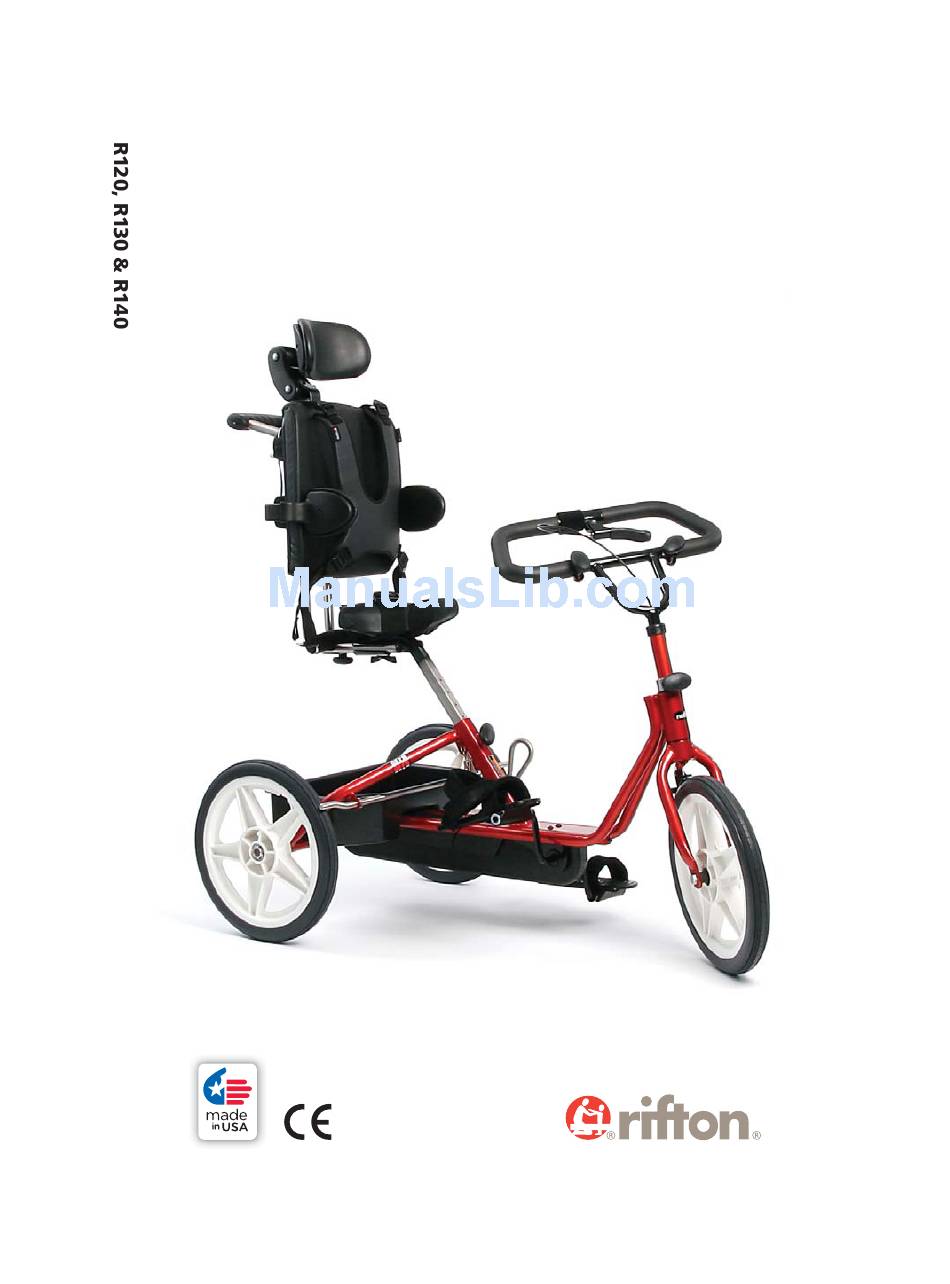

  • Page 1 Tricycle R120, R130 & R140 Product Manual ®...

  • Page 2: Table Of Contents

    Contents Check your order Warnings and important information Recommended use User and item dimensions Frame Trunk support system Backrest pad Seat Parking brake Handlebar and handbrake Accessories Headrest Rear steering bar Front guide bar Abductor Communication tray Stationary stand Maintenance Cleaning Materials User modifi...

  • Page 3: Check Your Order

    Maintenance personnel For anyone who is responsible for service or re-ordering of Rifton products and parts. Check your order Tricycle main frame, handlebar assembly, backrest assembly, front guide bar (if ordered), accessories for the tricycle, and this product manual ship together.

  • Page 4: Warnings And Important Information

    • The tricycle may not be appropriate for children with strong involuntary movements, poor body balance, or limited head control. IMPORTANT • Please save this product manual. Additional copies are available www.rifton.com • Please refer to the Rifton product catalog for our full warranty, or visit www.rifton.com...

  • Page 5: Recommended Use

    The ex tend ed leg should reach from seat to ped al comfortably when both feet and torso are strapped into place. Important: User’s weight must not exceed the maximum working load. Rifton Tricycles are not intended for children with strong refl exes or poorly developed trunk balance and head control. Consult your child’s therapist before ordering.

  • Page 6: Frame

    Absence of (E and F) and adjust strap lengths lateral supports may put pressure with strap adjusters (I). on the user's neck and pose a strangulation hazard. WARNING • This accessory is intended for use on Rifton tricycles only.

  • Page 7: Backrest Pad

    Backrest pad Attaching 1. Remove knob and clamp channel (A) below seat. 2. Slide backrest tubes out. 3. Turn backrest upright (see Figure 7a) and attach with clamp channel and knob (A) below seat. 4. Attach additional backrest pad if needed. Adjusting Figure 7a Backrest pad adjusts vertically 12"...

  • Page 8: Handlebar And Handbrake

    * Hand brake not available on small tricycle. Recommended use A conventional handlebar or loop handlebar can be used with your Rifton tricycle. Hand brake (C) allows the user to slow and stop the tricycle. Adjusting the loop handlebar Rotate handlebar toward or away from rider by loosening the two oval knobs (B).

  • Page 9: Accessories

    Accessories Headrest Two headrests are available for use with the trunk support system only. One is fl at the other contoured. Attaching Press white oval button (A) and insert Headrest bar metal headrest bar into slot (see Figure 9a). Release button to engage headrest and click into place.

  • Page 10: Rear Steering Bar

    (R120 Rustler, R130 Ranger, R140 Wrangler) Attaching Figure 10a 1. Attach the support bar (A) to the backrest tubes.

  • Page 11: Front Guide Bar

    Attaching 1. Loosen knob (A) to open clamp. Figure 11a 2. Attach front guide bar to handlebar as shown. WARNING 3. Tighten knob (A). • This accessory is intended for use on Rifton tricycles only.

  • Page 12: Abductor

    Bracket fi ts snugly onto slanted frame tubes (see Figure 12a). WARNING Figure 12a • This accessory is intended for use on Rifton tricycles only. Communication tray Recommended use The communication tray provides a surface for personal communication devices and other activities.

  • Page 13: Stationary Stand

    2. Lift the tricycle’s rear axle into the correct notch on the stand (see Figure Figure 13a 13b). Use the lowest position for the R120 (Rustler), the middle for the R130 (Ranger), and the highest for the R140 (Wrangler) Rifton tricycle. Note: The stand should be centered laterally on length of the rear axle (see Figure 13c).

  • Page 14: Maintenance

    Maintenance Periodically inspect for cracks, breaks, loose or missing parts, and/or malfunctions. Remove the product from service when any condition develops that might make operation unsafe. Chain is oiled in factory. If maintenance to chain is required, remove pan by pulling upward on the back of the pan, then remove screw from the side of the chain guard.

  • Page 15: Materials

    Materials • Steel hardware items (nuts, bolts, screws, etc) are typically zinc or nickel plated, or stainless steel. • Upholstery items (pads, support blocks, padded prompts, etc) are typically fi re-retardant polyurethane foam with a fi re-retardant cover made from expanded vinyl.
  • Page 16 Rifton NY 12471– 0260 To order replacement parts 1. Locate the serial number of the product on the small white label. 2. Have this number available when you call 800.571.8198 for your customer service representative. Use only replacement parts supplied by Rifton Equipment.

This manual is also suitable for:

R120R140Adaptive tricycle r120Adaptive tricycle r130Adaptive tricycle r140
