Large Tricycle (Wrangler)
R140 Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R140 and is the answer not in the manual?

Questions and answers

Related Manuals for Rifton R140

Summary of Contents for Rifton R140

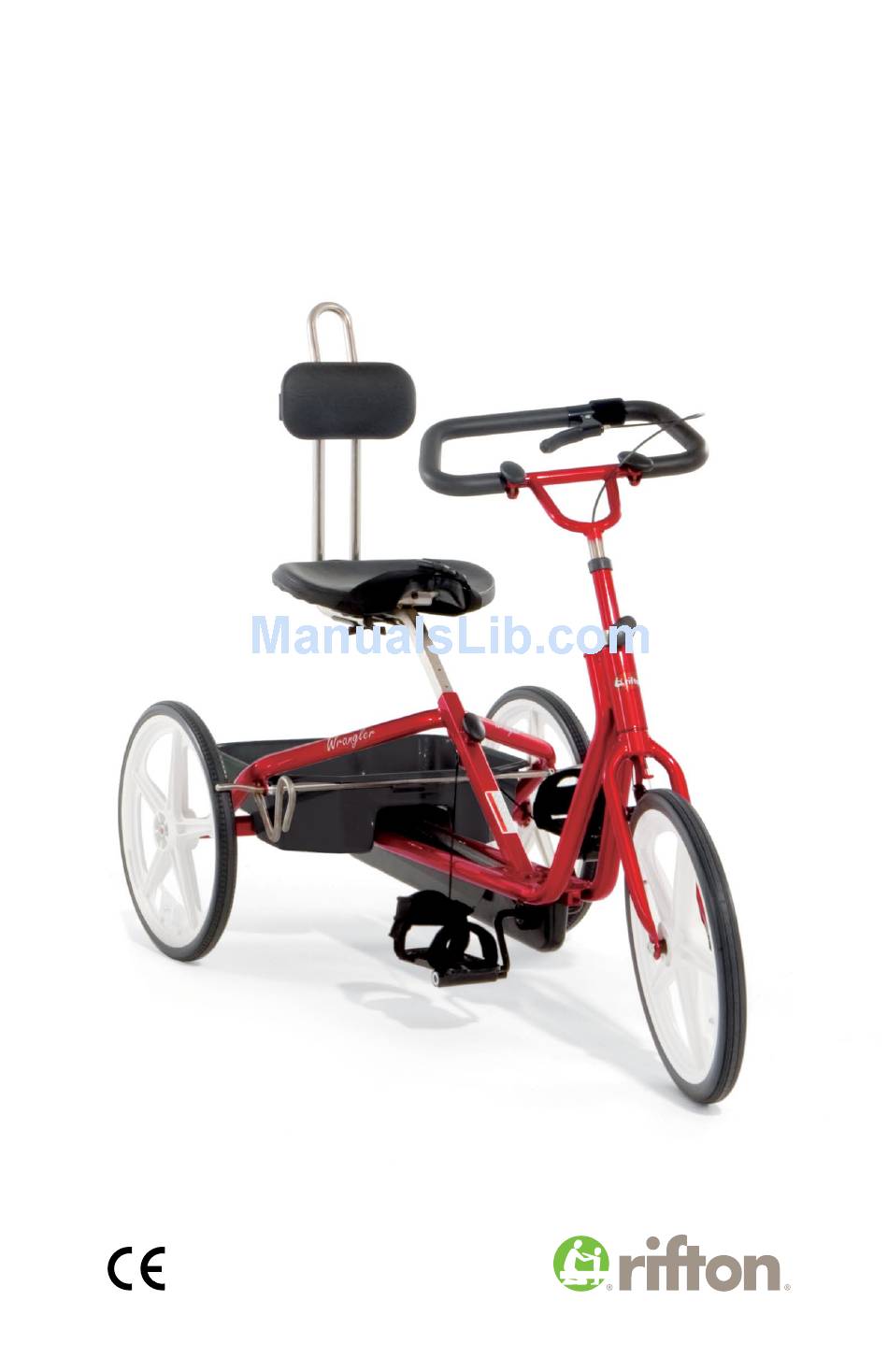

  • Page 1 Large Tricycle (Wrangler) R140 Product Manual...

  • Page 2: Table Of Contents

    Technical Users For professionals who order and set up Rifton products. Home Users For clients and care-givers who use Rifton products on a regular basis. Maintenance Personnel For anyone who is responsible for service or re-ordering of Rifton products and parts.

  • Page 3: Warnings And Important Information

    • Please save this Product Manual. Additional copies are available www.rifton.com • Please refer to the Rifton product catalog for our full warranty, or visit www.rifton.com To order replacement parts Locate the serial number of the product on the small white label.

  • Page 4: Recommended Use

    The extended leg should reach from seat to pedal comfortably when both feet and torso are strapped into place. Important: User’s weight must not exceed the maximum working load. Rifton Tricycles are not intended for children with strong reflexes or poorly developed trunk balance and head control. Consult your child’s therapist before ordering.

  • Page 5: The Frame

    The Frame Installing the Backrest Remove Clamp and Knob (A) below Seat, and remove Backrest Assembly completely. Turn Backrest Assembly upright as shown, attach with Clamp below Seat and tighten with Knob (A). An Additional Backrest Pad can be installed. Adjusting the Backrest Backrest adjusts vertically 12"...

  • Page 6: The Handlebar And Handbrake

    The Handlebar and Handbrake Recommended Use The Conventional Handlebar or the Loop Handlebar can be used with your Rifton Tricycle. The Handbrake is designed to allow the user to slow and stop the Tricycle. Installing the Handlebar Place Handlebar at desired height and secure with Knob (A).

  • Page 7: The Communication Tray

    Attach Tray to the Handlebar by loosen- • This accessory is intended for use ing the Tray Mount Knob (E) and placing on this Rifton Product. over the Handlebar in location shown. Tighten Knob (E) while holding the Tray at desired angle.

  • Page 8: The Trunk Support System

    Adjustments • This accessory is intended for use The arms adjust the width. Rotate toward on this Rifton Product. or away from the rider with (2) knobs (H). • Straps and supports are provided Height adjusts 12" vertically above seat for the safety of the user.

  • Page 9: The Abductor

    Bracket fits snugly onto slanted frame tubes. WARNINGS • This accessory is intended for use on this Rifton Product. The guide Bar Recommended Use The Guide Bar is for the care-giver to assist the patient in guiding and moving the Tricycle.

  • Page 10: Maintenance

    Maintenance Periodically inspect for cracks, breaks, loose or missing parts, and/or malfunctions. Remove the product from service when any condition develops that might make operation unsafe. Chain is oiled in factory. If maintenance to Chain is required, remove Pan by pulling upward on the back of the Pan, then remove Screw from the side of the Chain Guard.

  • Page 11: Cleaning

    Cleaning Clean Upholstery with soap and water or an imitation leather cleaner. Web Straps can be laundered, but beware of lint sticking to Velcro. Tray may be washed with a mild soap and water. Keep clamp (B) and knob dry. Wash Handgrips with soap and water.
  • Page 12 Contact info online Phone www.rifton.com 800.571.8198 sales@rifton.com 9–5 EsT Mail 800.85.7 Rifton Equipment PO Box 260 Rifton NY 12471– 0260...
