FTL2351
ANTILA
INSTALLATION GUIDE

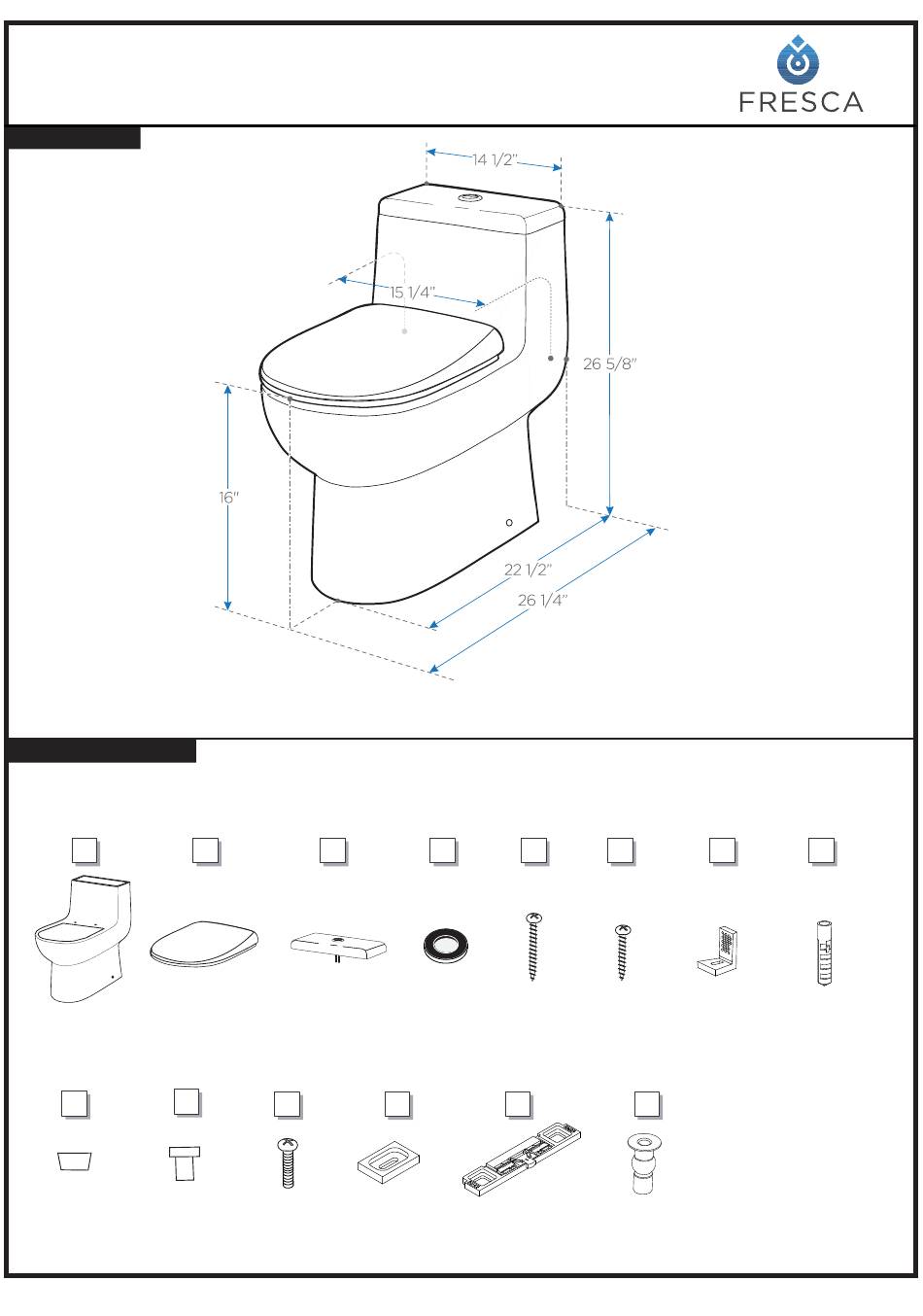

Dimensions
Note:
All dimensions are specifications are approximate and subject to change without notice.
Supplied Parts List
Please unpack and inspect all packages and components carefully,make sure they are complete.
Examine for shipping damage. If some parts are damaged or missing, notify your dealer immediately.
A
Toilet body
Toilet seat
x1
x1
J
I
Decoration cap
Plastic cover
x2
x2
©2014 Fresca ™ All rights reserved. This material may not be reproduced, displayed, modified or distributed without the express prior written permission of the copyright holder.
Your item may appear slightly different from the illustration
B
C
Tank cover
x1
K
Bolt
Plastic gasket
x2
x2
D
E
Flange
Screw
x1
x6
L
M
Hinge base
x1
F
G
Screw
Plastic bracket
x2
x2
N
Expansion rubber
x2
H
Expansible
plastic plug
x6
