Axiom Millennia M50 Owner's Manual

The Axiom Warranty
All our speaker models; towers, bookshelves, surrounds, centers, subwoofers and
all our amplifiers; subwoofer and multichannel amplifiers are warrantied against
manufacturer's defects for 5 years.
AXIOM CANADA INC. warrants this audio loudspeaker system (the "Product")
to be free from original manufacturing defects in materials and workmanship for
five years from date of purchase from an authorized Axiom dealer. This warranty
extends only to the original consumer purchaser. AXIOM CANADA INC. does
not warrant goods used in commercial or industrial applications. This warranty
does not cover any expenses incurred in any removal or re-installation of the
product.
If the product should prove so defective within the warranty period, return the
product by prepaid delivery to AXIOM CANADA INC., along with the original
sales invoice or other proof of purchase, which establishes eligibility for warranty
service. AXIOM CANADA INC. will, at its option, replace or repair the product
free of charge and return the product by prepaid delivery. This warranty does not
apply to any product, which has been damaged, misused, altered or repaired by
anyone other than an AXIOM CANADA INC. authorized service facility.
Any implied warranties including fitness for use and merchantability are limited
in duration to the period of the express warranties set forth above, and no person
is authorized to assume for Axiom Canada Inc. any other liability in connection
with the sale of the product. Axiom Canada Inc. expressly disclaims liability for
any incidental and consequential damages caused by the product. The remedies
provided under this warranty are exclusive and in lieu of all others.
This warranty gives specific legal rights. In addition, there may be other legal
rights arising from the sale of the product, which vary from province to province
or state to state. Some provinces / states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may
not apply in some areas.
Step-by-step instructions on configuring your floorstanding speakers.
Instructions, étape par étape, pour la mise en fonction de vos enceintes colonnes.
1. The Speakers: / 1. Les Enceintes:
Turn the speakers around and look at the back panel. You'll see a pair of 5-way
clear-plastic binding posts, to which you are going to connect the speaker
cables from your receiver or amplifier.
Each gold binding post has a colored ring around it-- RED is POSITIVE,
BLACK is NEGATIVE. Most receiver and amplifier manufacturers use this
color code and you should use it as well--it makes things a lot easier to hook
up your speaker cables.
You will also see a positive (+) sign engraved in the plastic beneath the RED
binding post, and a negative (-) sign beneath the BLACK post. Your amplifier
may or may not have these positive and negative symbols. If you wish, you can
use these symbols along with the color coding to guide you.
+++
Examinez le panneau arrière des enceintes. Vous y trouverez une paire de bornes
"5 façons" plaquées or auxquelles vous devrez connecter les câbles de haut-parleur
provenant de votre récepteur ou amplificateur.
Chaque borne est dotée d'une bague de couleur - ROUGE est le POSITIF et NOIR est le
NÉGATIF. La plupart des fabricants de composantes électroniques utilisent ce code
couleur et vous devriez le respecter. Il simplifie la connexion des câbles de haut-parleur.
Vous verrez également un symbole positif ( + ) gravé dans le plastique sous la borne
ROUGE et un symbole NÉGATIF ( - ) sous la borne NOIRE. Votre amplificateur n' e st
pas nécessairement doté de ces symboles positifs et négatifs. Ils sont complémentaires
aux codes couleur et vous aideront à respecter la polarité de vos connexions.
Model:
Enclosure:
Max Amp Power:
Min Amp Power:
Freq Resp +/-3dB (Hz):
Freq Resp +3dB- 9dB (Hz):
Impedance (Ohms):
SPL in Room 1w/1m (dB):
SPL Anechoic 1w/1m (dB):
X-Over
Tweeter:
Woofer:
Dimens. H W D (inches):
Dimens. H W D (mm):
Weight kg each:
Weight lbs each:

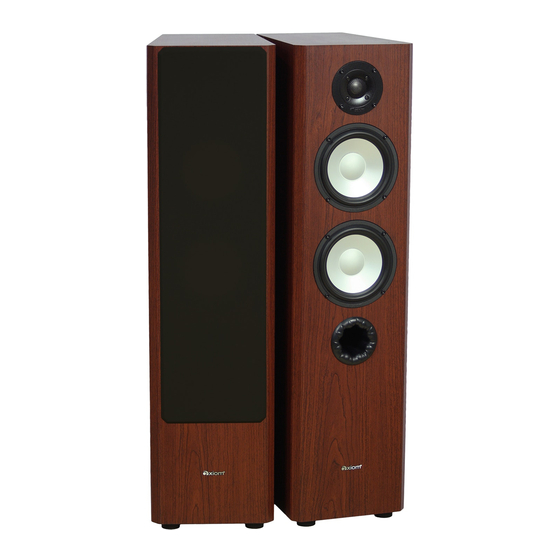

M50 Floorstanding Speakers
Owners Manual
M50
Dual Vortex
200 Watts Puissance maximale admissible :
10 Watts Puissance minimale :
39 - 22kHz Réponse en freq. +/- 3dB :
29 - 22kHz Réponse en freq. + 3dB/- 9dB :
8 Ohms Impédance :
93 dB Sensibilité en salle 1w/1m :
89 dB Sensibilité Anéchoïque 1w/1m :
2.2 kHz
Single 1" Transducteur d'aigu :
Dual 6.5" Transducteur de grave :
35.5" x 9.25" x 13" Dimensions HLP pouces :
902 x 235 x 330 Dimensions HLP mm:
17.373 kg Poids en Kilo chacun :
38.3 lbs Poids en lb chacun :
Modèle :
Clôture :
Filtre :
