The following instructions will help you
to connect your AMIQDM module.
For more detailed information on the AMX
switching system, please consult your AMX
Series Installer/User Guide.
About the AMIQDM module
The AMIQDM (dual port/multimedia) module
delivers real-time, high bandwidth video, stereo
audio (7 kHz) and serial data for KVM switching
up to 1,000 feet away from the server. It is
designed to support audio and serial data
transmission with the addition of an AMX5130
user station. The AMIQDM module features
dual UTP connections, enabling one computer
connection to be shared between two AMX
switches. The advanced technology provides
built-in memory and security, enabling you to
store server names and prohibit unauthorized
access to the server from the UTP cabling.
The AMIQDM module draws its power from the
server and supports Keep Alive functionality,
enabling your server to operate properly with or
without connectivity to the AMX switch. Keep
Alive functionality is suspended
during upgrade.
1

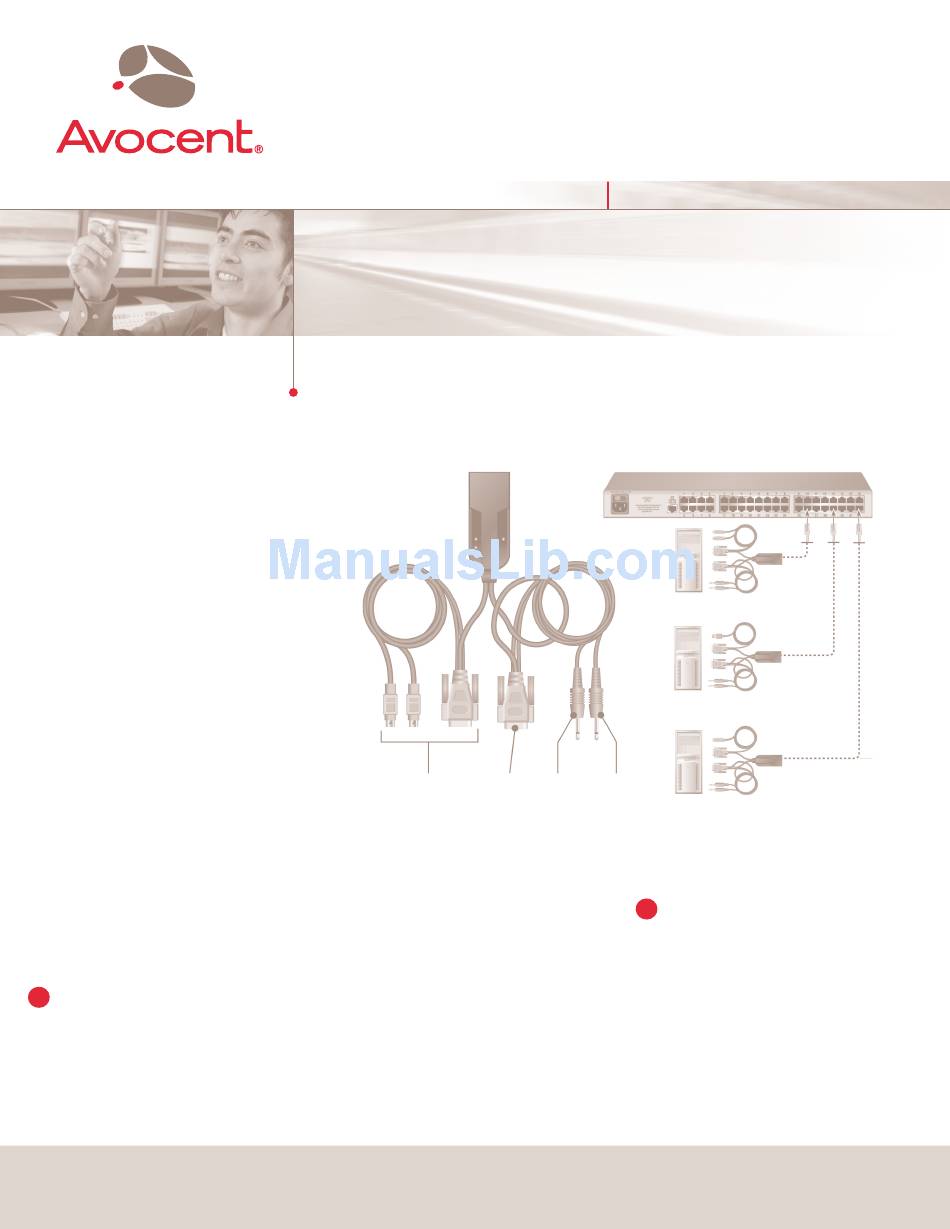

Connecting a server to the
AMIQDM module
If the server is not already powered down, do so
now. Connect the AMIQDM module VGA
monitor, keyboard and mouse connectors to the
appropriate ports on the back of the server.
To Contact Avocent Technical Support
Avocent, the Avocent logo, The Power of Being There and AMX are trademarks or registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2006 Avocent Corporation. All rights reserved.
Quick Installation Guide
AMIQDM Module
To connect an AMIQDM module
(See reverse side for dual port connectivity)
®
Keyboard, mouse
and video
NOTE: AMIQDM module audio and serial con-
nections can be left unconnected at the server
if the audio and/or serial functionality is not
required in your AMX switching system.
For serial and/or audio functionality, connect the
AMIQDM module serial connector to the serial port
and the audio connectors into the appropriately
labeled ports on the back of the server. Repeat this
procedure for each server to be connected to the
AMX switch. Now, power up the server. When the
server has completely powered up, proceed to the
next step.
CALL (888) 793-8763
The Power of Being There
Mic
Serial
Audio
(Line Out)
2
Connecting an AMIQDM module to the
AMX switch
Connect one end of a UTP cable into one of the
AMX switch numbered server ports and connect
the other end into either RJ-45 port of the AMIQDM
module. If you are using the dual port connectivity
mode and wish to attach this server to a second
AMX switch, see the instructions on the reverse side
of this Quick Installation Guide. If the AMX switch is
not already powered up, do so now.
VISIT www.avocent.com/support
®
AMX Switch
AMIQDM-PS2 Module
AMIQDM-USB Module
AMIQDM-VSN Module
DOWNLOAD www.avocent.com
590-488-501C
