Avocent AMIQ Quick Installation Manual

The following instructions will help you
connect your AMIQ module.
Should you require further assistance, please
contact Avocent Technical Support.
About the AMIQ module
The AMIQ module enhanced CAT 5 cable
design eliminates complex cabling connections
in your switching system. A single module
delivers real-time, high bandwidth video for
KVM switching up to 1,000 feet away from
the server. The AMIQ module's advanced
technology provides built-in memory and
security, enabling you to store server names and
prohibit unauthorized access to the server from
the CAT 5 cabling.
The AMIQ module draws its power from the
server and supports Keep Alive functionality,
enabling your server to operate properly with or
without connectivity to the AMX switch. Keep
Alive functionality is suspended during upgrade.
For additional information
For further instructions on hardware, software
and security configuration, please refer to the
AMX Series Installer/User Guide included with
the AMX switch.
Visit http://www.avocent.com/support for the
latest software and firmware updates.
Connecting a server to the AMIQ module
If the server is not already powered down, do so
now. Plug the AMIQ module KVM connectors
To Contact Avocent Technical Support
Avocent, the Avocent logo, The Power of Being There and AMX are registered trademarks of Avocent Corporation or its affiliates. ©2006 Avocent Corporation. All rights reserved.
Quick Installation Guide
AMIQ Module

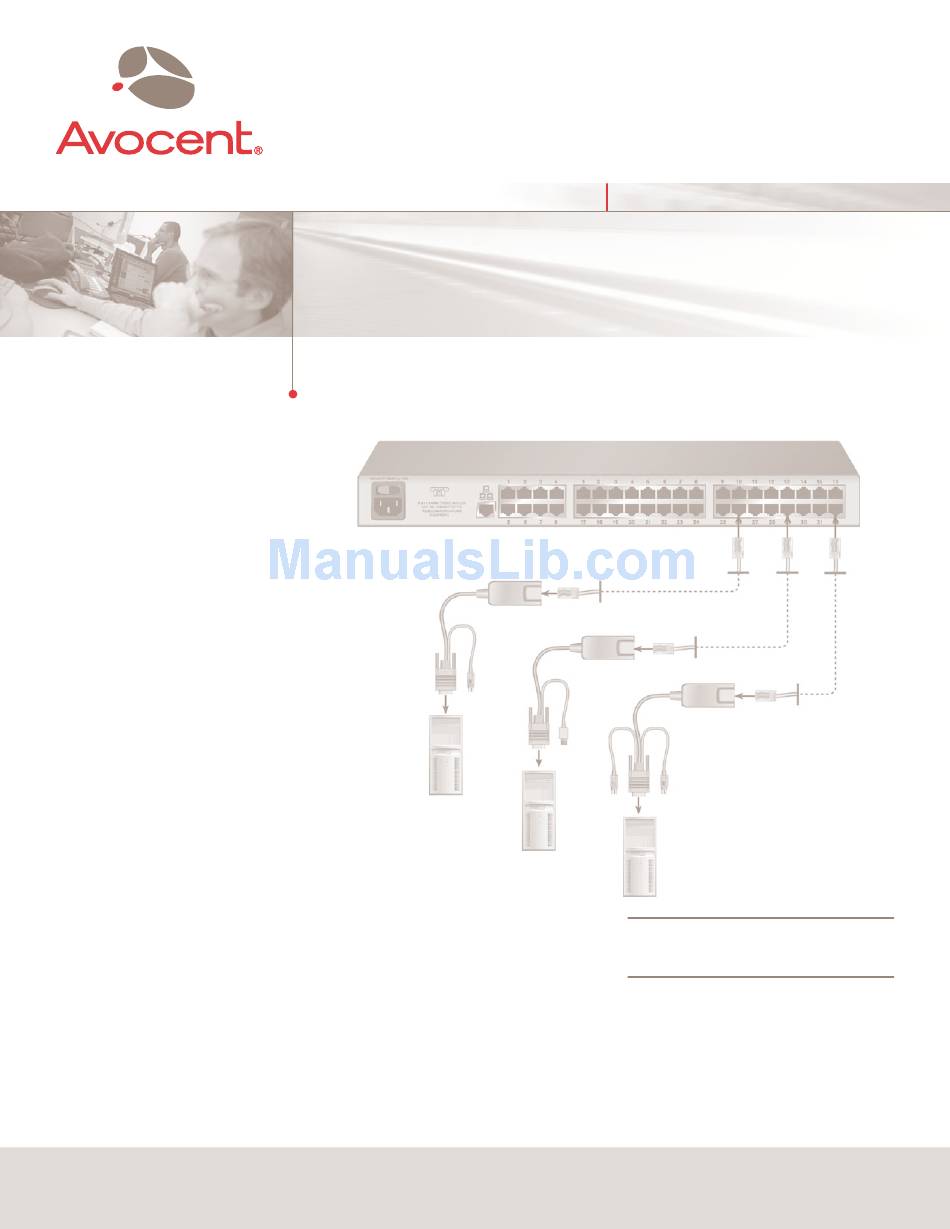

To connect an AMIQ module
®
AMX Switch
AMIQ module - Sun.
Server
HD15 and 13W3
versions available
into the appropriate ports on the server.
Now, power up the server. When the server has
completely powered up, proceed to the next step.
Connecting an AMIQ module to the
AMX switch
Connect one end of the CAT 5 cable to a server port
on the AMX switch and the other end into the AMIQ
module. If the AMX switch is not already powered up,
do so now.
Call (888) 793-8763 VISIT www.avocent.com/support
The Power of Being There
CAT 5 cable up to
1,000 feet from server
to AMX user station
AMIQ module - USB.
AMIQ module - PS/2.
Server
Server
IMPORTANT: Do not reboot the server during
the upgrade process.
Troubleshooting tips
If a server is unavailable, make sure that all servers
and components are powered up and all modules
are correctly attached. If operation is not restored,
test your connection with another AMIQ module,
or with another port on the AMX switch system.
®
CAT 5.
CAT 5
DOWNLOAD www.avocent.com
590-363-501D
