INSTALLATION AND OPERATION

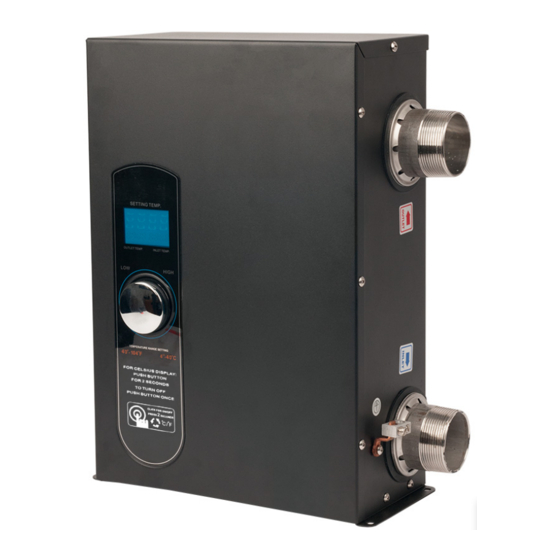

Electric Heater
MODELS
ELS 0005, ELS 0011,
ELS 0018, and ELS 0027
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids or other combustible materials in the vicinity of this or any other appliance.
To do so may result in an explosion or fire.
NOTE: The instructions in this manual are for the use of qualified individuals specially trained and experienced
in the installation and maintenance of this type of equipment and related system components. Installation and
service personnel are required by some states to be licensed. Persons not qualified shall not attempt to install,
service, or maintain this equipment.
This manual should be maintained in legible condition and kept adjacent to the electric heater or in a safe place
for future use.
IN REVIEW
MANUAL
UNCONTROLLED DOCUMENT IF PRINTED
4000856
Tested to UL Standard 1261
Effective: 01-06-21
Replaces: 05-01-19
P/N 241758 Rev. 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Raypak E3T ELS 0005
Summary of Contents for Raypak E3T ELS 0005
- Page 1 INSTALLATION AND OPERATION IN REVIEW MANUAL Electric Heater MODELS ELS 0005, ELS 0011, ELS 0018, and ELS 0027 4000856 Tested to UL Standard 1261 FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids or other combustible materials in the vicinity of this or any other appliance. To do so may result in an explosion or fire.
-
Page 2: Table Of Contents
IN REVIEW TABLE OF CONTENTS 1. WARNINGS ............3 9. ELECTRICAL CONNECTIONS ......6 2. WATER CHEMISTRY ..........4 10. OPERATION ............7 3. SAFETY INFORMATION ........4 11. CONTROL ..............8 4. OVERVIEW .............. 4 12. REMOTE OPERATION .......... 9 5. -
Page 3: Warnings
IN REVIEW WARNINGS Pay Attention to these Terms Indicates the presence of immediate hazards which will cause severe personal injury, death or substantial DANGER property damage if ignored. ndicates the presence of hazards or unsafe practices which could cause severe personal injury, death or WARNING substantial property damage if ignored. -
Page 4: Water Chemistry
SAFETY INFORMATION to your area. If you have any questions, please contact Pool water temperatures typically range from 78°F (26°C) your Authorized Dealer, or visit our website at www.raypak. to 82°F (28°C). The American Red Cross recommends UNCONTROLLED DOCUMENT IF PRINTED... -
Page 5: Before Installation
IN REVIEW 1-1/2" NPT inlet and outlet plumbing connections. BEFORE INSTALLATION • Models ELS 0018 and 0027 are supplied with Please read these instructions thoroughly and completely 2" NPT inlet and outlet plumbing connections. before installation and before use. Failure to do so could •... -
Page 6: Freeze Protection
IN REVIEW CHECK VALVE TO SPA/POOL FILTER CHLORINATOR PUMP BYPASS (CUSTOMER INSTALLED) DRAIN VALVE (CUSTOMER INSTALLED) GATE VALVE FROM SPA/POOL F10545 Figure 1. Spa/Pool Installation Diagram FREEZE PROTECTION WARNING: Serious bod ily injury or death could occur if you ignore shutting off all power to the heater at If the heater is installed in a location subject to freezing the fuse or breaker box. -
Page 7: Operation
IN REVIEW MODEL ELS 0005 MODEL ELS 0011 MODEL ELS 0018 MODEL ELS 0027 E1 & E2 GRND GRND GRND GRND DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE POLE POLE POLE POLE POLE POLE POLE BREAKER BREAKER BREAKER BREAKER BREAKER BREAKER BREAKER Figure 2. -
Page 8: Control
IN REVIEW 11. CONTROL Digital Control Temperature Setting Turn the control knob to set your desired temperature. The heater comes with a digital temperature control When the set tempera ture is reached the heater will go to located in the front panel that can be set from idle and the elements will not draw power. -
Page 9: Remote Operation
IN REVIEW 12. REMOTE OPERATION Remote Control (On-Off) The heaters are equipped to work with external remote 1. Turn on power to the heater. controls. The unit can be connected to either a toggle 2. For a remote control without its own sensor, set the switch or the switch contacts of a third party remote. - Page 10 IN REVIEW 150K Inlet/Outlet Sensor, All Models 10K Sensor for Model 0027 Element 3 Only Temp ºF/ºC Resistance Ω Temp ºF/ºC Resistance Ω 32 (0) 491399.3 32 (0) 31537 41 (5) 384009.2 41 (5) 24783 50 (10) 303720 50 (10) 19587 59 (15) 242375.9...
-
Page 11: Troubleshooting
IN REVIEW 13. TROUBLESHOOTING Problem Cause Solution 1. Check filter, skimmer basket, pump. 2. If a 2-speed pump is used, turn to high speed. Low flow 3. Press and hold the knob for 5-seconds. Make sure Nothing happens when the the flow rate displayed on screen is at least 15 gpm thermostat is turned on. -
Page 12: Wiring Diagrams
IN REVIEW 14. WIRING DIAGRAMS ELEMENT 2 [SIZE 0011 ONLY] HIGH LIMIT 2 ELEMENT 1 HIGH LIMIT 1 F1 —250V/1A FLOW SENSOR AC POWER SUPPLY TRANSFORMER WATER OUTLET, 150 kOhm 240VAC 1-PH 60 Hz WATER INLET, 150 kOhm REMOTE CONTROL WIRE Figure 6. -
Page 13: Illustrated Parts List
IN REVIEW 15. ILLUSTRATED PARTS LIST MODELS ELS 0005 and ELS 0011 MODELS ELS 0018 and ELS 0027 UNCONTROLLED DOCUMENT IF PRINTED... - Page 14 IN REVIEW PART DESCRIPTION ELS 0005 ELS 0011 ELS 0018 ELS 0027 Heating Element (Includes O-Ring) 017139F 017139F 017140F 017140F Inlet Thermistor (Includes O-Ring) 017141F Transformer 240V 60hZ 017178F 017178F Water Sensor (Inlet & Outlet) 017161F 017161F 017161F 017161F High Limit Manual Reset 017143F 017143F 017144F(2)
-
Page 15: Warranty
SCOPE OF WARRANTY Raypak, Inc. (Raypak) warrants to the original owner that the above model gas pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. - Page 16 Warranty to apply. This Limited Warranty is VOID if the Heater is repaired or altered in any way by ANY persons or agencies other than those authorized by Raypak. Raypak reserves the right at all times to inspect, or require the return of, the defective Heater or component part and to verify warranty coverage at its factory...
- Page 17 IN REVIEW ISO 9001 REGISTERED QUALITY MANAGEMENT SYSTEM www.raypak.com Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 Fax (805) 278-5468 Litho in U.S.A. UNCONTROLLED DOCUMENT IF PRINTED...
