INSTALLATION AND OPERATION

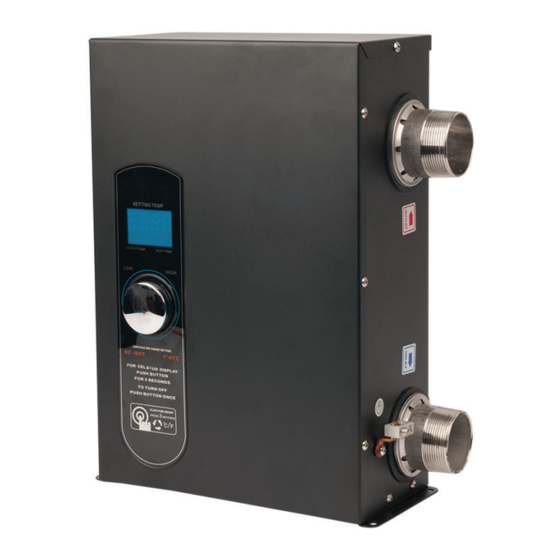

Electric Heater
MODELS
SPA ELS 0005 and ELS 0011
POOL ELS 0018 and ELS 0027
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
liquids or other combustible materials in the vicinity of this or any other appliance. To
do so may result in an explosion or fire.
NOTE: The instructions in this manual are for the use of qualified individuals specially trained and experienced
in the installation and maintenance of this type of equipment and related system components. Installation and
service personnel are required by some states to be licensed. Persons not qualified shall not attempt to install,
service, or maintain this equipment.
This manual should be maintained in legible condition and kept adjacent to the heat pump pool heater or in a
safe place for future use.
CATALOG NO. 6100.63A
MANUAL
Effective: 11-01-18
Tested to UL Standard 1261
Replaces: 10-01-18
4000856
P/N 241758 Rev 2
Advertisement
Table of Contents
Related Manuals for Raypak E3T Series
Summary of Contents for Raypak E3T Series
- Page 1 INSTALLATION AND OPERATION MANUAL Electric Heater MODELS SPA ELS 0005 and ELS 0011 POOL ELS 0018 and ELS 0027 4000856 Tested to UL Standard 1261 FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids or other combustible materials in the vicinity of this or any other appliance. To do so may result in an explosion or fire.
-
Page 2: Table Of Contents
CONTENTS 1. WARNINGS ..............3 2. WATER CHEMISTRY ........... 4 3. SAFETY INFORMATION ..........4 4. OVERVIEW ..............4 5. BEFORE INSTALLATION ..........5 6. INSTALLATION ............. 5 7. WATER CONNECTION ..........5 8. ELECTRICAL CONNECTIONS ........7 9. OPERATION ..............8 10. -
Page 3: Warnings
WARNINGS Pay Attention to These Terms Indicates the presence of immediate hazards which will cause severe personal injury, death or substantial DANGER property damage if ignored. ndicates the presence of hazards or unsafe practices which could cause severe personal injury, death or WARNING substantial property damage if ignored. -
Page 4: Water Chemistry
Further advice should be obtained from your pool or spa If you have any questions, please contact your Authorized builder, accredited pool shop, or chemical supplier for the Dealer, or visit our website at www.raypak.com. correct levels for your water. READ AND FOLLOW ALL INSTRUCTIONS GIVEN IN THIS MANUAL. -
Page 5: Before Installation
• Pool models (ELS 0018 and 0028) are supplied with BEFORE INSTALLATION 2" NPT inlet and outlet plumbing connections. Please read these instructions thoroughly and completely • All models are rated 240V single phase. before installation and before use. Failure to do so could •... - Page 6 RAIN WATER RUN OFFS. The unit is designed to operate outdoors and can be exposed to rain. However, rain water run-off falling directly onto the unit from a roof can cause damage and/or shorten the life of your unit. This may also void your warranty. Install rain gutters or rain diverters on your roof if the unit is installed in a position where contact with rain run-off may occur.
-
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS Failure to do so could result in property damage and/or WARNING: Please read these instructions thoroughly personal injury, and void your warranty. and completely before installation and before use. Failure to do so could cause property damage or serious personal NOTE: The Canadian Electrical Code generally requires injury, or death and void your warranty. -
Page 8: Operation
SPA 0005 SPA 0011 POOL 0018 POOL 0027 GRND GRND GRND GRND DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE POLE POLE POLE POLE POLE POLE POLE BREAKER BREAKER BREAKER BREAKER BREAKER BREAKER BREAKER Figure 2. Wire Connection to Circuit Breakers OPERATION Once the spa/pool heater is installed, it can be used year round. - Page 9 10K Sensor for 150K Inlet/Outlet Sensor POOL 0027 Models only Temp oF/oC ResistanceΩ Temp oF/oC ResistanceΩ 32 (0) 491399.3 32 (0) 31537 41 (5) 384009.2 41 (5) 24783 50 (10) 303720 50 (10) 19587 59 (15) 242375.9 59 (15) 15568 68 (20) 191172 68 (20)
-
Page 10: Troubleshooting
11. TROUBLESHOOTING Problem Cause Solution Nothing happens when the thermostat Low flow............1. Check filter, skimmer basket, pump. is turned on 2. If a 2-speed pump is used, turn to high speed. 3. Press and hold the knob for 5 seconds. -
Page 11: Wiring Diagrams
12. WIRING DIAGRAMS HEATER2 HI-LIMIT 2 HEATER1 HI-LIMIT 2 F1 250V/1A AC POWER SUPPLY FLOW SENSOR TRANSFORMER WATER INLET WATER OUTLET REMOTE CONTROL WIRE Figure 4. Spa Wiring Diagram HEATER3 HI-LIMIT 3 HEATER2 HI-LIMIT 3 HEATER1 HI-LIMIT 3 F1 250V/1A TRANSFORMER AC POWER SUPPLY FLOW SENSOR... - Page 12 Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 (805) 278-5300 Fax (805) 278-5468 Litho in U.S.A.
