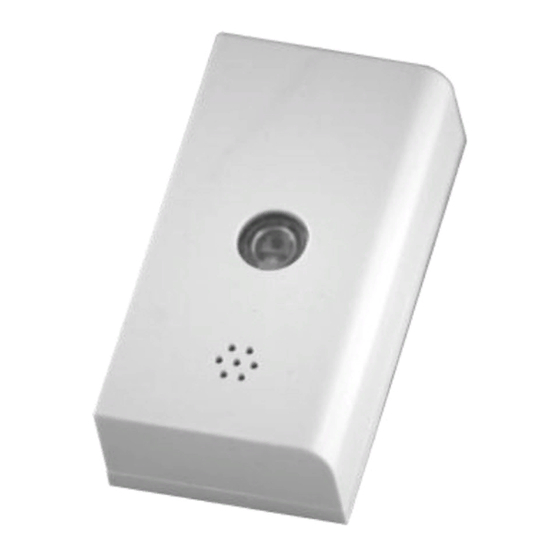

- Page 1 Temperature and humidity ZigBee™ sensor ZHUM User Manual Revision: 1.0 Document : UM_ZHUM_20140422_001_01_00 S.A. au capital de 167 200 € R.C.S. Saint Brieuc TGI 450 570 767 Siège social : 3 rue Thomas Edison 22300 Lannion France Tél. : +33 (0) 2 96 48 68 18 – Fax : +33 (0) 2 96 48 19 11...
-
Page 2: Warranty
In order to invoke the warranty, the buyer must immediately send written notice to CLEODE of the flaws that it attributes to the device. It must enable CLEODE to have access to the device to observe these defects and repair them. The warranty provided by CLEODE is strictly limited to the equipment provided and shall only have for effect the replacement or repair, at CLEODE’s expense, on its own premises, of all devices or parts that are not... -
Page 3: Table Of Contents
........................ 11 HANGE BATTERIES III.2 S ZHUM ........................... 13 TART III.3 R ................... 13 ESTART OF THE ASSOCIATION PHASE III.4 R ............................14 ESET IV TECHNICAL FEATURES ......................15 REPAIR AND MAINTENANCE ...................... 16 UM_ZHUM_20140422_001_01_00.doc CLEODE Page 3 of 17... -
Page 4: Table Of Revisions
ZHUM – User Manual ABLE OF REVISIONS Version Authors(s) Version description Date CLEODE Initiale version 03/11/2014 CLEODE Approbation 03/12/2014 UM_ZHUM_20140422_001_01_00.doc CLEODE Page 4 of 17... -
Page 5: Reference Documents
ZHUM – User Manual EFERENCE DOCUMENTS N° Document Description ZigBee_Cluster_Library_Public Specification of the Zigbee Cluster Library ZigBee_Home_Automation_Profile Specification of the Home Automation profile ZigBee_Specification Specification of the ZigBee standard UM_ZHUM_20140422_001_01_00.doc CLEODE Page 5 of 17... -
Page 6: I Introduction
I.2 C OPYRIGHT The CLEODE trademark and the CLEODE logo are properties of CLEODE SA, France. This document also refers to trademarks and other product names that are registered trademarks of their respective owners. Copyright © 2009 CLEODE SA. All rights reserved. -
Page 7: Humidity And Temperature Sensor Description
The ZHUM contains an application type Temperature sensor defined in the standard Home Automation (Cf. document [2]). This ZigBee™ object is compliant with ZigBee PRO ™ 2007 and Home Automation profile standard. For more details on the data exchanged, please refer to the documents [1], [2] and [3]. - Page 8 This cluster is used to report an alarm. In the case of the ZHUM the only alarm treated concern the level of battery voltage. If the level is too low (<2.4 V) the AlarmCount attribute is set to 1 and an alarm message is sent. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 8 of 17...
- Page 9 After 2 minutes if the temperature has changed by more than 1% Configuration settings report (min time, max time, temperature change report) is fully configurable by the user MeasuredValue : humidity measured % * 100. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 9 of 17...
-
Page 10: Installation And Network Association
Mark the position of the holes and drill the wall taking into account your fixing system (ankle + screws). Insert the dowels into the holes previously drilled. Position the bracket to the ZHUM then tighten the screws as pictured. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 10 of 17... -
Page 11: Iii.1.3 Change Batteries
The ZHUM is powered by a button battery (CR2032) in the battery holder on the back of the card. To replace the battery, follow these instructions. Open the case as shown in the picture. Turn the ZHUM once opened. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 11 of 17... - Page 12 At that time the ZHUM restarts. If it was associated with a network before shutting it will try to join the network. Otherwise, he was never associated it will search for an available network Close the case of the ZHUM. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 12 of 17...
-
Page 13: Iii.2 Start Zhum
If the association is successful, the led of the ZHUM flashing during 2 seconds then turns off. If the light does not flash ZHUM after making a long supports 3 seconds, this means it is already attached to a network . UM_ZHUM_20140422_001_01_00.doc CLEODE Page 13 of 17... -
Page 14: Iii.4 Reset
III.4 R ESET If necessary, the user can reset the ZHUM . To do this, he must press the button for 5 seconds . When ZHUM reset, the LED flashes twice then turns off. UM_ZHUM_20140422_001_01_00.doc CLEODE Page 14 of 17... -
Page 15: Technical Features
± 3% (max), 0-80 % RH ± 0,4°C (max), -10 à 85°C Life > à 1 an Radio range 100 m free field 20 m en indor 16 channels ZigBee™ (2.405 à 2.480 GHz) Managed channels (frequency) UM_ZHUM_20140422_001_01_00.doc CLEODE Page 15 of 17... -
Page 16: Repair And Maintenance
ZHUM – User Manual EPAIR AND AINTENANCE Defective hardware will be returned to the premises of CLEODE accompanied by: • A copy of the delivery • A detailed description of its appearance dysfunction observed The average maintenance time is four (4) weeks from the back to the factory. - Page 17 ZHUM – User Manual All support requests should be directed to the following address or by email to support@cleode.com: CLEODE S.A. Support and Maintenance 3, rue Thomas Edison 22300 Lannion Tél : +33 (0) 2 96 48 68 18 Fax : +33 (0) 2 96 48 19 11 E-mail : support@cleode.com...
