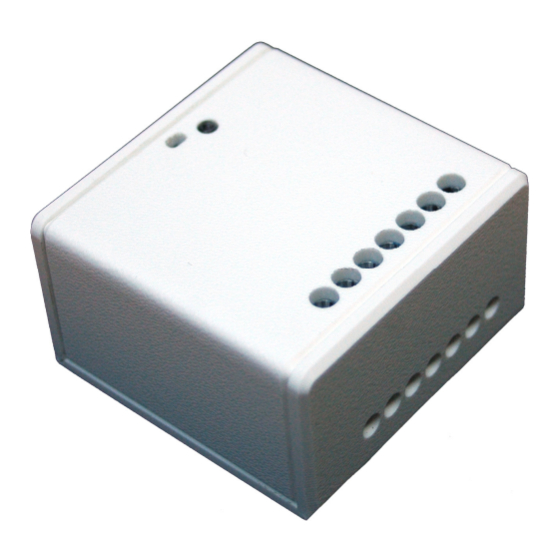

- Page 1 Command of electric heater by wire pilot ZigBee™ ZPILOT User Manual Revision: 1.0 Document: UM_ZPILOT_20120903_001_01_00 S.A. au capital de 167 200 € R.C.S. Saint Brieuc TGI 450 570 767 Siège social : 8 rue Bourseul 22300 Lannion France Tél. : +33 (0) 2 96 48 68 18 – Fax : +33 (0) 2 96 48 19 11...
-
Page 2: Warranty
In order to invoke the warranty, the buyer must immediately send written notice to CLEODE of the flaws that it attributes to the device. It must enable CLEODE to have access to the device to observe these defects and repair them. The warranty provided by CLEODE is strictly limited to the equipment provided and shall only have for effect the replacement or repair, at CLEODE’s expense, on its own premises, of all devices or parts that are not... -
Page 3: Table Of Contents
OUBLE SIDED TAPE INSTALLATION III.1.2 ........................... 11 ONNECTING III.2 ZPILOT......................13 TARTING UP III.3 .................. 13 ESTART OF THE ASSOCIATION PHASE III.4 ............................14 ESET TECHNICAL FEATURES ........................ 15 REPAIR AND MAINTENANCE ...................... 16 UM_ZPILOT_20120903_001_01_00 CLEODE Page 3 sur 17... -
Page 4: Table Of Revisions
Command of electric heater by wire pilot ZigBee™ – User Manual ABLE OF REVISIONS Version Authors(s) Version description Date CLEODE Initial version 27/08/2012 CLEODE Validated document 03/09/2012 UM_ZPILOT_20120903_001_01_00 CLEODE Page 4 sur 17... -
Page 5: Reference Documents
Command of electric heater by wire pilot ZigBee™ – User Manual EFERENCE DOCUMENTS N° Document Description ZigBee_Cluster_Library_Public Spécification de la Zigbee Cluster Library ZigBee_Home_Automation_Profile Spécification du profile Home Automation ZigBee_Specification Spécification de la norme ZigBee UM_ZPILOT_20120903_001_01_00 CLEODE Page 5 sur 17... -
Page 6: Iintroduction
Copyright The CLEODE trademark and the CLEODE logo are properties of CLEODE SA, France. This document also refers to trademarks and other product names that are registered trademarks of their respective owners. Copyright © 2009 CLEODE SA. All rights reserved. -
Page 7: Zpilot Description
Comfort – 2°C Economic Frost protection II.2.1 Heating unit application description Device ID: On/Off output Endpoint number: 1 Clusters: Server Client Basic (0x0000) Identify (0x0003) Groups (0x0004) Scenes (0x0005) On/Off (0x0006) Pilot Control (0xFC01) UM_ZPILOT_20120903_001_01_00 CLEODE Page 7 sur 17... -
Page 8: Ii.2.2 Clusters Description
IdentifyTime attribute value, the user asks the device to blink the light, during a number of seconds specified by this value. Attribute Attribute ID IdentifyTime 0x0000 Cluster Groups: This cluster allows storing the name of the groups to which the ZPILOT belongs. Attribute Attribute ID NameSupport 0x0000 UM_ZPILOT_20120903_001_01_00 CLEODE Page 8 sur 17... - Page 9 The attribute Mode allows to know the order emitted on the wire pilot. This cluster is a cluster owner to the company CLEODE. To modify this value, the writing must be made by using to manufacture code CLEODE = 0x10B9.
- Page 10 0x00 followed by the mode in which you wish to place your electric heater. So that the mode is taken into account by the ZPILOT the value of the cluster ON/OFF must be put to ON. UM_ZPILOT_20120903_001_01_00 CLEODE Page 10 sur 17...
-
Page 11: Installation And Network Association
To connect the ZPILOT, follow the procedure this below. Connect the supply of the ZPILOT as indicated below. Attention: Shut down the power supply before any intervention and it till the end the manipulations. UM_ZPILOT_20120903_001_01_00 CLEODE Page 11 sur 17... - Page 12 Command of electric heater by wire pilot ZigBee™ – User Manual Connect the wire pilot on the ZPILOT. UM_ZPILOT_20120903_001_01_00 CLEODE Page 12 sur 17...
-
Page 13: Iii.2 Starting Up Zpilot
III.3 Restart of the association phase If the ZPILOT is not associated, the user can ask him at any time to join a network. For this, the user has to press during 3 seconds on the button. UM_ZPILOT_20120903_001_01_00 CLEODE Page 13 sur 17... -
Page 14: Iii.4 Reset
III.4 Reset If need, the user can reset of the ZPILOT . For this, he has to press on the button during 5 seconds. When the ZPILOT reset, the LED flashes twice and turn off. UM_ZPILOT_20120903_001_01_00 CLEODE Page 14 sur 17... -
Page 15: Technical Features
Command of electric heater by wire pilot ZigBee™ – User Manual ECHNICAL FEATURES Weight 100 g Power supply 220V Measurement 54 x 52 x 32 mm Transmission range 100 m outdoor 30 m indoor Managed channels (frequency) 16 ZigBee™ channels (2.405 to 2.480 GHz) UM_ZPILOT_20120903_001_01_00 CLEODE Page 15 sur 17... -
Page 16: Repair And Maintenance
Command of electric heater by wire pilot ZigBee™ – User Manual EPAIR AND MAINTENANCE Defective equipments shall be first reported to the CLEODE support team in order to be assigned an RMA number. Be prepared to state your name, company and the serial number of the defective item to the support personnel. - Page 17 Command of electric heater by wire pilot ZigBee™ – User Manual CLEODE S.A. Technical Support Division 8, rue Bourseul 22300 Lannion France Phone : +33 (0) 2 96 48 68 18 Fax : +33 (0) 2 96 48 19 11 E-mail : support@cleode.com...
