resi-linx digi-MOD RL-DM1102 Quick Install Manual

Technical Specifications
SETTINGS
Channel Output 21 UHF / S31 UHF
FEC (forward error correction) 3/4
Guard Int 1/16
Attenuator 0
Constellation 64QAM
OFDM Mode 8K
RF Output Normal
Video Input PAL
Brightness 128
Contrast 128
Saturation 128
Sharpness 64
Hue 128
Cell ID 0
Stream ID 1000
Network ID 100
ORG Net ID 10
Network Name rl-network
Program Number 100
Channel Name CHANNEL-1
LCN 101
Aspect Ratio 4:3
LCN Mode APN
INPUT
Video Input CVBS
Video Input Level 0.7-1.4 V (pp)
Video Mode PAL / NTSC
Audio Input Stereo
Audio Input Level 0.4 - 4.8 V (pp)
Input Connectors Video (RCA/ S-Video) -Audio (RCA)
Input Impedance 75
MODULATION
Video Resolution PAL 720x576 @25fps
Video Compression MPEG2 MP@ML
Audio Compression MPEG1 Layer ll
WARRANTY
Vcomm Pty Ltd states that the warrant that the customer can rely on is that provided by the
manufacturer. In the event of any warranty claim please contact us and we will forward it to the
manufacturer. The manufacturer will then determine the extent of their liability. This expressly
negates, to the extent possible by Australian law, any warranty reliance on Vcomm Pty Ltd.
DEFAULT SETTINGS OPTIONAL SETTINGS
6-69 / E2 - E69
1/2, 2/3, 3/4, 5/6, 7/8
1/2, 1/4, 1/8, 1/16, 1/32
0-20dB
16QAM
2K
Inverted, C.W
NTSC
0-256
0-256
0-256
0-128
0-256
adjustable
adjustable
adjustable
adjustable
adjustable
adjustable
adjustable
adjustable
16:9
EACEM, ITC, NorDig
OUTPUT
Output Level 85 dB V
Output Impedance 75
Channel Bandwidth 7 MHz / 8 MHz
Output Level Adjustment 20 dB typ.
MER >32 dB typ.
Connector Type "F" Female
GENERAL
Power Supply 12 VDC 1.5 AMP
Consumption 500 MA
Dimensions 235 x 145 x 35mm
Weight .955kg

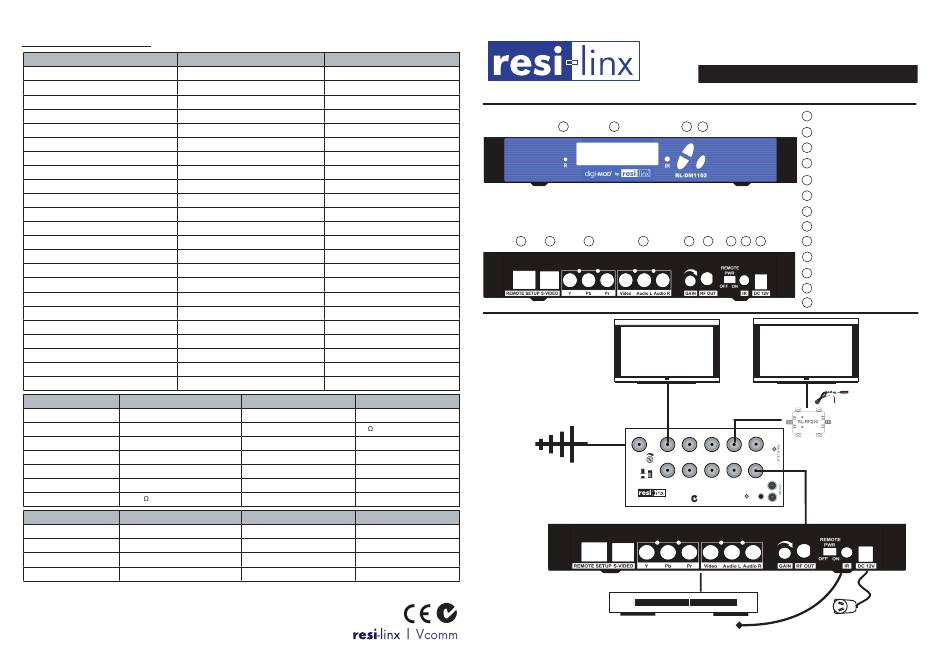

QUICK INSTALL MANUAL
www.resi-linx.com
A
M H F
digi-MOD
RL-DM1102
N15275
Full Installation manual available @ resi-linx.com
Radio Frequency Range
®
Single Input SD Digital Modulator
B C D
G J I K L E
AUX MOD RF IN
ANT IN
1 2 3 4
MOD RF IN
TV OUTPUTS
(PWR/IR PASS)
GAIN
ON
INPUT
OFF
5 6 7 8
FM TRAP
IR LED IR
® PATENTED
RL-RF380
N15275
RL-IR700
AV SOURCE x 1

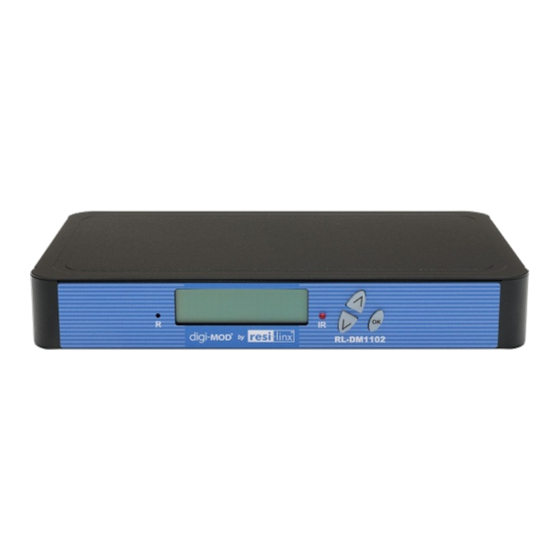

digi-MOD RL-DM1102
Reset
A
LCD Display
B
Scroll Up / Down
C
Enter Button (OK)
D
12V DC Power Input
E
Component Video Input
F
Composite (CVBS)
G
S-Video Input
H
RF Output
I
Gain Control
J
Remote Power Switch
K
IR Port
L
M Remote Set-up Indicator
12V DC 1.5A
