resi-linx digi-MOD RL-DM4000 Manual

®
www.resi-linx.com
A B C D E
IR
R
RL-DM4000
®
by
F
IN3 IN4
Video Audio L Audio R
Video Audio L Audio R
IN1
IN2
J
Video Audio L Audio R Video Audio L Audio R
Video and Audio Inputs x 4
F
G
ASI Inputs x 4
H
IR Repeaters x 4
Remote Power SwitchD Indicator Input
I
ANT IN
GAIN
ON
OFF
FM TRAP
®
RL-RF380
IN3 IN4
Video Audio L Audio R Video Audio L Audio R
IN1
IN2
Video Audio L Audio R Video Audio L Audio R
AV SOURCE x 4
Radio Frequency Range

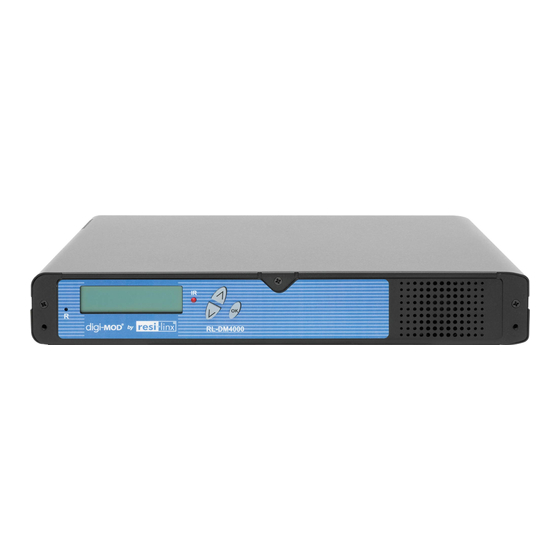

digi-MOD RL-DM4000
Quad Input SD Digital DVB-T Modulator
A
Reset Button
B
LCD Display
C
IR LED Display
OK
D
Scroll up / down Buttons
E
Enter Button (OK)
LED Indicator Input
G H
1 2 3 4
3 4
OFF ON (REMOTE) PWR
IR REPEATERS
1 2
RF OUT
ASI IN REMOTE SET UP
L
K
Screw Holes for Wall Mounting Brackets
J
RF Output
K
Remote Setup
L
M
12V DC Power Input ED Indicator Input
1 2 3 4 AUX MOD RF IN
MOD RF IN
TV OUTPUTS
(PWR/IR PASS)
INPUT
5 6 7 8
IR
IR LED
PATENTED
N15275
RL-DM4000 IR REPEATERS
1 2 3 4
OFF ON (REMOTE) PWR
3 4
DC 12V
1 2
ASI IN RF OUT REMOTE SETUP
12V DC
3A
Technical Specifications
SETTINGS
Channel Output
FEC (Forward Error Correction)
Guard Interval
Constellation
OFDM Mode
RF Output
Video Input
Brightness
Contrast
I
Saturation
Sharpness
Hue
DC 12V Cell ID
Stream ID
J
Network ID
M
ORG Net ID
Network Name
Program Number
Channel Name
INPUT
Video Input
Video Input Level
Video Mode
Audio Input
Audio Input Level
Input Connectors
Input Impedance
MODULATION
Video Resolution
Video Compression
Audi Compression
WARRANTY
Vcomm Pty Ltd states that the warrant that the customer can rely on is that provided by the
manufacturer. In the event of any warranty claim please contact us and we will forward it to the
manufacturer. The manufacturer will then determine the extent of their liability. This expressly
negates, to the extent possible by Australian law, any warranty reliance on Vcomm Pty Ltd.
DEFAULT SETTINGS
21 UHF
3/4
1/16
64 QAM
8K
Normal
PAL
128
128
128
64
128
0
1000
100
10
rl-network
1000 / 2000 / 3000 / 4000
CHANNEL-1 / 2 / 3 / 4
OUTPUT
CVBS / ASI Output Level
0.7 - 1.4 V (pp) Output Impedance
PAL / NTSC Channel bandwidth
Stereo Output Level Adjustment
0.4 - 4.8 V (pp) MER
Video (RCA) - Audio (RCA) Connector Type
75 Ohms
GENERAL
PAL 720 x 576 @ 25fps Power Supply
MPEG2 MP@ML Comsumption
MEPG1 Layer 2 Dimensions
Weight
OPTIONAL SETTINGS
6 - 69 / E2 - E69
1/2, 2/3, 3/4, 5/6, 7/8
1/2, 1/4, 1/8, 1/16, 1/32
16 QAM
2K
Inverted, C.W.
NTSC
0 - 256
0 - 256
0 - 256
0 - 128
0 - 256
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
Adjustable
105 dB V
75 Ohms
7 MHz / 8 MHz
20 dB typ.
>30 dB typ.
"F" female
12 Volts DC 3 Amps
1.7 Amps
300 x 200 x 47 (mm)
1.86 Kg
N15275
