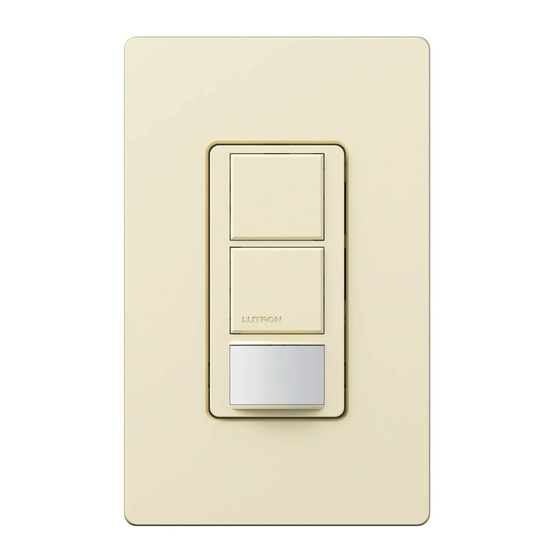

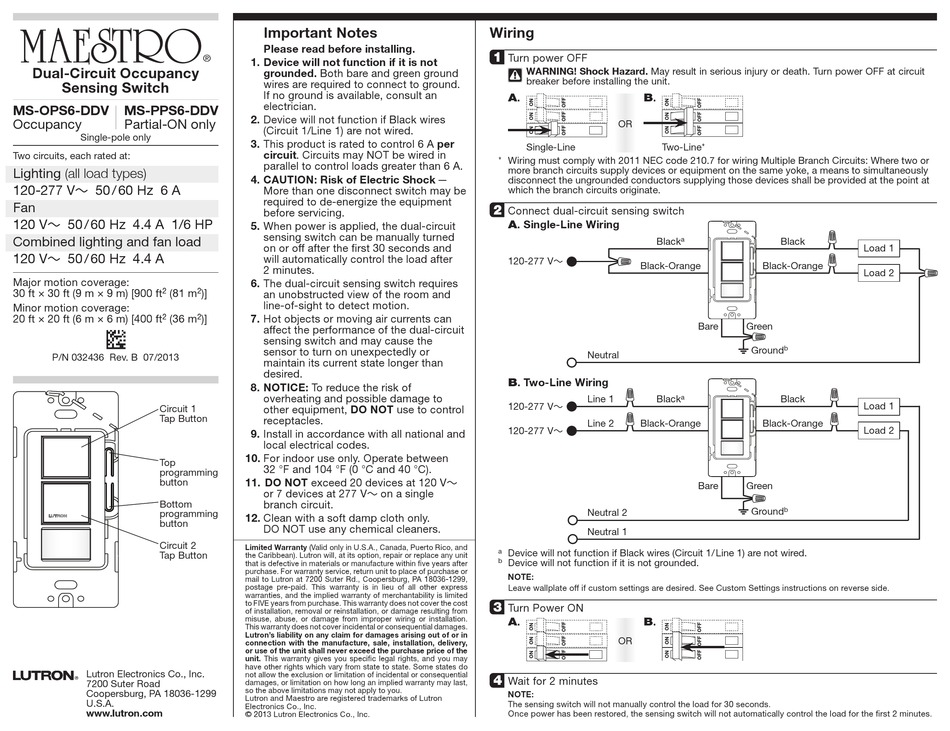

Dual-Circuit Occupancy
Sensing Switch
MS-OPS6-DDV MS-PPS6-DDV
Occupancy Partial-ON only
Single-pole only
Two circuits, each rated at:
Lighting (all load types)
120-277 V~ 50 / 60 Hz 6 A
Fan
120 V~ 50 / 60 Hz 4.4 A 1/6 HP
Combined lighting and fan load
120 V~ 50 / 60 Hz 4.4 A
Major motion coverage:
2
30 ft × 30 ft (9 m × 9 m) [900 ft (81 m
Minor motion coverage:
20 ft × 20 ft (6 m × 6 m) [400 ft 2 (36 m
P/N 032436 Rev. B 07/2013
Circuit 1
Tap Button
Top
programming
button
Bottom
programming
button
Circuit 2
Tap Button
Lutron Electronics Co., Inc.
®
7200 Suter Road
Coopersburg, PA 18036-1299
U.S.A.
www.lutron.com
Important Notes
Please read before installing.
®
1. Device will not function if it is not
grounded. Both bare and green ground
wires are required to connect to ground.
If no ground is available, consult an
electrician.
2. Device will not function if Black wires
(Circuit 1/Line 1) are not wired.
3. This product is rated to control 6 A per
circuit. Circuits may NOT be wired in
parallel to control loads greater than 6 A.
4. CAUTION: Risk of Electric Shock —
More than one disconnect switch may be
required to de-energize the equipment
before servicing.
5. When power is applied, the dual-circuit
sensing switch can be manually turned
on or off after the first 30 seconds and
will automatically control the load after
2 minutes.
6. The dual-circuit sensing switch requires
2
)]
an unobstructed view of the room and
line-of-sight to detect motion.
2 )] 7. Hot objects or moving air currents can
affect the performance of the dual-circuit
sensing switch and may cause the
sensor to turn on unexpectedly or
maintain its current state longer than
desired.
8. NOTICE: To reduce the risk of
overheating and possible damage to
other equipment, DO NOT use to control
receptacles.
9. Install in accordance with all national and
local electrical codes.
10. For indoor use only. Operate between
32 °F and 104 °F (0 °C and 40 °C).
11. DO NOT exceed 20 devices at 120 V~
or 7 devices at 277 V~ on a single
branch circuit.
12. Clean with a soft damp cloth only.
DO NOT use any chemical cleaners.
Limited Warranty (Valid only in U.S.A., Canada, Puerto Rico, and
the Caribbean). Lutron will, at its option, repair or replace any unit
that is defective in materials or manufacture within five years after
purchase. For warranty service, return unit to place of purchase or
mail to Lutron at 7200 Suter Rd., Coopersburg, PA 18036-1299,
postage pre-paid. This warranty is in lieu of all other express
warranties, and the implied warranty of merchantability is limited
to FIVE years from purchase. This warranty does not cover the cost
of installation, removal or reinstallation, or damage resulting from
misuse, abuse, or damage from improper wiring or installation.
This warranty does not cover incidental or consequential damages.
Lutron's liability on any claim for damages arising out of or in
connection with the manufacture, sale, installation, delivery,
or use of the unit shall never exceed the purchase price of the
unit. This warranty gives you specific legal rights, and you may
have other rights which vary from state to state. Some states do
not allow the exclusion or limitation of incidental or consequential
damages, or limitation on how long an implied warranty may last,
so the above limitations may not apply to you.
Lutron and Maestro are registered trademarks of Lutron
Electronics Co., Inc.
© 2013 Lutron Electronics Co., Inc.
Wiring
1
Turn power OFF
WARNING! Shock Hazard. May result in serious injury or death. Turn power OFF at circuit
breaker before installing the unit.
A. B.
OR
Single-Line Two-Line*
* Wiring must comply with 2011 NEC code 210.7 for wiring Multiple Branch Circuits: Where two or
more branch circuits supply devices or equipment on the same yoke, a means to simultaneously
disconnect the ungrounded conductors supplying those devices shall be provided at the point at
which the branch circuits originate.
2
Connect dual-circuit sensing switch
A. Single-Line Wiring
Black
120-277 V~
Black-Orange
Neutral
B. Two-Line Wiring
Line 1 Black
120-277 V~
Line 2 Black-Orange
120-277 V~
Neutral 2
Neutral 1
a
Device will not function if Black wires (Circuit 1/ Line 1) are not wired.
b Device will not function if it is not grounded.
NOTE:
Leave wallplate off if custom settings are desired. See Custom Settings instructions on reverse side.
3
Turn Power ON
A. B.
OR
4
Wait for 2 minutes
NOTE:
The sensing switch will not manually control the load for 30 seconds.
Once power has been restored, the sensing switch will not automatically control the load for the first 2 minutes.
a Black
Black-Orange
Bare Green
Ground b
a Black
Black-Orange
Bare Green
Ground b
Load 1
Load 2
Load 1
Load 2
