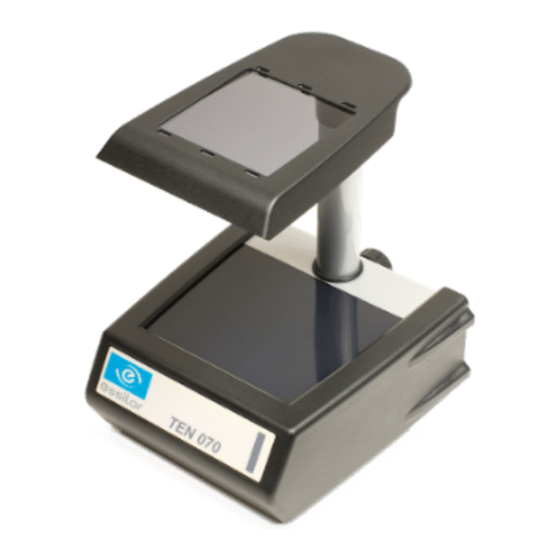

- Page 1 User Manual TEN 070 TEN 070 IMTEN070 V.4...
- Page 2 User Manual TEN 070 CONTROLS Master switch Power socket Knob for inclination regulation Polaroid filter WIRING DIAGRAM Feed outlet with fuse Luminous master switch I Lamp 5x20 Fuse Black wire Blue wire...
- Page 3 User Manual TEN 070 TECHNICAL DATA AND FEATURES TENSIOMETER TENSIOMETER Machine Tensioning test Code A2100 Maximum length (A) 155 mm Maximum width (B) 135 mm Maximum height (C) 167 mm Machine weight 0.93 Kg Feed voltage 230 V ± 10% 120 V ±...
- Page 4 User Manual TEN 070 UNPACKING Once packaging has been removed no damage must be evident. On the contrary, Service Centre must be informed. Disposal of packaging material will be carried out by customer in compliance with the regulations in force in the country where the machine is used.
- Page 5 User Manual TEN 070 INSTRUCTIONS TO OBTAIN ASSISTANCE AND SPARE PARTS For any communication with Service Centre, to be contacted c/o our offices, always quote machine type, serial number and year of manufacture written on label, which determine identification of each single machine and, whenever possible, specify the nature of the problem encountered or defect present on machine.
