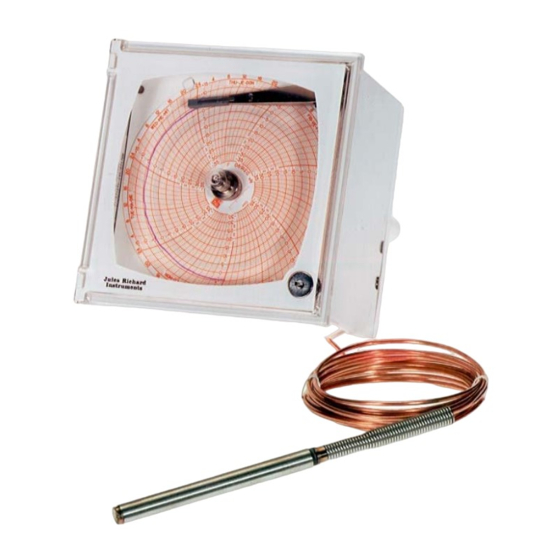

Minidisque remote recorder

Advertisement

Quick Links

USER MANUAL
MINIDISQUE REMOTE RECORDER
03112B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 03112B and is the answer not in the manual?

Questions and answers

Summary of Contents for JRI 03112B

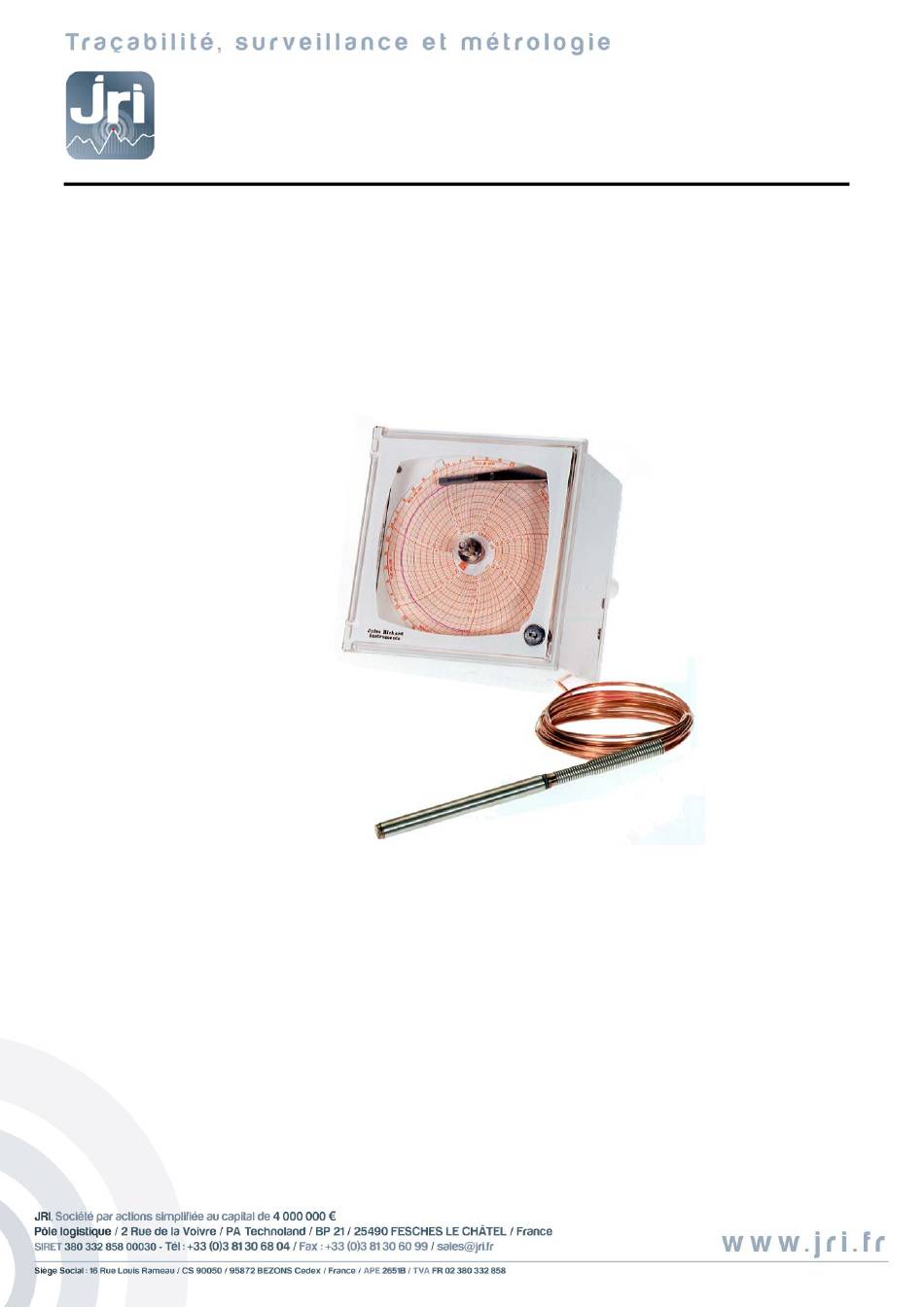

  • Page 1 USER MANUAL MINIDISQUE REMOTE RECORDER 03112B...
  • Page 2 Installing the diagram for a battery operated mechanism ....................5 Connecting the recorders to an outside power supply ......................5 IV. TECHNICAL PROPERTIES ............................6 Thermograph ..................................... 6 Thermograph features ................................6 DIMENSIONS ................................. 7 VI. MAINTENANCE ................................7 ©JRI...
  • Page 3 Each MINIDISQUE remote comes in a shockproof packaging that includes: 1 envelope of 100 diagrams 1 fibre point pen per measurement channel 1 set of keys 1 strap for a protrusive assembly or 1 bracket for a built-in assembly 1 battery (in the self-contained versions) ©JRI...
  • Page 4 NEVER REMOVE THE CENTRAL SCREW OF THE KNURLED NUT To achieve the operation: - Open the recorder door - Lift the pointer (1) so as to release the diagram (3). - Unscrew the knurled nut (4) and remove the diagram (3). ©JRI...
  • Page 5 - First check to make sure that the power supply’s voltage complies with specified on the appliance’s rating plate. - Connect the power supply’s cables with 3 connectors (the green / yellow wire is to be earthen for protection). ©JRI...
  • Page 6 Fibre point pens (per 5) S97601 (01 violet, 02 black, 03 red) Fibre point pen’s capacity About 90 m Optional : 230 V AC 50 / 60 Hz 0.015 A 24 V AC Clockwork mechanism powered by an external power source ©JRI...
  • Page 7 V. DIMENSIONS VI. MAINTENANCE Only use the diagrams and fibre point pens manufactured by JRI. Clean the housing with soapy water and a soft rag. Change the battery once a year. Do not leave the battery inside the appliance during prolonged stops.
