Antigravity Batteries RS-30 with Re-Start User Manual And Safety Information

Battery Care and Maintenance

The RS-30 does not require maintenance for the most part, but as with any battery, it should be checked once every few
months as a precaution. The RS-30 does not have any liquids/ uids to check. The basic check is a visual inspect of the
Battery for any cracks, make sure the mounting is secure, and check the voltage. The key to long life for any battery
chemistry is to not allow the battery to get below 10.5v in general. Below 10.5v, damage to the cells may occur, and the
lower the voltage, the more potential for damage.
Fortunately, with the RS-30's RE-START Technology and built-in BMS (Battery Management System) you should not have
to worry about over-discharge or going below 10.5v. This is because our RE-START Technology senses the low-voltage of
the battery and puts it to sleep well before damage can be caused to the battery. So, even if you leave your lights on, the
battery will shut-o before damage occurs, yet still allow you to start the vehicle with a press of the RE-START button.
Even with the RE-START Technology, the battery can drain within a 6-8 months while in Sleep Mode. So when not in use,
or in storage, you should check the batteries voltage every 3-4 months. Also note that even though the RS-30 has built-in
protections, make sure to fully recharge the battery if you have used the RE-START feature.
emergency use mainly, not as something to take the place of standard maintenance, and keeping the battery charged!
To clean the RS-30, use a clean dry cloth. Do not use harsh chemical or solvents, DO NOT directly spray the battery with a
Pressure Washer or Hose.
To store the RS-30 put in a cool dark place and put into Sleep Mode . Check Voltage once every 3-4 months when in
storage.

Trouble Shooting

* No Voltage at Terminals- Check that you have "turned-on/awakened" the battery by pressing the "RE-START" button by
holding it down for 5 seconds, the GREEN LED indicator light should be lit to show it is ON. If battery voltage is low then
Connect a Lithium (Lifepo4 12.8v) speci c charger to battery and re-charge battery fully.
* Battery will not hold a charge in vehicle more than a few days without going into SLEEP MODE- This is most likely
caused by your vehicle having a fast "Parasitic Drain" on the battery. Many modern cars/vehicles have high milli-amp
draws coming from onboard computers, theft alarms, interor lights, GPS systems and other accessories. These items use
the battery's energy and, in some cases quite rapidly. If you are experiencing this e ect, then you may have to connect
the RS-30 to a Lithium speci c Charger/Maintainer if you are not driving often enough to recharge the battery. For
example some Sports Cars are not driven as the daily driver and sit for longer periods of time yet they have on-board
computer systems or accessories that draw signi cant energy from the battery. In this you may be required to keep the
battery on a Mainainer during low use times.
* Battery is sluggish in cold temperatures- Cold weather (39F and below) creates resistance in Lithium batteries. On the
initial start attempt, you may notice sluggish starting performance. There is nothing wrong with the battery and with
the next start attempt, the battery power will come back as the battery self-warms from the Current discharge during the
initial start attempt. Another method to self-warm the battery is to turn you your lights for a few minutes to help the
battery warm-up before attempting a start. Depending on the size motor you have, and the di culty in turning-over
that motor, the e ect may vary.

Warranty

For full Warranty terms and information visit antigravitybatteries.com
All warranty claims are handled by Antigravity Batteries directly. All warranty claims must be accompanied by the original receipt from your retailer or your Antigravity Batteries Invoice. Antigravity
Batteries LLC o ers a 3-year Limited Warranty. It warrants to the original purchaser that our batteries are free of defects in material and workmanship for the term of 2 years in stock vehicles using standard charging
systems. Race use is a 1 year warranty, but not covering Total-Loss Systems. All batteries must be registered within the rst 30 days from the original purchase date or original purchaser must provide original receipt
in order to be eligible for a warranty claim. Warranties are non-transferable. Returns will only be accepted from the original Purchaser.
WARRANTY DOES NOT COVER ANY OF THE FOLLOWING PHYSICAL ISSUES
-Any physical damage caused by abuse, negligence, improper installations, or lack of general maintenance.
-Any modi cation to any part of the battery or its parts, any disassembly of the battery.
WARRANTY DOES NOT COVER THE FOLLOWING ELECTRICAL ISSUES
-Damage from direct "short-circuiting" of the battery caused by improper use or installations, grounding problems or accidents.
-Use of any Chargers intended for Lead/Acid batteries- Trickle chargers, Battery Tenders, ect.
-Use of Chargers NOT intended speci cally for Lifepo4 Lithium Motorsport Batteries, or with a maximum charge voltage over 14.6 volts
-Overcharging due to a defect with vehicle's voltage regulator or defective charging system, or performance charging systems
-Overcharging battery above 14.6volts OR Overdischarge of battery below 10.5 volts
-Excessive over cranking, or using the incorrect size battery for the ,(too small a battery where a larger battery is needed)
-Any non-standard electrical systems such as total-loss systems, 24v or 16v systems, Race Systems etc....(Only standard, stock 12-volt systems are warrantied)
-Parasitic drains that discharge the battery to below 10v (please check your electrical system and accessories for parasitic drains)
Antigravity Batteries are only eligible for one warranty replacement of a battery. Once a battery has been repaired or replaced under warranty, the replacement item only holds the remainder of the
warranty period from the date of the original purchase of the battery, and covers only physical defects. The pro-rated discount toward the purchase of a new battery will be applied.
Antigravity Batteries LLC reserves the right to deny any and all claims if all conditions and terms are not met.
ANTIGRAVITY BATTERIES LLC LIABILITY IS LIMITED TO REPLACEMENT OF THE BATTERY ACCORDING TO THE TERMS STATED ABOVE. ANTIGRAVITY BATTERIES WILL NOT BE RESPONSIBLE FOR ANY EXPENSES
FOR INSTALLATION, TOWING, ELECTRICAL SYSTEM TESTS, CHARGING A BATTERY, LOSS OF TIME, OR OTHER EXPENSES WHICH WOULD BE CONSIDERED AS INCIDENTAL OR CONSEQUENTIAL DAMAGES.
THIS WARRANTY DOES NOT COVER DAMAGE TO THE BATTERY CAUSED BY ABUSE OR NEGLECT, A FAILURE TO KEEP THE BATTERY PROPERLY CHARGED OR MAINTAINED, FIRE, COLLISION, EXPLOSION,
FREEZING, THEFT, OVERCHARGING, OR DAMAGE CAUSED BY MODIFICATIONS.
This warranty shall be IN LIEU OF any other warranty, express or implied, including but not limited to, any implied warranty of MERCHANTABILITY or tness for a particular purpose.
NOTE: SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE OTHER LEGAL RIGHTS, WHICH MAY VARY BY STATE.
ANTIGRA VITY BA TTERIES
Visit us at antigravitybatteries.com
Antigravity Batteries LLC Gardena, CA 90248
The RE-START feature is for
DO NOT USE LEAD ACID CHARGERS
Email us at info@antigravitybatteries.com
Ph. 310 527 2330
ANTIGRA VITY
BA TTERIES

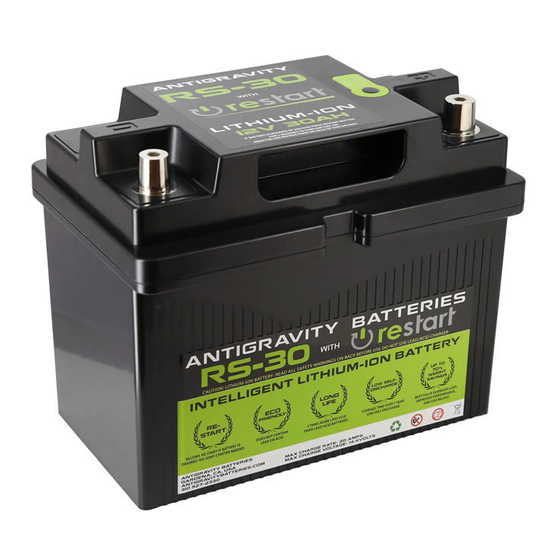

RS-30
INTELLIGENT LITHIUM-ION STARTER BATTERY
WITH SELF-RESTARTING CAPABILITIES...NO NEED FOR A JUMP STARTER

USERS GUIDE AND SAFETY INFORMATION

DANGER! IMPORTANT SAFETY INSTRUCTIONS.

COMPLETELY READ THIS MANUAL FIRST!
PRIOR TO USE, READ AND UNDERSTAND PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result in ELECTRICAL SHOCK, EXPLOSION,
or FIRE, which may result in SERIOUS INJURY, DEATH, DAMAGE TO DEVICE or
PROPERTY. DO NOT DISCARD THIS INFORMATION.

Introduction

Thank you for purchasing the Antigravity Batteries RS-30 Intelligent Starter Battery with our exclusive "RE-START" feature.
The RS-30 represents the latest in Lithium-ion Technology for Starter Batteries and o ers great starting performance as well
as incredible weight savings over Lead/Acid Batteries.
Our unique RE-START technology o ers the following capabilities:
1) In the event your battery is drained (for example you left your lights on) the RS-30 will put itself into "sleep mode" and
retain enough energy to start your vehicle without the aid of a Jump-Starter or needing to be charged. Simply press the
RE-START button (for 5 sec.) located on the top of the battery and the battery will awaken and be able to start your vehicle.
2) During times of storage you can "turn-o " the RS-30 to prevent over-discharge, then "awaken" it after months of storage to
a full charge.
3) Use the "Sleep Mode" as a Theft-Deterrent. Put the RS-30 into Sleep Mode during times of storage...with no power the car
cannot be started or driven away.

Installation of RS-30 (Have a professional install the battery)

1) Before Installation make sure the location of the battery will be free from potential short-circuiting of the cables,
terminals and other electrical connections. Be aware of other potentially dangerous situations such as moving parts or
extremely hot parts such as headers. Make sure your Charging System is in good operating condition and not charging
above 14.4v.
2) In many circumstances, the RS-30 will be much smaller than your current battery, or not t exactly. You may have to
modify your installation. Please make sure your installation is secure and safe. NOTE: We o er battery mounts for the
RS-30 that allow for a direct replacement t for many vehicles.
3) Install the Vehicles Positive Cable to the RS-30 Positive Terminal (RED "+" symbol), then install Negative Cable to the
RS-30 Negative Terminal. The RS-30 is equipped to accept standard SAE-Type Battery Clamps. Make sure the RS-30 is
ON/AWAKE before attempting to start your vehicle! Start Vehicle and check Installation and Operation for potential
hazards.
4) When you get the RS-30, the Battery may be in SLEEP MODE. The battery is in Sleep Mode if the GREEN LED Light on
the FUEL GAUGE is not showing. To wake-up the RS-30, press and hold down the RE-START Button (located on the top
of the RS-30) for approximately 5 seconds. When awake, you will see the GREEN LED light lit. To put the RS-30 back into
SLEEP MODE you can again press and hold the RE-START button for 5 seconds , you will then see the it turn o
completely indicating it is OFF/ASLEEP.
