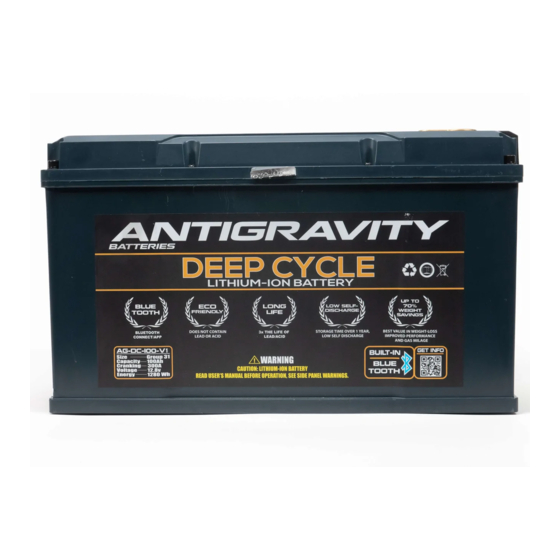

- Page 1 ANTIGRA VITY BA TTERIES DEEP CYCLE DC-100-V1 USER MANUAL INTELLIGENT LITHIUM-ION DEEP-CYCLE BA TTERY 100 Ah Lithium Iron Phosphate Battery (LiFePO4)
- Page 2 DC-100-V1 USER MANUAL CONTENTS: INTRODUCTION SAFETY WARNINGS PRODUCT OVERVIEW Page 1 PRODUCT SPECS Page 2 INSTALLATION Page 3 CHARGING Page 5 BLUETOOTH APP Page 6 WARRANTY Page 10 CONTACT INFO Page 11 IMPORTANT! READ MANUAL BEFORE FIRST USE PRIOR TO USE, PLEASE READ AND UNDERSTAND ALL PRODUCT SAFETY INFORMATION AND THIS USER MANUAL.
- Page 3 Users Manual before installation to learn more about your Antigravity DC-100-V1 and how to best care for, maintain, and operate it in the safest manner possible. For more information feel free to Contact us.
- Page 4 DC-100-V1 USER MANUAL Important Safety Warnings DISCLAIMER Antigravity Batteries, nor its manufacturers, nor partners, accepts no liability for any damage caused by: • Force of nature including fire, typhoon, flood, earthquake, war, and terrorism. • Intentional or accidental misuse, abuse, neglect or improper maintenance, and use under abnormal conditions.
- Page 5 Overview GENERAL INFORMA TION The Antigravity DC-100-V1 with Bluetooth Monitoring is designed for use in Deep Cycle applications and as a direct replacement for Lead/Acid Deep Cycle Batteries. It is equipped with an advanced Battery Management System (BMS) that can manage and monitor the battery’s performance during charge and discharge to ensure the safest operation and optimization for the longest life.
- Page 6 NOTE: In the event an AC load higher than 1200W is connected to the DC-100-V1, the battery may shut down and will not power the device, but the battery will not be damaged because its BMS will protect it. In this circumstance the DC-100-V1 will self-reset within seconds to power loads within its Approved power range as noted above.
- Page 7 Please follow your equipment manufacturer’s guidelines and follow the general methods below to ensure a safe installation. • When connecting to the Antigravity DC-100-V1 using the nuts and washers provided, we recommend a torque setting of 8Nm. Please connect the Positive (+) connection first before connecting the Negative (-) connection. Disconnections are the reverse process: Negative (-) first, Positive (+) last.
- Page 8 (Continued) CONNECTION OF BA TTERIES INTO A BA TTERY BANK • You can connect the Antigravity DC-100-V1 in the Series/Parallel connections as documented below in Fig 1. • NOTE: Do not exceed these specifications and make sure only batteries of the same Brand, Amp Hours and Chemical makeups are used in a Battery Bank.
- Page 9 Your Charger should be set in the range of 14.2v~14.6v. This allows the DC-100-V1 battery to get a full charge. NOTE: Going higher than 14.8v can cause our battery to go into protection mode which will cause the battery to not operate normally.
- Page 10 Bluetooth App & Operation ANTIGRA VITY BA TTERIES DC-100-V1 BLUETOOTH APP The Antigravity DC-100-V1 Battery is Bluetooth capable and comes with an App that you can use to monitor the status of the Battery easily using your Phone, Tablet, or Computer.
- Page 11 DC-100-V1 USER MANUAL Bluetooth App & Operation (Continued) APP INTERFACE The App has three main pages: “Basic Info” and “Details Info” and “Events Record”. Or click the MENU icon to access the following: • Device: go here to select and pair batteries with the app.
- Page 12 DC-100-V1 USER MANUAL Bluetooth App & Operation (Continued) > BASIC INFO PAGE DET AILED INFO PAGE State of Charge % Click ! to see Alarm details Real-Time Voltage Capacity Status Health: Perfect: >90% Capacity Good: 80%~90% Capacity Service: ≤80% Capacity...
- Page 13 DC-100-V1 USER MANUAL Bluetooth App & Operation (Continued) > EVENT RECORD PAGE The Event Record page shows you a log of the battery’s past status during its operation. It can show any faults that occurred, and protections that might have been used. This is nothing to be alarmed about, but can assist in diagnosis if your system is not operating or charging the battery correctly.
- Page 14 Battery (down to 10% of its gross capacity) and charged to 100%. The 10-year limited warranty period assumes no more than one full cycle per 24hr period. In the event of a valid warranty claim Antigravity Batteries will, at its discretion, supply a new or reconditioned Battery dependent on how many years have passed since the date of purchase or how many cycles the battery has undertaken.
- Page 15 DC-100-V1 USER MANUAL Warranty (Continued) REGISTERING YOUR BA TTERY You must register your Antigravity Battery product in order to validate the Limited Warranty. You can register the product Online at our Registration page. Contact Us When you need help or have questions, our knowledgeable support team is here for you! Please feel free to call us during our Office Hours 7:30am-4pm Pacific Time, Monday-Friday;...
