Raytheon Anschütz ECDIS NX Compact System Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ECDIS NX Compact
System Manual
Edition:001
10000000559

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECDIS NX Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Raytheon Anschütz ECDIS NX Compact

Summary of Contents for Raytheon Anschütz ECDIS NX Compact

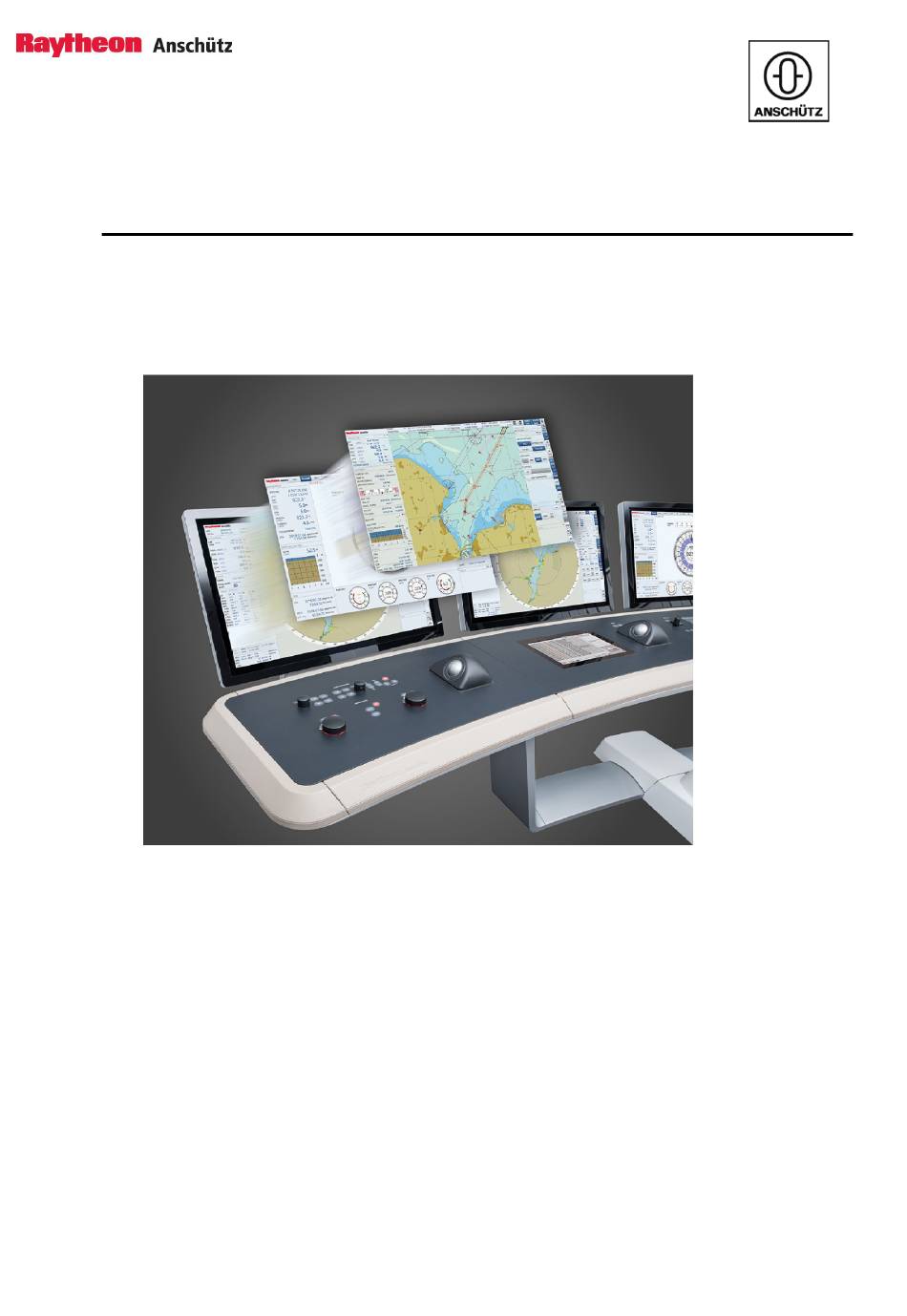

  • Page 1 ECDIS NX Compact System Manual Edition:001 10000000559...
  • Page 2 Copyright Dieses Dokument sowie dessen Inhalt sind urheberrechtlich This document and its content are copyright protected. Distribution, geschützt. Die Weitergabe, Vervielfältigung und Speicherung sowie reproduction and storage as well as translation and exploitation of die Übersetzung wie auch Verwendung dieses Dokuments oder this document and its content, in whole or in parts and regardless of dessen Inhalts, als Ganzes oder in Teilen und egal in welcher Form, what form, are prohibited without prior express written permission.

  • Page 3: Table Of Contents

    ECDIS NX Compact Table of Contents Table of Contents List of Figures..............................III List of Tables................................ V List of Abbreviations............................VII  Introduction................................ 1  Preliminary Remarks............................. 1  About this Document............................. 1  Safety................................1  General Safety Regulations........................1  General Safety Instructions........................... 2  Product and Performance Standards......................3  List of Further Documents..........................3...
  • Page 4 ECDIS NX Compact Table of Contents 10000000559 Edition:001...

  • Page 5: List Of Figures

    ECDIS NX Compact List of Figures List of Figures Fig. 1: Equipment Overview........................... 6 Fig. 2: Trackball..............................7 Fig. 3: Handling Instructions..........................10 Fig. 4: Panel PC, Cable Entries & Connectors Back................... 13 Fig. 5: Panel PC, Cable Entries & Connectors Bottom..................14 Fig.
  • Page 6 ECDIS NX Compact List of Figures 10000000559 Edition:001...

  • Page 7: List Of Tables

    ECDIS NX Compact List of Tables List of Tables Tab. 1: Product and Performance Standards......................3 Tab. 2: IHO Standards............................3 Tab. 3: List of Further Operator Documents......................4 Tab. 4: List of Further System Documents......................4 Tab. 5: Optional Equipment / Spare Parts......................9 Tab.
  • Page 8 ECDIS NX Compact List of Tables 10000000559 Edition:001...

  • Page 9: List Of Abbreviations

    ECDIS NX Compact List of Abbreviations List of Abbreviations Admirality Information Overlay Automatic Identification System ARCS Admirality Raster Chart Services Annotated Route Plan ARPA Automatic Radar Plotting Aid AtoN Aids to Navigation Bridge Alert Management Raster Chart Format provided by NOAA (USA)
  • Page 10 ECDIS NX Compact List of Abbreviations Cross Track Error 10000000559 VIII Edition:001...

  • Page 11: Introduction

    ECDIS NX Compact  Introduction   Introduction   Preliminary Remarks The present manual is a description and reference book only. It is intended to answer questions and to solve problems in the quickest possible manner. Read and follow the instructions and notes in this manual before operating the equipment.

  • Page 12: General Safety Instructions

    ECDIS NX Compact  Introduction WARNING! Warning statements indicate a hazardous situation that, if not avoided, could result in minor, moderate or serious injury, or death Consequence • Preventive action CAUTION! Caution statements indicate a hazardous situation that, if not avoided,...

  • Page 13: Product And Performance Standards

    ECDIS NX Compact  Introduction WARNING! Danger due to voltage-regulated devices Risk of death or serious injury that is caused by electrical shock • Switch off voltage supply if the wires have damaged insulation. • Only skilled electricians must perform work on the electric system.

  • Page 14: List Of Further Documents

    ECDIS NX Compact  Introduction   List of Further Documents Tab. 3: List of Further Operator Documents Documentation Designation 4451 Conning NX 10000000351 ECDIS NX Tab. 4: List of Further System Documents Documentation Designation 4449 Synapsis System Manual 4428 Synapsis Service Tool...

  • Page 15: Description

    Standalone and Dual Mode ECDIS NX Compact can be set up with a single unit in standalone mode or with 2 units in dual mode. In dual mode, one unit is set up as master unit and one as backup unit. The standalone unit and the master unit in dual mode are configured the same way.

  • Page 16: Equipment Overview

    ECDIS NX Compact 1 Description 1.3  Equipment Overview Fig. 1: Equipment Overview Element Description Power On/Off This symbol and all text will illuminate in red when suitable power is con- nected and the unit is turned off. When the unit is on and operating, this symbol will change into green color and illuminate constantly.

  • Page 17: Trackball

    It has no illumination behind to indicate its position. Touching or covering this area will naturally make the sensor data inac- curate and should be avoided! 1.4  Trackball ECDIS NX Compact delivery includes a trackball. Fig. 2: Trackball Edition:001 10000000559...

  • Page 18: Installation And Update

    Note A USB extension cord is included with the delivery of ECDIS NX Compact. Connect the extension cord to the USB 3.0 port and lead the connector somewhere, where it is reachable after the installation for later updates via USB.

  • Page 19: Technical Data

    ECDIS NX Compact 1 Description 1.7  Technical Data Dimensions Height 384.00 mm Width 593.00 mm Depth 76.40 mm Weight 11.2 kg VESA Mounting 280 x 150 mm 4 x M6 Max 12 mm deep Voltage Supply 115 & 230 V AC - 50/60Hz + 24 V DC...

  • Page 20: Installation

    ECDIS NX Compact 2 Installation 2  Installation 2.1  Hardware Installation 2.1.1  General Installation Recommendations 2.1.1.1  Installation and Mounting Fig. 3: Handling Instructions 1. This product is intended for various methods of installation or mounting (panel mounting, bracket mounting, ceiling/wall, console mounting etc.); for details, please see the relevant mechanical drawings.

  • Page 21: Installation Limitations

    ECDIS NX Compact 2 Installation overtemperature. This point should already be taken into consideration when the bridge equipment is being planned (sun shades, distance from the windows, ventilation, etc.) 6. Space necessary for ventilation, for cable inlets, for the operating procedures and for maintenance, must beprovided.

  • Page 22: Ergonomics

    ECDIS NX Compact 2 Installation D: General rule for console mounted units To ensure proper cooling airflow, long-life and stable operation for all units, please make sure that the console casing have either fans or decent ventilation holes to prevent overheating inside the console due to the combined temperature of both Display or Panel Computer units together with other electronic instruments.

  • Page 23: Fig. 4: Panel Pc, Cable Entries & Connectors Back

    2 Installation Note A USB extension cord is included with the delivery of ECDIS NX Compact. Connect the extension cord to the USB 3.0 port and lead the connector somewhere, where it is reachable after the installation for later updates via USB.

  • Page 24: Housing / Terminal Block Connector Overview

    ECDIS NX Compact 2 Installation Fig. 5: Panel PC, Cable Entries & Connectors Bottom Maximum Cable Length Any cable should generally be kept as short as possible to provide a high quality input/ output. The maximum signal cable length will depend on the signal resolution and frequency, but also on the quality of the signal output from the computer/radar.

  • Page 25: Configuring Housing / Terminal Block Connectors

    ECDIS NX Compact 2 Installation Illustration Pins Manufacturer Details Connector used for module 2-pin Phoenix 1961986 DC Power IN (24VDC) - Single MSTB 2,5/ 2-STF-5,08 BK Input Screwdriver: SZS 0,6x3,5, slot- Identified on Hatte- headed. land Display prod- Tightening torque min. 0.5 Nm.

  • Page 26: Fig. 6: Connector, Open Connector

    ECDIS NX Compact 2 Installation Fig. 6: Connector, Open Connector 2. Insert cables (from front) and screw / secure the cables by turning the screw on top of the housing to securethe cables properly. Check that the cables is firmly in place and do not appear loose or falls out when pulling gently.

  • Page 27: Installation Procedures

    ECDIS NX Compact 2 Installation Fig. 8: Connector, Plug into Housing 4. Finalize the installation by fasten the screws located in front on each side of the housing connector. Fig. 9: Connector, Tighten Connector 2.1.2  Installation Procedures 2.1.2.1  Install the Unit into a Console...

  • Page 28: Fig. 10: Installation, Slide Unit Into Cutout

    ECDIS NX Compact 2 Installation Note This manual covers the installation of the ECDIS NX Compact into a console with the mounting brackets included in the delivery. For other mounting methods see the corresponding manual of the used mounting brackets. Procedure 1.

  • Page 29: Connect The Cables

    Keep moisture away from live parts. • Keep the system closed. • Do not attempt to bypass or disable fuses. ECDIS NX compact is equipped with strain relief clamps for the cables which also serve as as earth connection for the shield. Edition:001 10000000559...

  • Page 30: Fig. 14: Position Of Strain Relief Clamps

    ECDIS NX Compact 2 Installation Fig. 14: Position of Strain Relief Clamps Turn the cable shield over the coating and fix it with the strain relief clamp. Fig. 15: Strain Relief Clamp with Cable 10000000559 Edition:001...

  • Page 31: Overview Of Connections

    ECDIS NX Compact 2 Installation 2.1.2.2.2  Overview of Connections WARNING! Danger due to voltage-regulated devices Risk of death or serious injury that is caused by electrical shock • Switch off voltage supply if the wires have damaged insulation. • Only skilled electricians must perform work on the electric system.

  • Page 32: Connect Iec 61162-1 (Nmea 0183) Pin Allocation

    ECDIS NX Compact 2 Installation Connector Description Note A USB extension cord is included with the delivery of ECDIS NX Compact. Connect the extension cord to the USB 3.0 port and lead the connector somewhere, where it is reachable after the installation for later updates via USB.

  • Page 33: Fig. 17: Connection Overview, Allocation Of Pins

    ECDIS NX Compact 2 Installation Fig. 17: Connection Overview, Allocation of Pins Tab. 6: Allocation of Pins Connector Description TxD- Transmit Data Negative TxD+ Transmit Data Positive Ground RxD- Receive Data Negative RxD+ Receive Data Positive TxD- Transmit Data Negative TxD+ Transmit Data Positive...

  • Page 34: Connect Iec 61162-1 (Nmea 0183) Devices

    Do not attempt to bypass or disable fuses. The allocation of the connectors depends on the configuration. Standalone ECDIS NX Compact and the main ECDIS NX Compact in a dual configuration are allocated differently then the backup unit. Fig. 18: Connection Overview, Allocation of Devices...

  • Page 35: Tab. 7: Allocation Of Devices: Standalone / Main Unit

    ECDIS NX Compact 2 Installation Allocation of Devices: Standalone / Main Unit Tab. 7: Allocation of Devices: Standalone / Main Unit Con- Device nec- NMEA GPS 1 NMEA GPS 2 NMEA Gyro Compass NMEA Speed Log NMEA Echosounder NMEA NMEA BNWAS (only required for use of Track Control System)

  • Page 36: Software Installation

    1. Insert the USB flash drive into the blue USB 3.0 ports of the panel PC. 2. Start the panel PC. ► On first start, ECDIS NX Compact will ask for the future boot type. Fig. 19: Select Future Boot Type 3.

  • Page 37: Fig. 20: Remove Usb Flash Drive

    ECDIS NX Compact 2 Installation Fig. 20: Remove USB Flash Drive 4. Remove the USB flash drive. Note The USB flash drive must be removed or the subsequent installation will fail. 5. Press any key to proceed. ► The system will reboot several times during the installation. Do not interrupt the process or switch of power.

  • Page 38: Fig. 21: Installation Window

    6. Select the install options. ► Select the configuration: – ECDIS NX Compact Standalone – ECDIS NX Compact Dual (MFC1 or MFC2) ► Select Install VDR Image Service ► Select if the installation is an ECDIS 24 refit. 7. Select the softkey Install.

  • Page 39: Fig. 22: Installation Complete

    ECDIS NX Compact 2 Installation Fig. 22: Installation Complete 9. Select the softkey Start ECDIS NX. 10.Wait until the Software Deployment Tool is shown in the background before proceeding. Fig. 23: User Account Control Message 11.Select the softkey Yes to proceed.

  • Page 40: Software Configuration

    Software Configuration About this task ECDIS NX Compact must be configured with the Synapsis Service Tool. ECDIS NX requires at least the RAn order number in the service tool as this is used to calculate the S63 User Permit, which is required to order and use S63 ENC charts. To set the RAN order number open the Service Tool, load the configuration and navigate to “Synapsis Configuration”...

  • Page 41: Fig. 25: Service Tool, Ship Parameters

    ECDIS NX Compact 2 Installation Fig. 25: Service Tool, Ship Parameters As RAN order number use the VKA number or any equivalent unique number which must have at least five digits. If the number is longer than five digits, the last five digits are used.

  • Page 42: Fig. 26: Service Tool, Charts Configuration

    ECDIS NX Compact 2 Installation Fig. 26: Service Tool, Charts Configuration Select which chart formats are needed. Note that the license is checked against these settings and if the license does not support a chart format which is selected in the Service Tool a message is displayed on the ECDIS NX on startup.

  • Page 43: Fig. 28: Dialog: Login As User Service

    ECDIS NX Compact 2 Installation Fig. 28: Dialog: Login as User Service Fig. 29: Dialog: Logged in as User Service 4. To create the license request file, select the softkey GENERATE LICENSE REQUEST. ► A window appears showing the SevenCs hardware IDs.

  • Page 44: Fig. 31: Dialog: Select Export Path

    ECDIS NX Compact 2 Installation ► The registration permit for S-57 / S-63 and ARCS is “RAYTHEON,PK1118.RAYTHEON.02” ► The registration permit for S-57 / S-63 and DNC / BSB is “RAYTHEON,PK1118.RAYTHEON.03” Note Registration of the optional permits for either ARCS or DNC / BSB is only permitted in combination with a purchase of the individual BST 8113 &...

  • Page 45: Fig. 32: Dialog: Enter Arcs Pin And User Permit

    ► Send the ARCS PIN and ARCS User Permit to UKHO customer service (CS- UKHO Customer Services customerservices@ukho.gov.uk) and request the ARCS permits. 12.Restart the ECDIS NX Compact. 13.If ARCS is used, install the received ARCS permits using the ChartHandler in the ECDIS NX.

  • Page 46: Annex
