Summary of Contents for Starrett MTH-110
- Page 2 READ THIS MANUAL BEFORE USING THE INSTRUMENT ANTES DE UTILIZAR EL INSTRUMENTO, LEA ATENTAMENTE ESTE MANUAL LIRE CE MANUEL AVANT D'UTILISER L'INSTRUMENT LEIA ATENTAMENTE ESTE MANUAL ANTES DE UTILIZAR O INSTRUMENTO 使用仪器前请阅读本操作手册 DIESES HANDBUCH VOR DER VERWENDUNG DES MESSGERÄTS LESEN LEGGERE ATTENTAMENTE QUESTO MANUALE PRIMA DI UTILIZZARE QUESTO STRUMENTO 02/18...

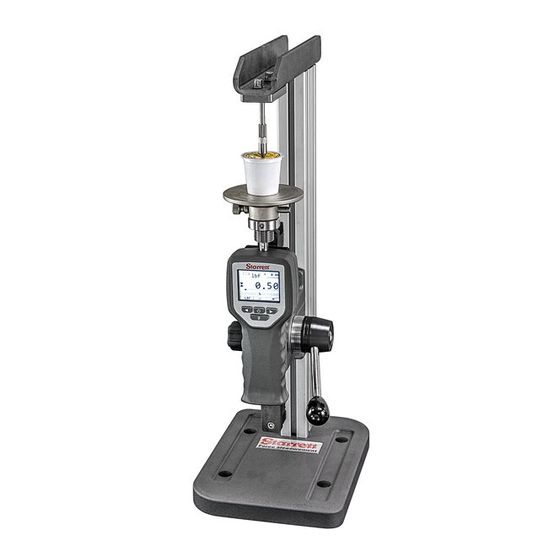

- Page 3 MTH-110 MANUAL TESTER QUICK REFERENCE GUIDE PKG08814-QRGMTL110 3...
-
Page 4: Table Of Contents
TABLE OF CONTENTS PAGE Introduction Principle of Operation Setup for Use Mounting Force Gage Using Fixtures Performing a Test Using the Optional Digital Scale Using the Optional Legs for Horizontal Operation Horizontal Mounting Kit (P/N MLX-26030) Optional Accessories Force Gage Adapter Kits Dimensions 4 PKG08814-QRGMTL110... - Page 5 COMPONENTS Top Test Fixture Arm 20" (508mm) Column Rack and Pinion Assembly Optional DFG Force Gage Adjustable Lever Arm Assembly Base Mounting Plate PKG08814-QRGMTL110 5...
- Page 6 MTH-110 MANUAL TESTER THIS IS A STARRETT QUICK REFERENCE GUIDE FOR THE MTH-110 MANUAL TESTER. ALL SPECIFICATIONS IN THIS DOCUMENT ARE CORRECT AT TIME OF PRODUCTION AND ARE SUBJECT TO CHANGE. PLEASE CONTACT STARRETT FOR FURTHER INFORMATION. PKG08814-QRGMTL110 7...
-
Page 7: Introduction
ENGLISH INTRODUCTION SETUP FOR USE Thank you for choosing the MTL-110 Force Tester. Locate the MTL-110 tester where there is sufficient clearance for testing and moving the lever arm. The MTL-110 manual tester is designed for basic tension or compression force testing applications. You may permanently secure the base to the work The MTL-110 has a force capacity of 110lbf (500N). -
Page 8: Mounting Force Gage
ENGLISH MOUNTING FORCE GAGE USING FIXTURES The DFC or DFG Force Gage is mounted to the gage The top test fixture arm is used to secure the top mounting plate using four M4 screws. test fixture. The test fixture arm has an adjustable adapter plate that helps ensure proper alignment Position the force gage on to the gage mounting plate with your force gage. -
Page 9: Performing A Test
ENGLISH PERFORMING A TEST USING THE OPTIONAL DIGITAL SCALE Apply tension or compressive force on your sample The MTL-110 may be fitted with the optional digital by rotating the lever arm. As you rotate the lever, scale (p/n MTL-SCALE). The scale will display the entire rack and pinion assembly will move up distance measurement for your test. -
Page 10: Using The Optional Legs For Horizontal Operation
ENGLISH USING THE OPTIONAL LEGS FOR HORIZONTAL MOUNTING KIT (P/N MLX-26030) HORIZONTAL OPERATION Includes two (2ea) mounting legs, an end cap (not You may fit the MTL-110 with optional mounting legs shown) and all necessary mounting hardware. (p/n MLX-26030). This allows you to position the test Replaces the standard baseplate for horizontal testing. -
Page 11: Optional Accessories
Mounting Kit for Mark-10 Force Gages SPK-FG-SHIM Mounting Kit for Shimpo Force Gages SPK-FG-IMAD Mounting Kit for Imada Force Gages SPK-FG-MECM Mounting Kit for Mecmesin Force Gages Please consult with your Starrett representative when ordering Force Gage Adapter Kits to ensure model compatibility. 12 PKG08814-QRGMTL110... -
Page 12: Dimensions
ENGLISH DIMENSIONS 10.50 (266.7) 3.00 (76.2) 2.00 (50.8) 9.0 (230) Max. 1.50 (38.1) 6.13 (155.6) 22.75 (577.9) 21.25 (539.8) 0.38 (9.5) 11.00 (279.4) 8.00 (203.2) 5.25 (133.4) 2.88 (73.0) 5.25 (133.4) PKG08814-QRGMTL110 13... - Page 13 NORTH AMERICA WWW.STARRETT.COM ATHOL, MA, USA, 01331-1915 EUROPE & ASIA WWW.STARRETT.CO.UK JEDBURGH, SCOTLAND, TD8 6LR SOUTH & CENTRAL AMERICA WWW.STARRETT.COM.BR 13306-900, ITU, SP, BRASIL CNPJ 56.994.700/0001-01 CHINA WWW.STARRETT.COM.CN USER MANUALS AVAILABLE ONLINE AT STARRETT.COM PKG08814-QRGMTL110 15...
