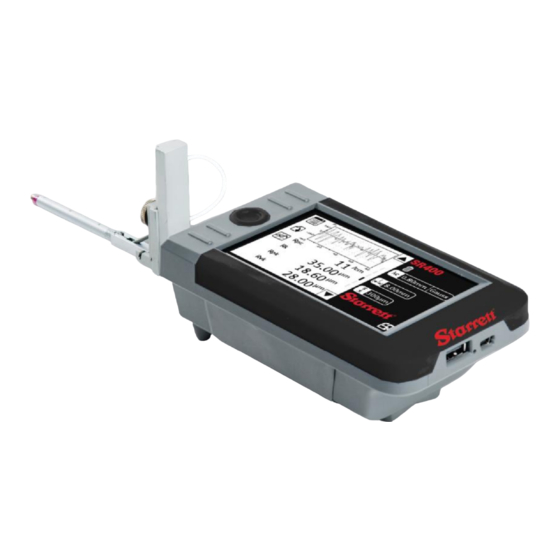

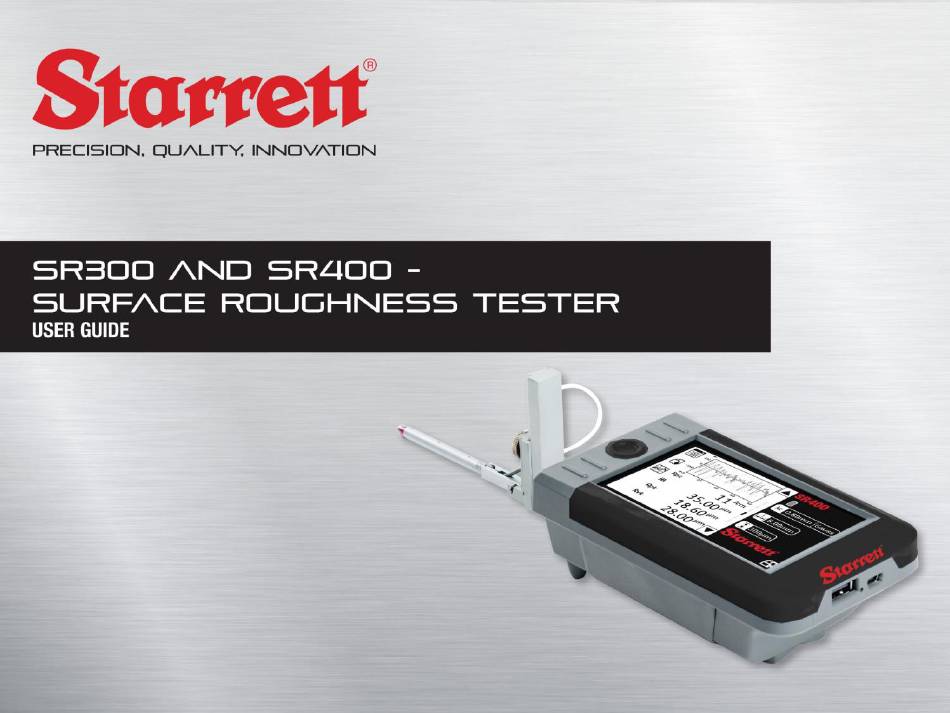

Starrett SR300 User Manual

Surface roughness tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Starrett SR300

Summary of Contents for Starrett SR300

  • Page 2 Contents SR300 and SR400 Surface Roughness Tester SR300 and SR400 Overview Instrument Overview Talyprofile SR300 and SR400 Accessories System Information Pick-Ups Instructions Starrett Products...
  • Page 3 SR300 and SR400 Surface Roughness Tester SR300 AND SR400 OVERVIEW...
  • Page 4 Their mechanical rigidity and styli have a firm reputation for reliable and repeatable surface finish measurements across a wide range of applications. The SR Surface Roughness Tester comes in two variants: the SR300 is our standard offering, while the SR400 offers extended measurement range and analysis capability.
  • Page 5 SR300 and SR400 Surface Roughness Tester SR300 and SR400 Surface Roughness Tester Durable Versatile • High impact rubberized molding IP44 rated • Unique 50mm stylus lift/lower • Recessed, Mylar protected high durability – Simple setup on any surface touch screen •...
  • Page 6 SR300 and SR400 Surface Roughness Tester SR300 and SR400 Surface Roughness Tester User-Friendly Connectivity • 4.3” daylight readable display • Standard USB Charging (PC or Mains) • Operation in any orientation • Storage of results internal or USB key – Settings always on display –...
  • Page 7 SR300 and SR400 Surface Roughness Tester SR300 and SR400 Surface Roughness Tester Measuring Flat or Extended Pick-Up Measure Cylindrical Surfaces Right-Angles Lift Lower Mechanism 0 to 60mm of Height Built in Memory as Standard Traverse Length = 25mm...
  • Page 8 SR300 and SR400 Surface Roughness Tester SR300 and SR400 Surface Roughness Tester Function Button • Turn the Device On • Make a Measurement USB Mini Port • Connect to PC • Charge Device USB Type A Port Touch Screen • Connect Printer...
  • Page 9 SR300 and SR400 Surface Roughness Tester SR300 and SR400 Surface Roughness Tester Parameter Options to Suit Your Application Fast Measurement Cycle Intuitive Menu Structure Unique Stylus Lift Mechanism for Total Flexibility Long Traverse Length and Extended Pick-Up Reach Comprehensive Range of Accessory and Pick-Up Options...
  • Page 10 SR300 and SR400 Surface Roughness Tester INSTRUMENT OVERVIEW...
  • Page 11 Instrument Overview SR300 and SR400 Surface Roughness Tester The SR300/SR400 can calculate up to 22 parameters Parameter Options to Suit Your Application according to your measurement application including: Amplitude Parameters Spacing Parameters Hybrid Parameters Measures the vertical characteristics Measures the horizontal...
  • Page 12 Fast Measurement Cycle Intuitive Menu Structure The SR300/SR400 incorporates the The SR300/SR400 incorporates a large LCD screen which allows full latest electronics for very fast analysis - menu and measurement results to be displayed. Using only two buttons results are calculated and displayed the user can scroll through the menus and make selections intuitively even before the traverse unit returns.
  • Page 13 Built-in Memory/Storage Unique Stylus Lift Mechanism No PC or printer cables in your way while you The SR300/SR400 has a uniquely engineered stylus lift measure – the SR300/SR400 is now truly mechanism which allows a vertical adjustment of 50mm and...
  • Page 14 Pick-Up Reach and Pick-Ups Starrett has developed an extensive range of pick-ups The SR300/SR400 can traverse up to 25mm (or as little and accessories to suit the varied measurement needs as 0.25mm) depending on your component. In addition, of our customers. In addition to the pick-ups shown on...
  • Page 15 SR300 and SR400 Surface Roughness Tester TALYPROFILE...
  • Page 16 Talyprofile SR300 and SR400 Surface Roughness Tester Advanced Surface Finish Analysis Talyprofile is a dedicated software package designed for use with workshop or laboratory instruments. Three versions are available: • Talyprofile “Silver” has all functions typically used for a shop floor inspection.
  • Page 17 Talyprofile SR300 and SR400 Surface Roughness Tester General Features Gold Silver Lite Modules Acquisition interface for workshop profilers     Included Basic set of file formats Available in Optional Module(s)    Can be used without USB dongle ...
  • Page 18 Talyprofile SR300 and SR400 Surface Roughness Tester Interface Gold Silver Lite Modules Analysis workflow  Included  Document pages viewer    Available in Optional Module(s)  File explorer and favorite folders   Statistics Interactive bank of studiables ...
  • Page 19 Talyprofile SR300 and SR400 Surface Roughness Tester Studies on Profiles Gold Silver Lite Modules Abbott-Firestone curve/depth distribution    Included  Advanced options in contour analysis   Available in Optional Module(s) Area of a hole/peak   Statistics Averaged power spectrum density ...
  • Page 20 Talyprofile SR300 and SR400 Surface Roughness Tester Parameters Gold Silver Lite Modules Included  2D (P+R) parameters, Group A: ISO 4287     Available in Optional Module(s) 2D (P+R) parameters, Group B: old parameters  Statistics 2D parameters, Group C: automotive ...
  • Page 21 Talyprofile SR300 and SR400 Surface Roughness Tester Operators on Surfaces Gold Silver Lite Modules Included  Profile extraction    Available in Optional Module(s) Statistics Studies on Surfaces Gold Silver Lite Modules Contour Pseudo-color image   Advanced Contour...
  • Page 22 Talyprofile SR300 and SR400 Surface Roughness Tester Time-Saving Templates Desktop Publishing Facility A 'template' can be created whereby a Talyprofile offers a comprehensive desk top publishing function which sequence of analytical functions can be allows professional presentation of measurement results and profiles.
  • Page 23 Talyprofile SR300 and SR400 Surface Roughness Tester Talyprofile Parameters Parameters on the Raw Profile Unfiltered: Pa, Pq, Pt, Pp, Pv, Pku, Psk, PSm, Pz, PΔq, Pλq, PTp, PHTp, PLo, PPc. Roughness Parameters Obtained by Filtering: Ra, Rq, Rt, Rp, Ry, Rku, Rsk, RSm, Rz, RΔq, RTp, RHTp, Rlo, Rλq, RPC, RzJIS, R3z.
  • Page 24 Talyprofile SR300 and SR400 Surface Roughness Tester Outstanding Graphics In Depth Analysis The software is visually advanced and provides clear Profiles can be levelled and zoomed to remove unwanted on screen profile images. Talyprofile allows the user to features or defects from the analysis. Distance...
  • Page 25 SR300 and SR400 Surface Roughness Tester SR300 AND SR400 ACCESSORIES...
  • Page 26 SR300 and SR400 Accessories SR300 and SR400 Surface Roughness Tester USB Thermal Printer Cat. No. SR-112-4570 Compact and highspeed 60mm (24in)/second. Includes USB lead and International Power Supply Outputs settings, results, and high resolution graph.
  • Page 27 SR300 and SR400 Accessories SR300 and SR400 Surface Roughness Tester Support Stand Column and Stand Cat. No. SR-112-1517 Cat. No. SR-112-2693 With 4 degrees of freedom. Max measuring height of Granite base (400 x 250 mm) with manually operated 430 mm and a range of 115 mm at a horizontal reach of column providing adjustment height of 260 mm 305–420 mm.
  • Page 28 SR300 and SR400 Accessories SR300 and SR400 Surface Roughness Tester Plug Adaptors Cat. No. SR-112-4545 International USB charger • 5V 1A 110-240VAC • 50/60Hz Recharges SR300/SR400 in 4 hours.
  • Page 29 SR300 and SR400 Accessories SR300 and SR400 Surface Roughness Tester Height Transfer Gage Cat. No. 252Z-14 Clamp Part No. PT99560 Clamp to attach SR300 and SR400 to 252 Height Transfer Gage...
  • Page 30 SR300 and SR400 Surface Roughness Tester PICK-UPS...
  • Page 31 SR300 and SR400 Surface Roughness Tester Starrett has developed an extensive range of pick-ups to suit the varied measurement needs of our customers. In addition to the pick-ups shown below our applications department regularly design and manufacture pick-ups for specific requirements.
  • Page 32 Pick-Ups SR300 and SR400 Surface Roughness Tester Right Angle Pick-Up Recess Pick-Up Cat. No. SR-112-1506 Cat. No. SR-112-1505 For recesses to a depth of 5.7mm (0.23in). A 2μm tip For measurement at right angles to the direction of radius version is available (code 112-2672). (Also traverse.

  • Page 33: System Information

    SR300 and SR400 Surface Roughness Tester Technical Specifications and Dimensions SYSTEM INFORMATION...

  • Page 34: Technical Specifications

    Technical Specifications SR300 and SR400 Surface Roughness Tester Technical SR300 SR400 Languages Basic English, French, German, Italian, Spanish Extended Asian Data Output On-Screen Up to 7 results per page, selectable on-screen graph with XZ axis Printer Output settings, results and high resolution profile graph...
  • Page 35 Technical Specifications SR300 and SR400 Surface Roughness Tester Component Capacity SR300 SR400 Physical Specifications Weight Including Pickup 0.5Kg (1.1lbs) IP Rating None IP43 Power Source Li Poly rechargeable battery 5 - 40°C (41-104°F) Operating Conditions Temperature Humidity 0 -80% non-condensing...
  • Page 36 Dimensions SR300 and SR400 Surface Roughness Tester Measurement Capability SR300 SR400 Gage Range 200µm, 100µm, 10µm 400µm, 100µm, 10µm Resolution 100nm, 20nm, 10nm 50nm, 10nm, 5nm Noise Floor (Ra) 250nm, 150nm, 100nm 150nm, 100nm, 50nm Repeatability (Ra) 1% of value + noise 0.5% of value + noise...
  • Page 37 Dimensions SR300 and SR400 Surface Roughness Tester Analysis Capability SR300 SR400 Parameters Standards ISO 4287, ISO 13565-1, ISO 13565-2, ASME 46.1, JIS 0601, N31007 ISO Basics Ra, Rv, Rp, Rz, Rt, Rq, Rsk, Rmr, Rdq, RSm, Rz1max ISO Advanced Optional...
  • Page 38 SR300 and SR400 Surface Roughness Tester OTHER STARRETT PRODUCTS...
  • Page 39 It performs a wide variety of Low Energy Connectivity parameters, from common Ra to more complex Rz1Max and Rsk parameters. The design makes the device simple to navigate, intuitive, and reliable. Of the highest in Starrett quality. Skidded pick-up with 5μm (200μin) stylus tip.
  • Page 40 SR300 and SR400 Surface Roughness Tester INSTRUCTION MENU...
  • Page 41 Instruction Menu SR300 and SR400 Surface Roughness Tester Menu Device Icons Graph Battery Brightness Internal Memory External Memory Rotate Screen Shot Battery Level Calibration Calibration Value Calibration Filter Calibration Settings Stylus Return Cut-Off Filter Type Measurement Length Range Set Zero...
  • Page 42 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Tap the “Down Arrow” to scroll down through the menu. Menu Tap the “Menu” icon in the left-hand corner.
  • Page 43 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Tap the ‘Arrow’ icon to move down to the next item in a list. Tap the ‘Tick’ icon to confirm your selection or data input. Tap the ‘Return’ icon to return to the previous screen.
  • Page 44 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Graph Tap the “Graph” icon on the left-hand side of the screen to view a graph of your measurement.
  • Page 45 This icon indicates the SR300/SR400 current Battery This icon indicates that the data is saved to internal life. memory. External Memory This icon indicates that the SR300/SR400’s battery is This icon indicates that the data is saved to an external charging. memory source.
  • Page 46 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Rotate Tap the “Rotate” icon to rotate the screen between landscape and portrait mode.
  • Page 47 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester The screen shot saved to the external USB drive. Rotate Tap “Starrett” icon to take a screen shot of the device.
  • Page 48 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Calibration Tap ‘Calibration’ and then the ‘Settings’ icon to see a list of calibration options.
  • Page 49 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Calibration Value Tap ‘Calib. Value” and enter the value you require. Tap the “Save” icon to save the calibration value.
  • Page 50 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Calibration Filter - Type Tap “Filter” and then “Type” to select your required filter option.
  • Page 51 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Calibration Filter – Cut Type Tap “Filter” and then “Cut-Off” to select your required cut-off option.

  • Page 52: Calibration Settings

    Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Calibration Settings Tap “Settings” to enter your required calibration options.
  • Page 53 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Cut-Off Filter Type Tap the “Cut-off” icon to edit the length. Tap the “Filter” icon to edit the type.
  • Page 54 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Measurement Length Range Tap the “Measurement” icon to edit the length. Tap the “Range” icon to edit the range.
  • Page 55 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester ISO 4287 ISO 13565 Tap “ISO 4287” to select parameters. Tap “ISO 13565” to select parameters.
  • Page 56 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester ASME B46.1 Others Tap “ASME B46.1” to select parameters. Tap “Others” to select parameters.
  • Page 57 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Tap “ISO 4287” and then the first “Settings” icon to open Parameter Setting – “Rmr” the “Rmr” settings.
  • Page 58 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Parameter Setting – “Mr%” Tap “Mr%” and then the box where the number is displayed to adjust the setting.
  • Page 59 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Tap “Mr%” and then the “Offset” box to adjust the Parameter Setting – “Mr%” setting. Tap “+/-” icon to select between positive and negative.
  • Page 60 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Parameter Setting – “Meanline” Tap “Meanline” to adjust the setting. Tap “+/-” icon to select between positive and negative.
  • Page 61 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Parameter Setting – “Rpc” Tap “ISO 4287” and then the second “Settings icon to adjust the “Rcp Bandwidth”.
  • Page 62 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Units Tap “Units” to select between “Metric” and “English”.
  • Page 63 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Storage Tap “Store” and then “Store Mode” to select which storage option you require.
  • Page 64 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester New Batch Enter a “Batch Name” and tap “Save” Tap “Store” and then “New Batch” to create a new batch. The Name must be 5 digits or less. •...
  • Page 65 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Keyboard Tap “Number” or “Symbol” icons to enter either numbers or symbols in the “Batch Name”. Tap “Keyboard” icon to switch between the two keyboard values.
  • Page 66 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester View Batch Tap the “Batch Name” to view the data in more detail. Tap “Store” and then “View Batch” to view all saved data.
  • Page 67 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Delete Batch Tap “Store” and then “Delete Batch” and then select a batch. Tap the “Trash” icon to delete the selected batch. Tap the “Trash” icon again to confirm the deletion of the batch.
  • Page 68 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Print Batch Tap the “Batch Name” and then the “Print” icon to print the batch. Tap “Store” and then “Print Batch” to view all saved batches.
  • Page 69 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Print Tap “Print Settings” to select your required printing options. This icon shows that a printer is connected Tap the “Printer” icon on the home screen to print the to the device.
  • Page 70 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Language Tap “Advanced” and then “Language” to select which language you require.
  • Page 71 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Sleep Timer - Battery Tap “Advanced then “Power Saving” and then “Sleep Timer”. Select “Battery” and set a time as the battery sleep timer.
  • Page 72 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Sleep Timer - Charging Tap “Advanced” then “Power Saving” and then “Sleep Timer”. Select “Charging” and set a time as the charging sleep timer.
  • Page 73 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Brightness Tap “Advanced” then “Power Saving” and then select “Brightness”. Set the brightness to the percentage you require.
  • Page 74 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Battery Level Tap “Advanced” then “Power Saving” and then select “Battery Level” to view the current battery level of your device.
  • Page 75 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Stylus Return Tap “Advanced” and then “Stylus Return” to select which option you require.
  • Page 76 Instructions Instruction Menu SR300 and SR400 Surface Roughness Tester Set Zero Tap “Advanced” and then “Set Zero”. Then place unit on a flat surface and press measure. This will center the gage range.
