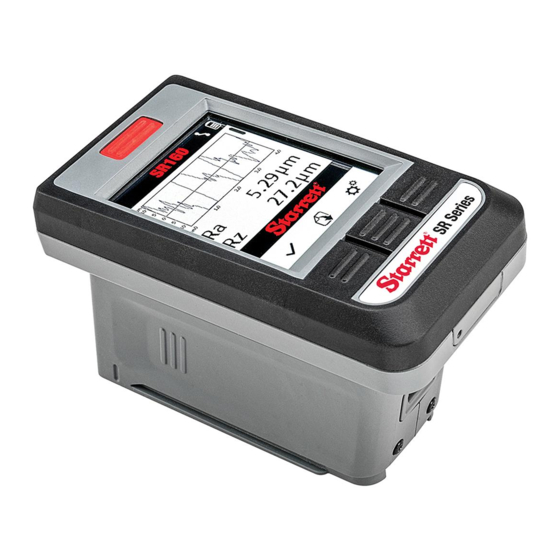

Starrett SR160 User Manual

Surface roughness tester
Hide thumbs Also See for SR160:
Table of Contents

Advertisement

Quick Links

Download this manual
PKG08761- UMSR160
User Manual
Trust Is In The Name

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Starrett SR160

Summary of Contents for Starrett SR160

  • Page 1 PKG08761- UMSR160 User Manual Trust Is In The Name...
  • Page 2 SR160 SURFACE ROUGHNESS TESTER USER MANUAL PKG08761-UMSR160 3...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Components Using the Instrument Function Buttons Device Icons Menu SR160 Overview SR160 Accessories SR160 Dimensions Quick Start Guide 4 PKG08761-UMSR160...

  • Page 4: Components

    COMPONENTS 1. BLUETOOTH TECHNOLOGY - Quick, reliable communication between traverse and display/control unit. 2. PROFILE GRAPH - Clear detailed graph showing measurement area - excellent for visually identifying defects. PKG08761-UMSR160 5...
  • Page 5 COMPONENTS 3. SIMPLE 3-BUTTON NAVIGATION - Instant access to menu option settings. 4. USB MINI CHARGING PORT - Charge from mains or any standard USB charging port. 5. RUBBERIZED MOLDING - Enhanced durability and improved grip provides unbeatable protection in harsh shop floor environments. 6.
  • Page 6 7. DIAMOND STYLUS AND PIEZOELECTRIC PICK-UP - The hard wearing, robust piezoelectric pick-up stylus with diamond tip assures very reliable measurement. 8. SEPARATES - The SR160 splits into a display/control unit and traverse unit via a slide and lock mechanism.
  • Page 7 COMPONENTS FAST AND RELIABLE Simply press the measurement button and in a few seconds a full set of traceable measurement results including a detailed profile graph is displayed. 8 PKG08761-UMSR160...
  • Page 8 COMPONENTS BUILT TO LAST, BY DESIGN Impact resistant rubberized moldings surround a recessed, Mylar protected high durability screen making the unit robust. PKG08761-UMSR160 9...
  • Page 9 SR160 SURFACE ROUGHNESS TESTER THIS IS A STARRETT USER GUIDE FOR THE SR160 SURFACE ROUGHNESS TESTER. ALL SPECIFICATIONS IN THIS DOCUMENT ARE CORRECT AT TIME OF PRODUCTION AND ARE SUBJECT TO CHANGE. PLEASE CONTACT STARRETT FOR FURTHER INFORMATION. PKG08761-UMSR160 11...

  • Page 10: Using The Instrument

    Measure button Color screen Traverse unit Status LED power button USB Charging port 3 Menu buttons Pick up and stylus SR160 OPERATION MODE 'Connected' mode 'Separated' mode Slides apart SR160 STORAGE MODE 'Connected' mode 'Storage' mode Slides apart 12 PKG08761-UMSR160...

  • Page 11: Function Buttons

    ENGLISH FUNCTION BUTTONS UNIT POWER/MEASURE BUTTON - SEPARATED MODE POWER • Both the display unit and the traverse unit will need to be powered On/ Off individually. There is no specific order of preference. Hold the red power button for 3 seconds or more to switch Off/On. MEASURE •...

  • Page 12: Device Icons

    ENGLISH DEVICE ICONS Battery level/ Charging indication Connectivity status Measurement profile graph Page tabs Measurement results Calibration menu Settings Page down 14 PKG08761-UMSR160...

  • Page 13: Menu

    ENGLISH MENU FONT SIZE (LARGE/SMALL) Press the settings button to enter the settings menu. Select the size of font to use in displaying the measurement results. There are two size options available to choose from – Large and Small. Press the to toggle between the 2 options.
  • Page 14 ENGLISH UNITS (µM/µIN) Press the settings button to enter the settings menu. Press the down arrow button to scroll down to the units selection line. Press the to toggle between the 2 options – µm (Metric) or µin (English). Press the check button to accept the setting and exit the settings menu. Metric units (µm) English units (µin) 16 PKG08761-UMSR160...
  • Page 15 ENGLISH PARAMETERS (R?/P?) Press the settings button to enter the settings menu. Press the down arrow button to scroll down to the Parameter setting line. Press the to toggle between the two ISO 4287 parameter options available to display – Roughness (R) or Primary (P). Press the check button to accept the setting and exit the settings menu.
  • Page 16 ENGLISH PROFILE GRAPH (ON/OFF) Press the settings button to enter the settings menu. Press the down arrow button to scroll down to the Graph option line. Press to toggle between the option of displaying or not displaying the graph on the results screen. Press the check button to accept the setting and exit the settings menu.
  • Page 17 ENGLISH CALIBRATION Press the calibration button to enter the calibration menu. In the calibration screen, the default or last saved calibration Ra value will be displayed. To change this calibration value, press the settings icon. Then use the up (+) and down (-) buttons to adjust the calibration Ra value to the desired number.
  • Page 18 ENGLISH Place the SR160 on the calibration standard provided with the unit (or any other certified standard). Press the measure button to take a measurement on the calibration standard. The measured Ra value will be displayed at the end of the measurement.
  • Page 19 ENGLISH FACTORY RESET To reset the SR160 to factory settings, hold the settings button for about 3 seconds. Press the delete settings button. In the reset screen, press the check button to do a factory reset or the cross(x) button to exit and return to the main results screen.
  • Page 20 ENGLISH TEST MODE Test Mode is initiated when the settings button is held for 3 seconds and the test mode icon is pressed. This is for internal service and diagnostic purposes and should NOT be used by the customer. If at any time the test mode is inadvertently activated, switch off the unit completely and switch back on to return the unit to normal operation.
  • Page 21 ENGLISH ERROR CODES The following are the error codes associated with the SR160 and their meanings: • E1  Motor sensor failure • E2  Motor sensor misaligned • E3  Motor speed failure • E4  Traverse unit settings lost, returned to default •...

  • Page 22: Sr160 Overview

    ENGLISH SR160 OVERVIEW WHAT IT DOES The SR160 is a superior portable surface roughness tester that measures multiple roughness parameters with a 1-button click. Roughness measurement parameters such as Ra, Rz, Rp, Rv and Rt are displayed on a brightly lit intuitive 2.4" LCD color display. Its rechargeable battery operation makes it a convenient way of performing fast, easy and precise on-the-spot measurements in almost any environment and surface.
  • Page 23 ENGLISH KEEPING IT SIMPLE The surface roughness testing philosophy keeps the process simple. It is the perfect tool for any inspector to check surface roughness even in the most demanding applications. • Incoming inspections • Final inspection before shipment • Process control on the production line •...
  • Page 24 USER-FRIENDLY, NOT USER-HOSTILE! The SR160 is a simple and easy-to-use as any Smart Phone. Users have the advantage of the intuitive quick access 3-button menu and its crisp 2.4" daylight readable industrial color LCD screen.

  • Page 25: Sr160 Accessories

    Air and water tight case that provides the SR160 with extra protection for Portable power bank for charging the safe storage and/or transportation. SR160 on the go. Can be charged by USB, mains AC or sunlight. CALIBRATION STANDARD COMPACT PORTABLE CARRY BAG...
  • Page 26 ENGLISH INSTRUMENT PERFORMANCE GAGE Resolution 0.4µin (0.01µm) Range (Ra) Up to 1600µin (40µm) Range (Rz, Rv, Rp, Rt) Up to 7800µin (199µm) MEASUREMENT Repeatability 2% of value + noise Accuracy 5% of reading + 4µin (0.1µm) Noise 4µin (0.1µm) Process Automatic software calibration CALIBRATION Standard...

  • Page 27: Sr160 Dimensions

    1.8IN (45mm) WHAT IS A SKID? The SR160 is a skidded device. The skid guides the pick-up along the workpiece, with the workpiece itself forming the datum for measurement. This method usually eases set-up by reducing the need for leveling. It also reduces the effects of vibration due to a much smaller measuring loop.
  • Page 28 • Suitability – It acts as a filter to remove the highest surface frequencies that are more reliably measured in a controlled environment. Other Starrett instruments use a stylus with a tip radius of 80μin (2μm). This smaller radius coupled with an inductive gage head having low contact force enables analysis of even the smallest surface imperfections.

  • Page 29: Quick Start Guide

    ENGLISH QUICK START GUIDE x 8 h 5 mm 32 PKG08761-UMSR160...
  • Page 30 ENGLISH 300 s Ra = 6.0 µm Ra = 0.40 µm Discover other precision measuring tools on our website.
