CommScope FOSC-OC-6 Installation Instruction

Us fosc tray a size with integrated splitter

Kit content

2.1

The first tray is secured against the tray tower. When necessary,

replace the appropriate tray by the splitter tray.

To remove this tray, loosen the screws and remove the bracket.

Alternatively, the splitter tray can be mounted on top of the already

installed trays.

Note: in a European FOSC A or FOSC B closure always install the

FOSC-OC-6 at the top of the installed trays.

FOSC-OC-6

I N S T A L L A T I O N

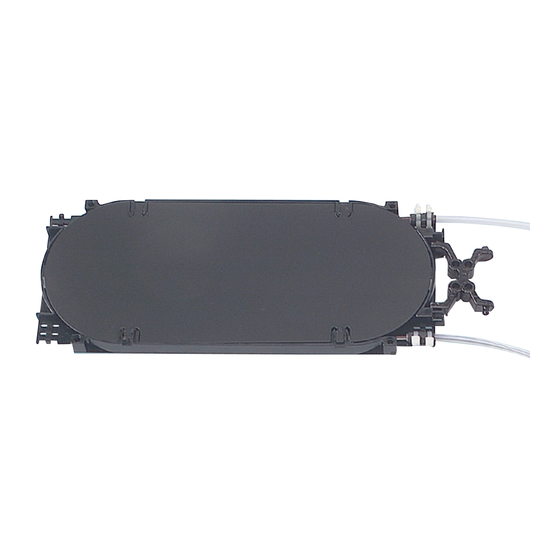

US FOSC tray (A size) with integrated splitter

2.2

Use a screwdriver to bend one of the legs and remove the tray

out of the tower.

I N S T R U C T I O N

Table of Contents

Do you have a question about the FOSC-OC-6 and is the answer not in the manual?

Page 1 To remove this tray, loosen the screws and remove the bracket. Alternatively, the splitter tray can be mounted on top of the already installed trays. Note: in a European FOSC A or FOSC B closure always install the FOSC-OC-6 at the top of the installed trays.
Page 2 The tray can be inserted in the tray tower by aligning the tray Route the tranportation tubes to the appropriate tray(s) as pins (on the tray legs) with holes in the tray tower. Squeeze the tray legs shown. and slip the tray into the tray tower. Re-install the bracket.
Page 3 Identification Identification can be done by means of • colored fibers • colored tubes • marked tubes • colored tapes • flags. Make sure not to lose ID. Secure the transportation tube with two tie-wraps. At the end of each fiber, a flag can be attached with the identification of the fiber.
