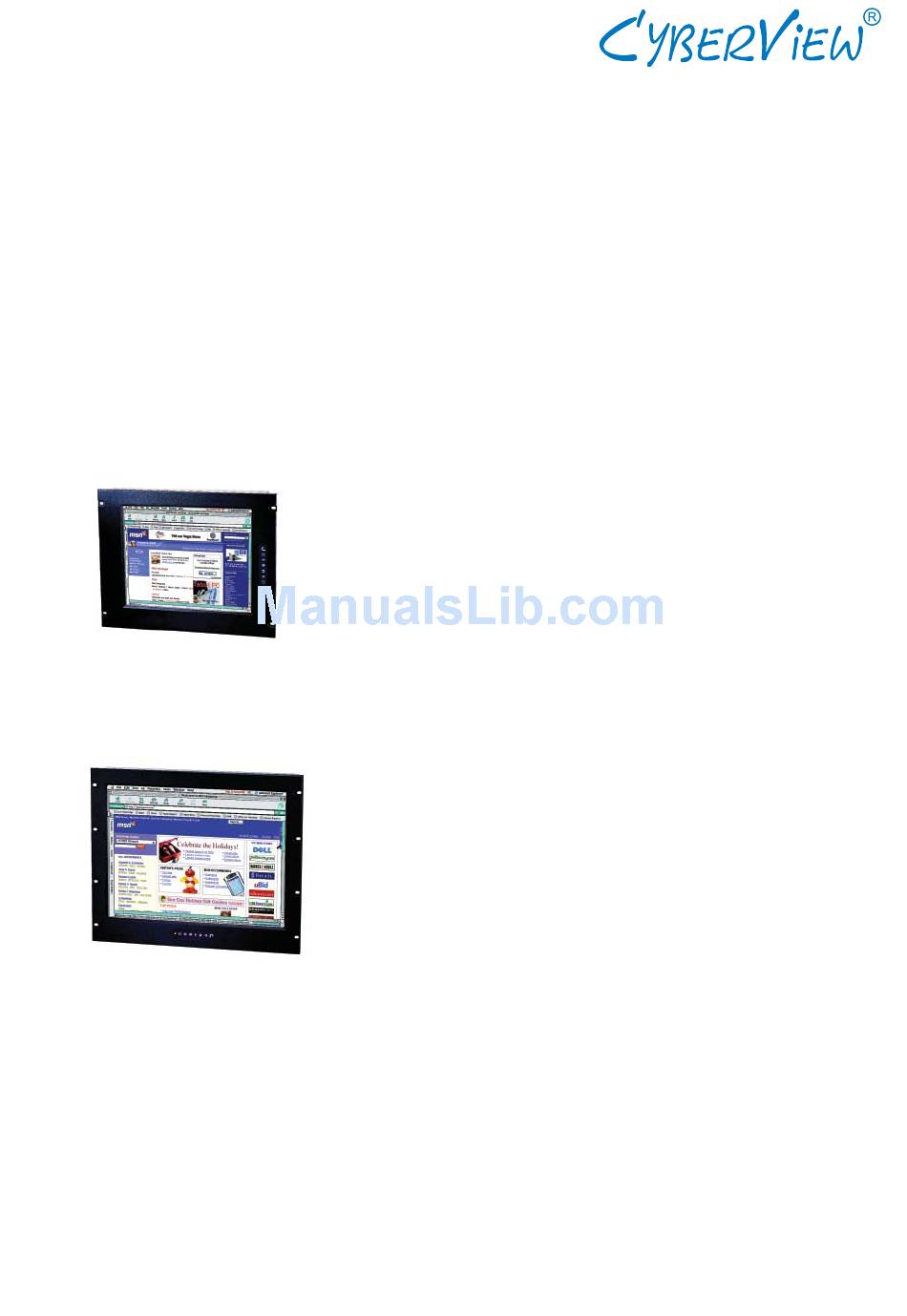

User Manual

Rackmount LCD Display
15", 17", 19", 20" screen size
Options :
- AV / BNC
- Touchscreen
- Front NEMA 4 / IP 65 protection
- DC power
- DVI
Models
RP615 / 717 / 819 Series
Models
RP920 Series
- Ultra high resolution 1600 x 1200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberView RP-615 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Austin Hughes Electronics CyberView RP-615

  • Page 1: User Manual

    User Manual Rackmount LCD Display 15", 17", 19", 20" screen size Options : - AV / BNC - Touchscreen - Front NEMA 4 / IP 65 protection - DC power - DVI Models RP615 / 717 / 819 Series Models RP920 Series - Ultra high resolution 1600 x 1200...
  • Page 2: Table Of Contents

    Chapter 1 Getting Started Important Safeguards...1 Regulatory Notice...2 Package Contents...3 Before Installation...4 Unpacking...4 Optional Accessories...4 Peripheral Products...5 Structure Diagram...5 Installation...6-7 1.10 Connection...8 Chapter 2 Operation On-screen Display Operation...8 On-screen Menu...9 Chapter 3 LCD Specifi cation Chapter 4 AV, BNC, DVI Options DVI-D Option...11 S-Video + RCA Input Option...11 S-Video + BNC Input Option...13...
  • Page 3: Important Safeguards

    1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...
  • Page 4: Regulatory Notice

    1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without no- tice.
  • Page 5: Package Contents

    1.3 Package Contents Rackmount LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1pc Chapter 1...
  • Page 6: Before Installation

    1.4 Before Installation ■ It is very important to locate the Rackmount LCD Display in a suitable environment. ■ The surface for placing and fi xing the Rackmount LCD Display should be stable and level or mounted into a suitable cabinet.
  • Page 7: Peripheral Products

    1.7 Peripheral Products Item DB-15 KVM Cat5 KVM KVM Extender Keyboard Drawer 1.8 Structure Diagram Front view SAMSUNG Class A TFT LCD panel LCD membrane button Power Adapter Bracket Model No. Description IP-802 / IP-1602 8 / 16-port IP PS/2 KVM CV-802 / CV-1602 8 / 16-port two console PS/2 KVM CV-401 / CV-801 / CV-1601...
  • Page 8: Installation

    Chapter 1 1.9 Installation For RP615 / 717 / 819 series ■ Install each screws shown in Figure 1. Figure 1. ■ Fixed the LCD into the rack. * M6 screws is not provided. Figure 2.
  • Page 9 Chapter 1 1.9 Installation For RP920 series ■ Install each screws shown in Figure 3. Figure 3. ■ Fixed the LCD into the rack. * M6 screws is not provided. Figure 4.
  • Page 10: Connection

    1.10 Connection DB-15 VGA female connector The Rackmount LCD Display are hot-pluggable, but components of connected Caution : devices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and un- plugging cables while servers and KVM are powered on may cause irreversible damage of the servers, KVM and Rackmount LCD Display.
  • Page 11: On-Screen Menu

    2.2 On-screen Menu For RP615 / 717 / 819 series MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brighthtness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level).
  • Page 12 2.2 On-screen Menu For RP920 series Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue: Adjust the screen hue value...
  • Page 13: Lcd Specifications

    3.1 LCD Specifi cations Item Form Factor LCD Manufacturer Diagonal Size Max. Resolution Brightness (cd/m²) Color Support Contrast Ratio (typ.) Viewing Angle (H/V) Display Area (mm) Tr Response Time (ms) VGA Signal Input Sync. Type Resolution Plug & Play DDC Console Port (Combo) Power Input Power Consumption...
  • Page 14: Dvi-D Option

    4.1 DVI-D Option Remarks ■ s with a 6' DVI-D cable Package include 4.2 S-Video + RCA Input Option Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 4.3 S-Video + BNC Input Option Remarks ■ Package includes an extra 6ft S-Video cable DVI-D S-Video S-Video BNC...
  • Page 15: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    4.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:...
  • Page 16: Touchscreen Options

    5.1 Touchscreen Options For USB touchscreen For serial touchscreen e-Resistive Model -15TRB / -15TRS Screen size Interface Optical transmittance Surface hardness Operating system 3M Capacitive Model -15TCB_3M / -15TCS_3M Screen size Interface Optical transmittance Surface hardness Operating system Remarks ■ USB touchscreen package includes an extra 6ft USB cable, quick reference guideline and CD disc ■...
  • Page 17: Front Nema 4 / Ip65 Options

    6.1 Front NEMA 4 / IP65 Options Rear case LCD panel 4mm protective glass (Front NEMA 4 / IP65 protection) Aluminum front panel Remarks ■ 4mm thickness of protective glass is not toughened one, please handle it carefully. P.15 Chapter 6...
  • Page 18: Dc Power Options

    7.1 DC Power Options Model Input rating Input voltage: Input range: Input current - No load - Full load Output rating Output voltage: Output current: Effi ciency Remarks ■ Package does not include power cord and AC power adapter DC Power input 12-Volt 24-Volt 9 ~ 18V...
  • Page 19: Troubleshooting

    Chapter 8 8.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer.
  • Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no reponsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. Product Dimension Packing Dimension...
