AVANT A21047 Operator's Manual For Attachment

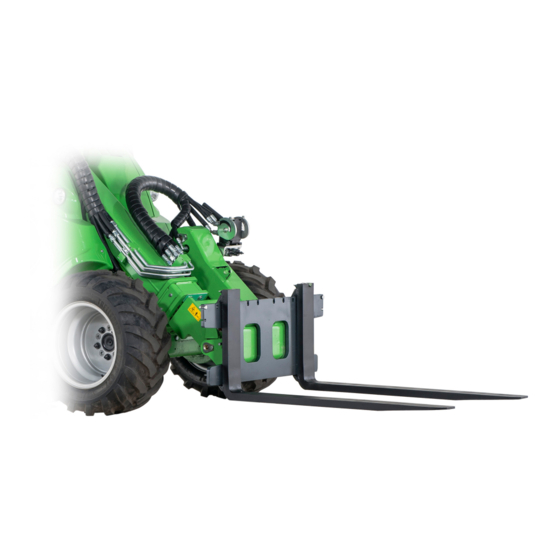

Pallet forks
Hide thumbs
Also See for A21047:
- Operator's manual (12 pages) ,
- Operator's manual for attachment (22 pages)
Related Manuals for AVANT A21047
Summary of Contents for AVANT A21047

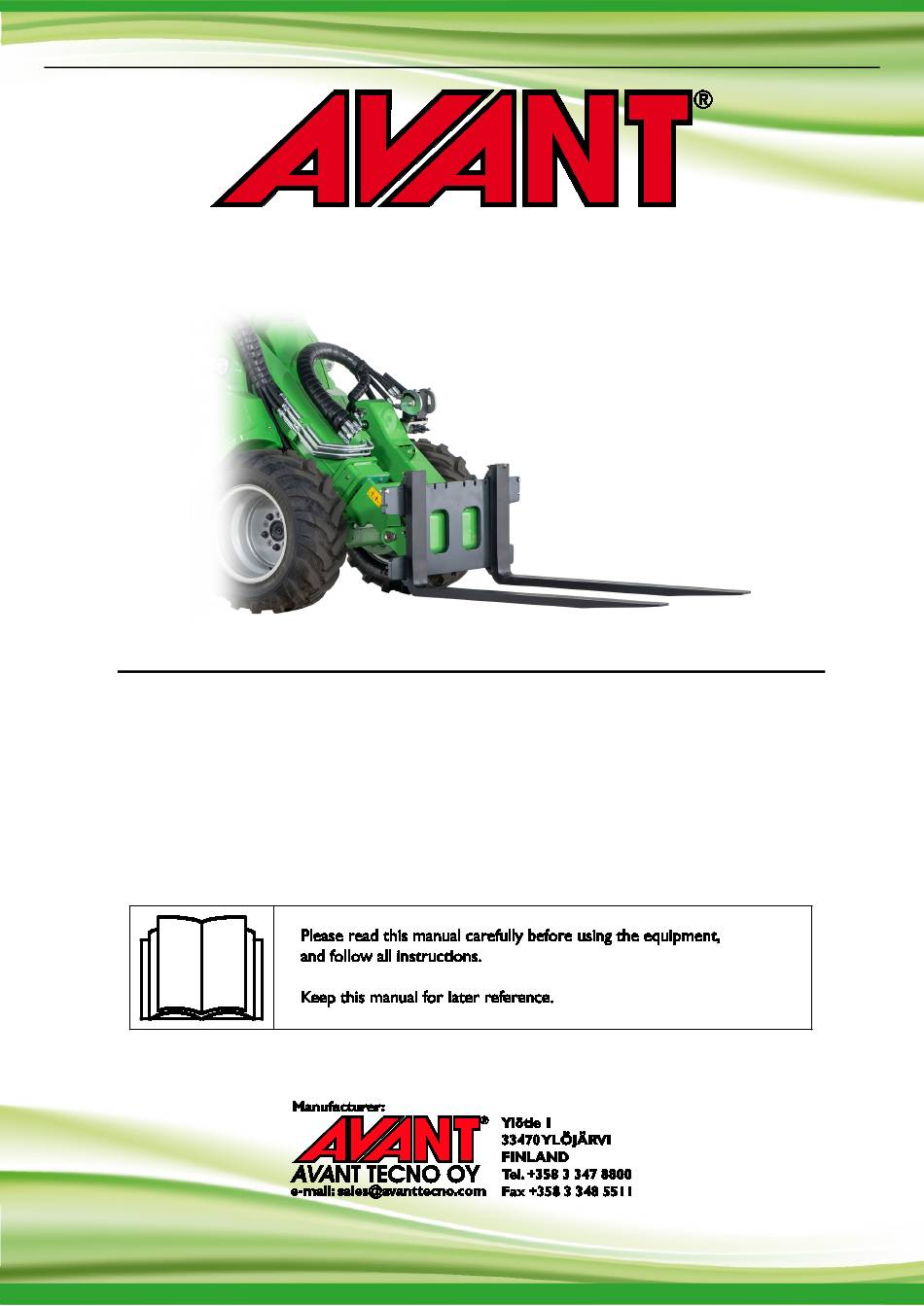

- Page 1 English Pallet Forks 2019 1 Operator's Manual for Attachment Pallet Forks Product number 850 mm SD A21047 1100 mm HD A21039 1200 mm XHD A36589 Back frame (option) A36346 www.avanttecno.com A433751 2019 1 EN 2015-...
- Page 2 Pallet Forks 2019 1...
-
Page 3: Table Of Contents
Pallet Forks 2019 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE ......................5 3. SAFETY INSTRUCTIONS FOR THE PALLET FORKS ..............7 4. TECHNICAL SPECIFICATIONS ......................11 Safety labels and main components of the attachment ..................11 5. ASSEMBLING THE PALLET FORKS ....................13 Assembling the pallet forks ..........................13 Attaching pallet forks to loader ...........................15 6. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
With Avant loader, handling of loads is easy also at areas where conventional fork-lift trucks are impracticable. An Avant loader that is equipped with pallet forks is a versatile machine for load handling tasks all year round, indoors and outdoors. - Page 6 6 (36) Table 1 - Pallet Forks - Compatibility with Avant loaders Avant 525LPG series 2 313S 320S 755i 860i 225LPG 760i A21039 850 mm SD • • • • • • (•) A21047 1100 mm HD (•) (•) •...
-
Page 7: Safety Instructions For The Pallet Forks
7 (36) 3. Safety instructions for the pallet forks Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 See also the information in this manual. Be especially careful when the load sensor indicator is activated, if your loader is fitted with a load sensor system. Contact your Avant dealer if you are unsure about limits of your loader.
- Page 9 9 (36) Never use the attachment to lift or to transport persons or as any kind of work platform even temporarily. Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as WARNING branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
- Page 10 10 (36) Risk of asphyxiation - Never operate a loader with a combustion engine indoors. Using a loader that has a combustion engine (Diesel, gasoline, or LPG) in small confined spaces or in poorly ventilated areas can cause dangerous levels of Carbon Monoxide DANGER (CO) and Carbon Dioxide (CO ) within minutes after starting the loader, resulting in loss...
-
Page 11: Technical Specifications
A36346, 21 kg Back frame (option): See page 13 Suitable AVANT loader: See Table 1 on page 5 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 12 Attachment identification plate Table 4 - Pallet Forks - Main components Frame with Avant quick attach brackets Fork arm 850 / 1100 / 1200 mm Arm locking End stopper bolts or bolt on back frame/guard fitting...
-
Page 13: Assembling The Pallet Forks
13 (36) 5. Assembling the Pallet Forks The pallet forks may be delivered unassembled for easier transport. The pallet forks can be easily assembled by following the instructions below; tools are required only to tighten the bolts which lock the backrest extension and the forks on the frame. - Page 14 14 (36) 3. Fit back frame or retaining bolts Fitting the back frame: Fit the back frame with two screws at both ends of its frame. 3A. Install back frame If the backrest extension will not be fitted: The two screws delivered with the pallet forks must be fastened to the holes at both ends of the frame.
-
Page 15: Attaching Pallet Forks To Loader
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 16 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 17: Working With Pallet Forks
17 (36) 6. Working with pallet forks Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Checks Before Use
18 (36) Risk of falling from height and crushing under bucket or loader - Never use a bucket as a lifting platform or to carry people. Never use the loader or its attachments to lift WARNING persons or as any kind of work platform even temporarily. Never climb on the attachment. -
Page 19: Using The Pallet Forks
For creating the load charts, the following distances are used as the center of gravity of the load on the pallet forks. The distance depends on the loader model as shown below: 200 series loaders 400 series loaders 400 mm Avant 523 Other loader models 500 mm... - Page 20 20 (36) This distance is the horizontal distance between the vertical face of fork arm and the center of gravity of the load on pallet forks. Note that the vertical position of the load is not directly relevant to lifting capacity of the loader, but high vertical position of a load will decrease the lateral stability of the loader.
-
Page 21: Working Load Limit
The Working Load limit for the pallet forks depends on the pallet for model: Pallet fork model A21047 A21039 A36589 Working load limit*... -
Page 22: Rated Operating Capacity
22 (36) 6.3 Rated Operating Capacity Rated Operating Capacity is the maximum allowed load for each loader model when taking into account the conditions listed below. The Rated Operating Capacity is determined as 60% of the tipping load in the position indicated in the figures and tables in this chapter. - Page 23 23 (36) Risk of tipping over - Observe the Rated Operating Capacity of the loader. The maximum load that can be lifted with a loader, the Rated Operating Capacity, depends on several factors, such as the following: The model of the loader and the pallet fork WARNING In this operator's manual the ROC is calculated without the rear guard installed.
-
Page 24: Rated Operating Capacity - 200 Series Loaders
24 (36) 6.3.1 Rated Operating Capacity - 200 series loaders Table 5 - Pallet fork 1100 A21047 - Rated Operating Capacity - Avant 200 series Position of loader boom AVANT loader model 240 kg 170 kg 225LPG 200 kg 140 kg... -
Page 25: Rated Operating Capacity - 400 Series
25 (36) 6.3.2 Rated Operating Capacity - 400 series Table 6 - Pallet fork 1100 A21047 - Rated Operating Capacity - Avant 400 series Position of loader boom AVANT loader model 305 kg 265 kg 230 kg 195 kg 255 kg... -
Page 26: Rated Operating Capacity - 523
26 (36) 6.3.3 Rated Operating Capacity - 523 Table 7 - Pallet fork 1100 A21039 - Rated Operating Capacity - Avant 523 Position of loader boom AVANT loader model 445 kg 395 kg 340 kg 285 kg 370 kg 325 kg... -
Page 27: Rated Operating Capacity - 528-640 And R Series
27 (36) 6.3.4 Rated Operating Capacity - 528-640 and R series... - Page 28 28 (36) Table 8 - Telescopic Jib Boom A21039 - Rated Operating Capacity - Avant 528. 530, 630, 635, 640, R28, Position of loader boom AVANT loader model 515 kg 460 kg 400 kg 340 kg 440 kg 385 kg...
-
Page 29: Rated Operating Capacity - E-Series
29 (36) 6.3.5 Rated Operating Capacity - e-series Table 9 - Pallet fork 1100 A21039 - Rated Operating Capacity - Avant e series Position of loader boom AVANT loader model 555 kg 495 kg 430 kg 365 kg 465 kg... -
Page 30: Rated Operating Capacity - 700 Series
30 (36) 6.3.6 Rated Operating Capacity - 700 series Table 10 - Pallet fork 1100 A21039 - Rated Operating Capacity - Avant 700 series Position of loader boom AVANT loader model 735 kg 655 kg 570 kg 485 kg 630 kg... -
Page 31: Rated Operating Capacity - 800 Series
31 (36) 6.3.7 Rated Operating Capacity - 800 series Table 11 - Pallet fork 1200 A36589 - Rated Operating Capacity - Avant 800 series Position of loader boom lAVANT loader model 900 kg 795 kg 685 kg 575 kg 860i... -
Page 32: Operating With A Tilt Adapter
±45º (model A36505) or ±360º (model A424406). Read the instructions provided with the tilt adapter and in the operator's manual of the loader. More information about the tilt adapters is available from your AVANT retailer or from the AVANT web pages at www.avanttecno.com. -
Page 33: Maintenance And Service
33 (36) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 34: Warranty Terms
34 (36) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
