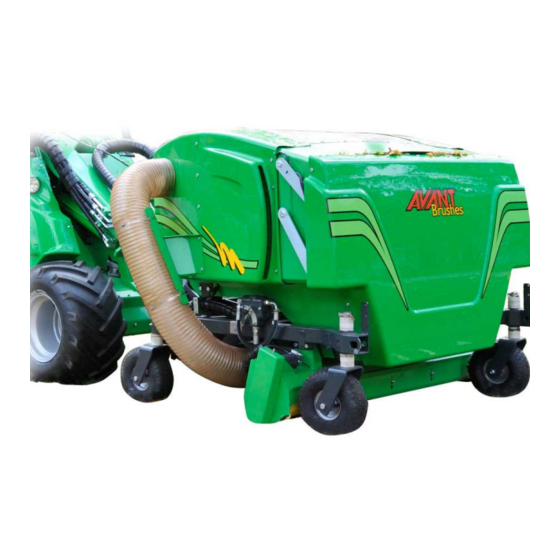

Vacuum brush
Hide thumbs Also See for 600 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual for Attachment
Operator's
Operator's
Operator's
Product number:
Please read this manual carefully before using the equipment, and follow all
instructions.
Keep this manual for later reference.
manual for Attachment
manual for Attachment
manual for Attachment
V
a
c
u
u
m
B
r
u
V
a
c
u
u
m
B
r
u
600-700-series loaders:
Side brush:
Vacuum brush 2013 1
s
h
s
h
A34714
A34683

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVANT 600 Series

Summary of Contents for AVANT 600 Series

  • Page 1 Vacuum brush 2013 1 Operator’s Operator’s Operator’s Operator’s manual for Attachment manual for Attachment manual for Attachment manual for Attachment Product number: 600-700-series loaders: A34714 Side brush: A34683 Please read this manual carefully before using the equipment, and follow all instructions.
  • Page 2 Vacuum brush 2013 1...

  • Page 3: Table Of Contents

    Vacuum brush 2013 1 CONTENTS 1. Foreword ..........................4 2. Designed purpose of use......................5 3. Safety instructions for the vacuum brush ..................6 4. Vacuum brush specifications ....................7 4.1. Safety labels ........................... 5. Assembly of the vacuum brush....................9 5.1. Attaching the vacuum brush to the loader..................5.2.

  • Page 4: Foreword

    4(22) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of product development and experience. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment.

  • Page 5: Designed Purpose Of Use

    2. Designed purpose of use The AVANT vacuum brush is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. The vacuum brush is intended for collecting of tree leaves or other light materials in parks, lawns, yards etc.

  • Page 6: Safety Instructions For The Vacuum Brush

    6(22) 3. Safety instructions for the vacuum brush Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful, and improper or careless use may cause serious personal injury or property damage. Due to this, you should carefully familiarise yourself with the manuals of both the loader and the attachment before starting operation.

  • Page 7: Vacuum Brush Specifications

    22,5 MPa (225 bar) Maximum input of hydraulic energy: 80 l/min Suitable Avant loader: See Table 1 Recommended operating speed: 630-750: 2 pumps, ½ to full RPM (40-70 l/min) Contact your Avant representative for the availability and istallation of the options.

  • Page 8: Safety Labels

    A46798 A46771 A46772 A46802 A46803 Table 3 – Main components of the vacuum brush Frame with Avant quick coupling plate Support wheels, 4 pcs Collecting nozzle with rotating broom Brush rotating speed adjustment Side brush (optional equipment) Collecting box Emptying door of collector box...

  • Page 9: Assembly Of The Vacuum Brush

    9(22) 5. Assembly of the vacuum brush The vacuum brush is ready for use as delivered. Mount the attachment, its hydraulic hoses, and electric harness according to the following instructions, and practise its use in a safe area. Read the following instructions for mounting, using and maintenance of the attachment before starting the equipment.

  • Page 10: Connecting And Disconnecting The Hydraulic Couplings

    5.2. Connecting and disconnecting the hydraulic couplings The default connector for hydraulic couplings is the multiconnector system. If you want to change the type of the hydraulic couplings of the attachment or the loader, contact your Avant dealer or service point for instructions or installation services.

  • Page 11: Uncoupling The Attachment And Storage

    11(22) Connecting conventional quick couplings (alternative couplings for some loader models): Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as shown above. If the pressure is not released, but the couplings are disconnected, reconnecting the fittings may be difficult.

  • Page 12: Instructions For Use

    12(22) 6. Instructions for use Check the attachment and the operating area before starting to work. Quick inspection of the vacuum brush prior use is part of ensuring safety and the best performance of the equipment. Practise the use of the attachment and its controls at an open and safe area.

  • Page 13: Use

    13(22) 6.2. Use The vacuum brush is started by turning the auxiliary hydraulics control lever of the loader to it’s locked position. The vacuum unit, brush and optional side brushes start at the same time. For the best performance, set the attachment floating system as described in chapter page. Practise the use of the equipment at a sufficiently open area, where are no obstacles.

  • Page 14: Adjusting The Working Height

    14(22) Safety valve: The attachment is fitted with a safety valve, which is intended to stop the hydraulic flow when the attachment is lifted off from the ground. The valve will stop the rotating brush or brushes when lifting the broom or when the floating has been set too low.

  • Page 15: Adjusting The Rotating Speed Of The Brushes

    15(22) 6.4. Adjusting the rotating speed of the brushes The vacuum brush is equipped with a valve for controlling the rotating speed of the brushes steplessly. The adjustment will affect all brushes the same way. Adjusting the rotating speed is necessary when operating on sandy or fragile surfaces.

  • Page 16: Emptying The Collector Box

    16(22) 6.6. Emptying the collector box The collector box is emptied directly from the driver’s seat with the help of the electrically opening collector door. Open the door only when at the emptying site and empty the box by lifting and tilting it forward. During operation the collected trash is packed into a compact package, and in dry conditions it will be easy to empty without assisting it by hand.

  • Page 17: Maintenance And Servicing

    Also, the condition of the brushes and hydraulic components must be monitored regularly. Spare parts are available from your nearest AVANT representative. Separate spare parts catalogue is also available. Please Contact your dealer if you have any additional questions, or if you need any maintenance services.

  • Page 18: Checking Hydraulic Components

    Finding any of these faults means that the hydraulic hose or component must be replaced. Spare parts are available from your nearest AVANT retailer or service point. Leave the repair work to professional service technicians, if you don’t have experience about hydraulic assemblies and how to perform the repairing safely.

  • Page 19: Checking And Sharpening The Shredding Blades

    If the rotor remains out of balance after cleaning, it has probably been damaged. A damaged rotor must be repaired or replaced to prevent damage to the hydraulic motor. In this case, please contact the AVANT service.

  • Page 20: Lubricating The Equipment

    8. Terms of warranty Avant Tecno Oy grants a warranty of one year (12 months) for the vacuum brush from the date of purchase. The warranty covers repair costs as follows: •...

  • Page 21: Appendix 1: Ec Declaration Of Conformity

    Hydraulisk lövsug; arbetsredskap för Avant lastare. Lövsugen kan utrustas med en eller två sidoborstar A34683. Description: Hydraulic vacuum brush; attachment for Avant loaders. The vacuum brush can be equipped with one or two side brushes A34683. Beschreibung: Hydraulische Laubkehrmaschine; Anbaugerät für Avant Radlader. Maschinen kann mit dem Seitenbesen A34683 ausgerüstet werden.

This manual is also suitable for:

700 seriesA34714A34683

Table of Contents
