1.
Install receptacles into
power block.
2.
Place Communication and
Receptacle Templates.
Steelcase Part No. T500940SR.
(Customer Service)
3.
Attach skin to frame. press
against template to make impression.
Remove skin and template.
NOTE: This equipment has been tested and
found to comply with the limits for a Class
A digital device, pursuant to part 15 of the
FCC rules. These limits are designed to
provide reasonable protection against
harmful interface when the equipment is
operated in a commercial environment.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential
area is likely to cause harmful interference
in which case the user will be required to
correct the interference at his own expense.

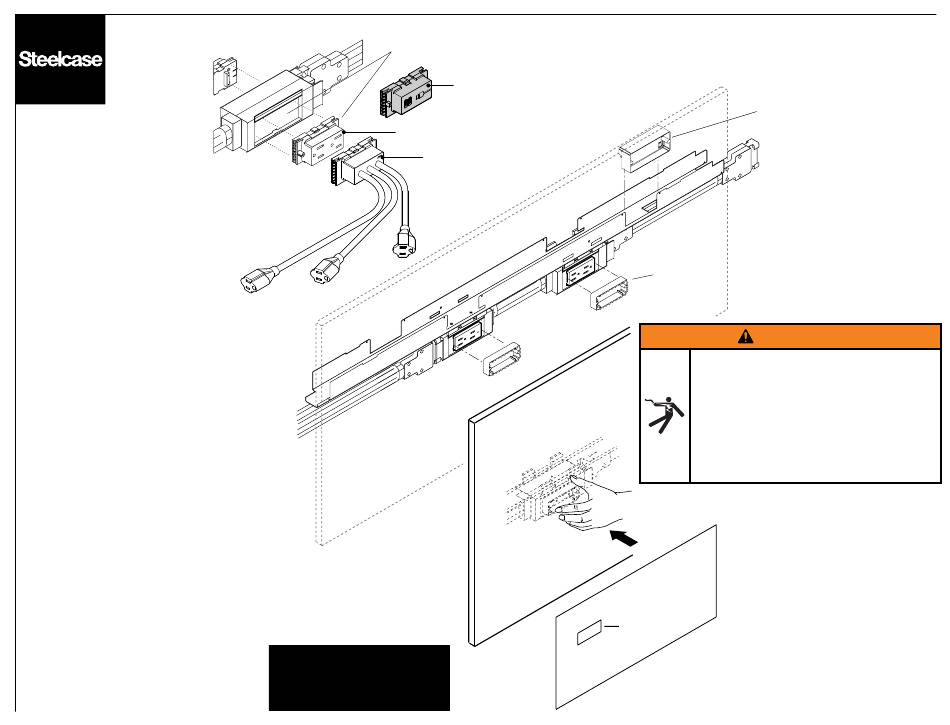

Match Receptacle Back Color to Block Color for proper keying.

USB RECEPTACLE

OR
RECEPTACLE
FLEX RECEPTACLE
OR
NOTE: Be sure electrical
products are in final position
before making Impressions
Communication/Data Port Template
Receptacle
Template
WARNING
Risk of Fire or Electric Shock
• Receptacle Templates should always be
used when marking receptacle locations
on the back of panel skins.
• If the templates are not used, then cut
opening 1-1/2" x 3-5/8", allowing clearance
for the mounting screws.
Impression
Page 3 of 10
