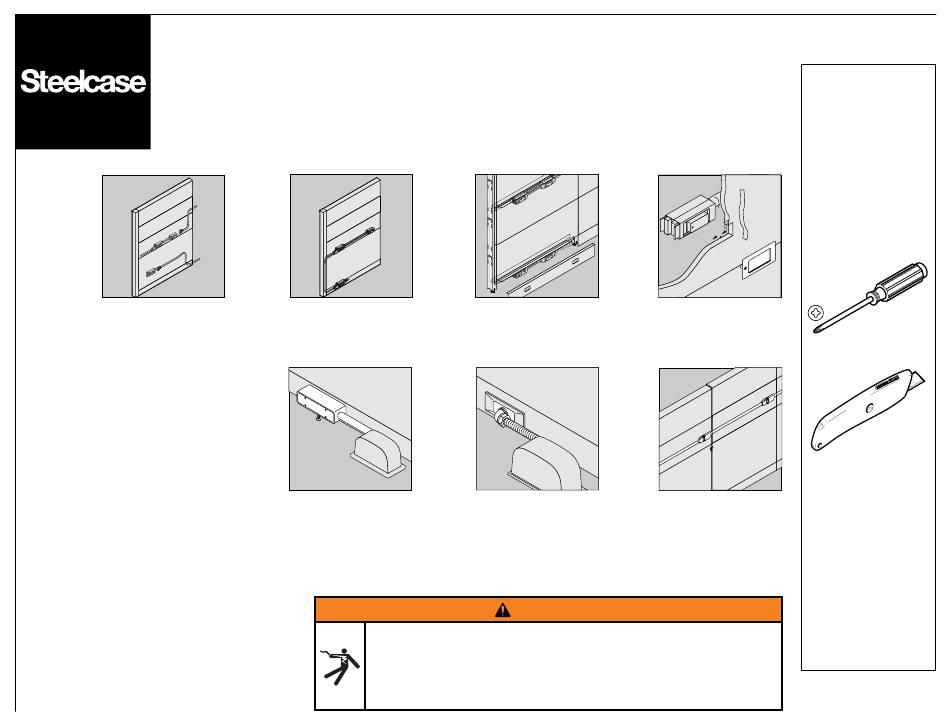

Pass Thru Power Feed - Floor Feed - Floor If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. WARNING (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2
Power Kit Power Kit NOTE: RETAINER CLIPS ARE ATTACHED TO ALL WIDTHS OF Slide end of power kit into vertical POWER KITS. junction, Then slide back into other vertical junction. Engage power tray latch. Connect end of power whip to the next power block.
USB RECEPTACLE Communication/Data Port Template RECEPTACLE FLEX RECEPTACLE Install receptacles into power block. Place Communication and Receptacle Templates. Steelcase Part No. T500940SR. Receptacle (Customer Service) Template Attach skin to frame. press against template to make impression. WARNING Remove skin and template.
Page 4
Tip: Use a sharp knife to cut skin. Cut skin back where impressions are. Be careful not to cut through the material. Remove inside pieces exposing the material. Cut an "X" from corner to corner. WARNING Pull material through hole and secure with tape.
Page 5
Change of Height Run the power whip through the frame beam. Connect the power whip to the power block. Tie up conduit with cable tie. NOTE: RETAINER CLIPS ARE ATTACHED TO ALL WIDTHS OF POWER KITS. Page 5 of 10 939504633 Rev Y...
Page 6
Standard Power In Feed - Floor Install the floor power infeed into the receptacle opening of the power block. Wrong Route base power-in harness through the backside of the base trim knockout before hard wiring. .015 Min. Hardwire the harness to junction box. Attach jumper cover.
Page 7
Multipurpose Power In Feed - Strain Relief Installation Install a strain relief bracket to one of the following locations: The underside of a utility tray, the top or bottom of a beam, or the inside face of a junction post. Drill a pilot hole for the strain relief bracket mounting screw.
Page 8
New York Power In Feed - Floor Attach the harness to the next power block down. Insert wires from harness into the junction box. Make wire connections and assemble junction box. NOTE: THE QUALIFIED ELECTRICIAN CAN CUT THE POWER IN FEED HARNESS TO LENGTH (WIRE END), MAKING SURE THE UL LABEL IS INSTALLED ON HARNESS.
Page 9
Pass Thru Power Feed pass thru power harness from panel to panel and connect. Page 9 of 10 939504633 Rev Y...
3+1 Powered by Separate Panels 3+1 Powered by Single Panel Line 1 (Black) LINE 1 (Black) Line 2 (Red) LINE 2 (Red) Line 3 (Blue) LINE 3 (Blue) L1/L2/L3 Neutral (White) LINE 4 (Pink) NEUTRAL Systems Ground (Green) L1/L2/L3 Neutral (White) GROUND NEUTRAL L4 Neutral (Gray)
