Velleman VIS2 Manual

1. Introduction & Features
Thank you for buying the VIS2 ! Read this manual carefully before bringing the device into service. This device
rotates both clockwise and counterclockwise and starts/stops instantaneously without skidding. The housing is made
of plastic.

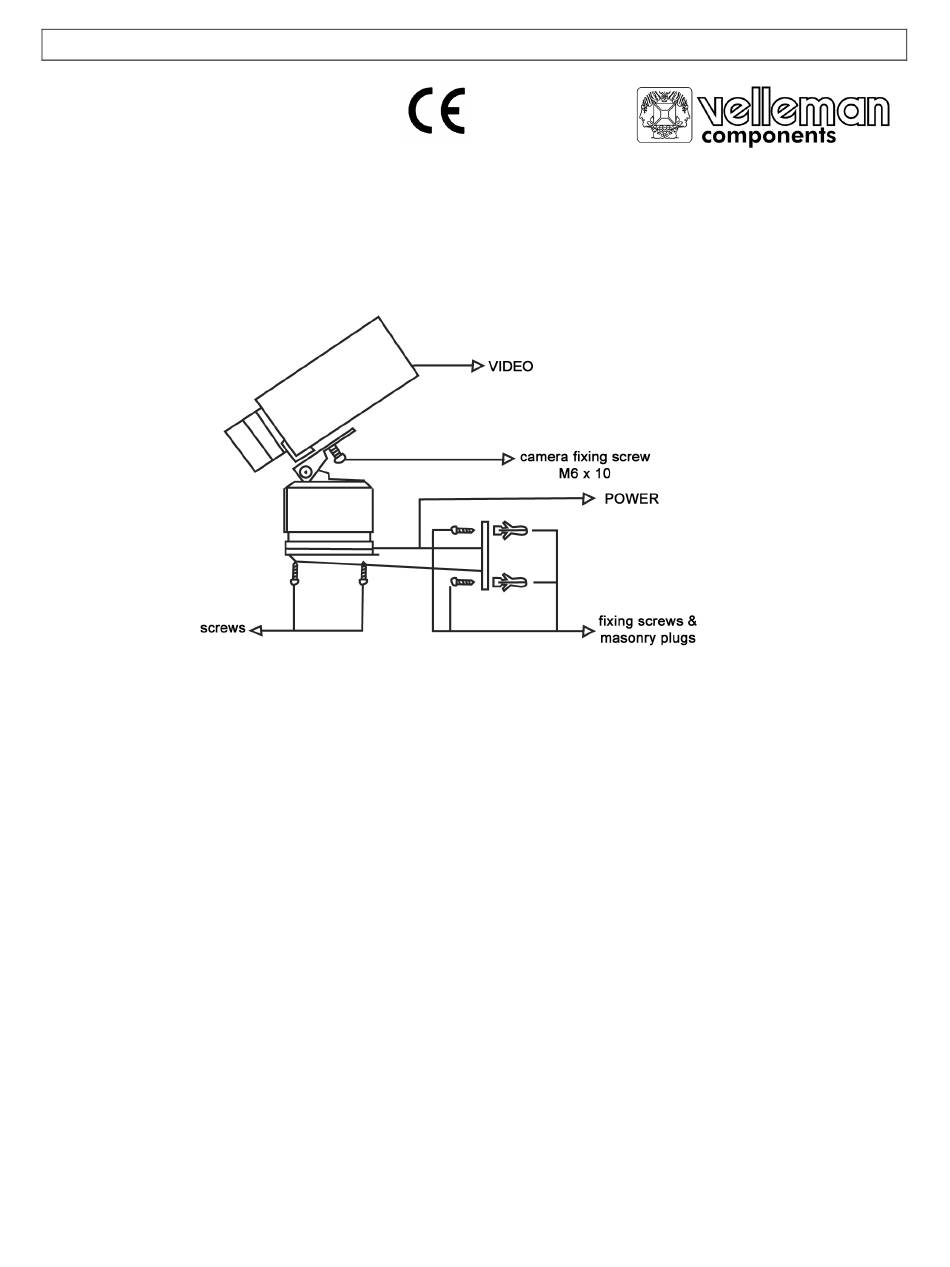

2. Installation

3. Angle Adjustment

The tilt angle is adjusted manually (max. 90°). Loosen the screws on the side of the camera platform, adjust the
platform to the desired angle and fix the screws.
The maximum pan angle is 355°. This device is supplied with two stops, each of which is to be inserted in one of the
20 slots in the bottom of the VIS2. Consequently, the stops are placed at a min. interval of 18° (full circle or 360°,
360° / 20 slots = 18°).

4. Specifications

Angular Travel – Pan : 0-355°C, automatic scanning
Angular Travel – Tilt : 90° up & down, manual
Stops : External and manual adjustment for angular travel
Pan Speed : 5°/sec.
Max. Load : 2kg
Construction : Plastic
Power Source : AC 24V (incl.)
Power Consumption : 1W
Dimensions : 65 x 65mm (Ø x height)
Weight : 0.17kg
VIS2
VIS2 – INDOOR MINI SCANNER (left-right)
