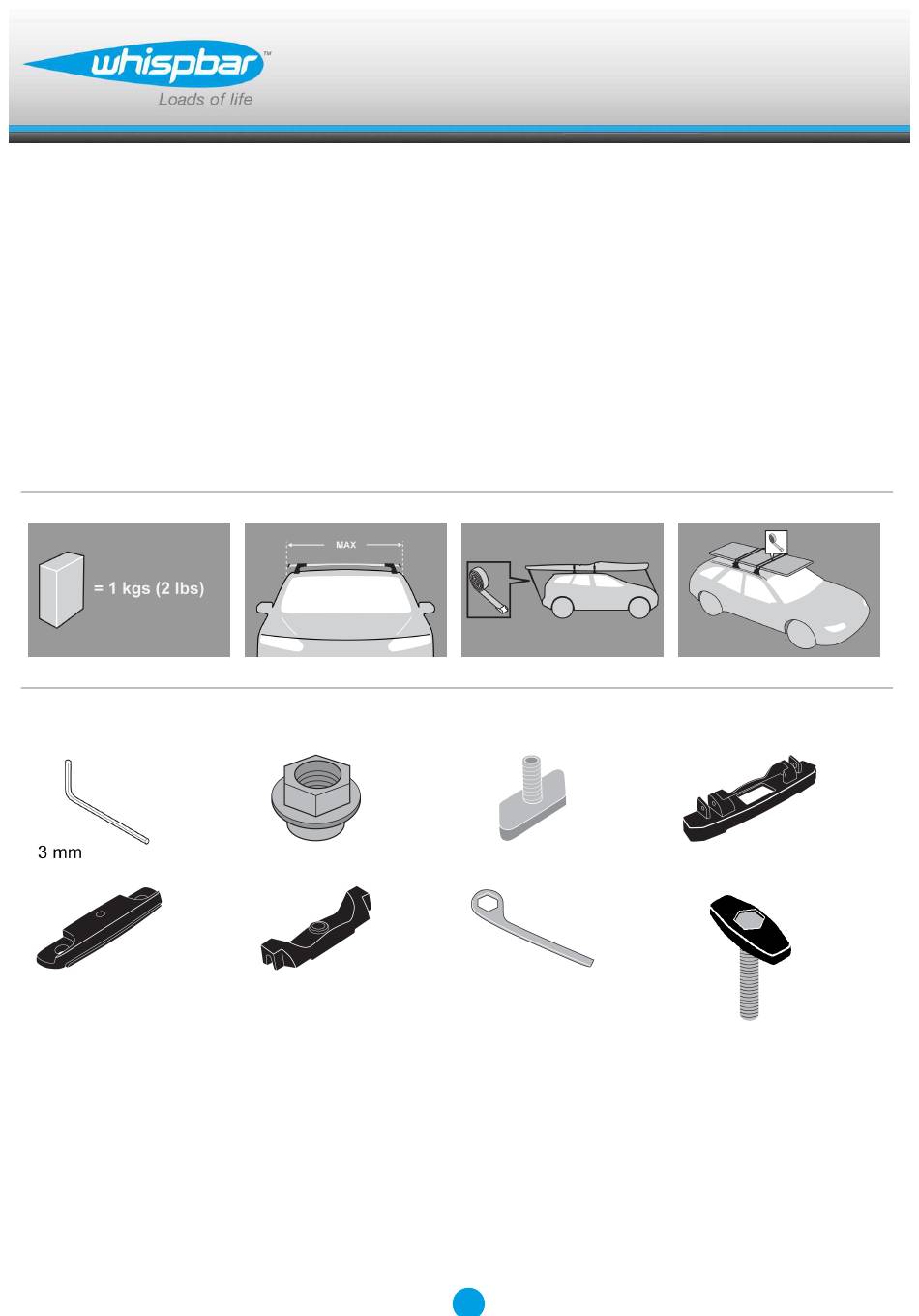

- Page 1 K450W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 12L...
- Page 2 Fitting Kit K450W MAX kgs (lbs) Toyota 4 Runner, 5dr SUV 96-02 75 kgs (165 lbs) 75 kgs (165 lbs) 4 Runner, 5dr SUV 96-03 75 kgs (165 lbs) 75 kgs (165 lbs) 4 Runner, 5dr SUV 96-03 75 kgs (165 lbs)
- Page 3 Fitting Kit K450W Discovery 4, 5dr SUV 09-Mar 17 75 kgs (165 lbs) 100 kgs (220 lbs) Discovery 4, 5dr SUV 09-Mar 17 75 kgs (165 lbs) 100 kgs (220 lbs) Discovery 4, 5dr SUV 09-Mar 17 75 kgs (165 lbs)
- Page 4 Fitting Kit K450W Great Wall X200, 5dr SUV Nov 09-+ 50 kgs (110 lbs) 50 kgs (110 lbs) X200, 5dr SUV Oct 09-+ 50 kgs (110 lbs) 50 kgs (110 lbs) X240, 5dr SUV Nov 09-+ 50 kgs (110 lbs)
- Page 5 Fitting Kit K450W 4 Runner, 5dr SUV 96-02 (US) 200mm 900mm 735mm 735mm 7 7/8ths" 35 7/16ths" 28 15/16ths" 28 15/16ths" 4 Runner, 5dr SUV 96-03 (EU) 200mm 900mm 735mm 735mm 7 7/8ths" 35 7/16ths" 28 15/16ths" 28 15/16ths" 4 Runner, 5dr SUV 96-03 (CN)
- Page 6 Fitting Kit K450W Discovery 4, 5dr SUV 09-Mar 17 (ZA) 220mm 1640mm 935mm 875mm 8 11/16ths" 64 9/16ths" 36 13/16ths" 34 7/16ths" Discovery 4, 5dr SUV 09-Mar 17 (NZ) 220mm 1640mm 935mm 875mm 8 11/16ths" 64 9/16ths" 36 13/16ths" 34 7/16ths"...
- Page 7 Fitting Kit K450W 11 13/16ths" 39 3/8ths" 42 5/8ths" 42 5/8ths" Multivan T5, 5dr MPV 04-Dec 15 (NZ) 300mm 1000mm 1082mm 1082mm 1082mm 11 13/16ths" 39 3/8ths" 42 5/8ths" 42 5/8ths" 42 5/8ths" Multivan T6 LWB, 5dr MPV 15-+ (EU)
-
Page 8: First Time Installation
Fitting Kit K450W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 9 Fitting Kit K450W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Remove plastic clamp block by gripping bar...
- Page 10 Fitting Kit K450W Remove both pins from each leg. Use tapered end of spanner located inside left hand cover to assist. Detach foot from leg. Store loose parts in a safe place. Repeat for all legs. Assemble foot from kit into leg.
- Page 11 Fitting Kit K450W Insert pins through foot into leg. Select plastic internal block (from fitting kit) and insert into foot. Repeat for all legs. Remove fixed-point cover. FITMENT TO FORD RANGER WILDTRAK ONLY...
- Page 12 Fitting Kit K450W Place T-bolt into track by either inserting it from the top or sliding in from the end. Rotate bolt clockwise so it engages in place in the centre of track. Use 4 T-bolts per track Repeat for both tracks.
- Page 13 Fitting Kit K450W Place track pad over T-bolt Thread the nut over the T-bolt by hand. Repeat for all four positions. Use the 3mm (1/8") Hex Key to hold the T- bolt in a stationary position and ensure the T-bolt has correct engagement.
- Page 14 Fitting Kit K450W Place crossbars over mounting assembly on tracks. Tighten the plastic knob. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions.
- Page 15 Fitting Kit K450W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 16: Maintenance
Fitting Kit K450W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 17 Fitting Kit K450W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 18 Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 19 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
