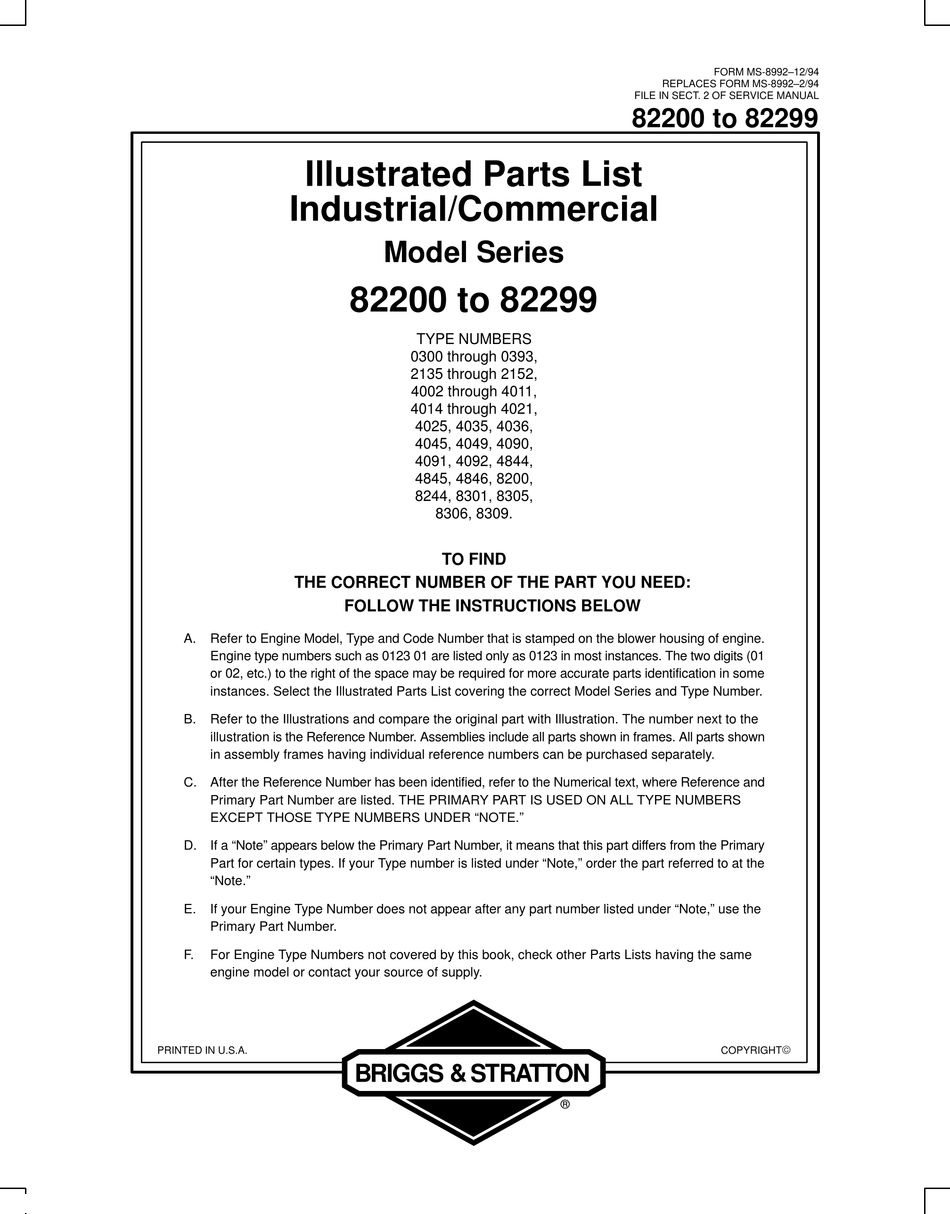

Illustrated Parts List

Industrial/Commercial
THE CORRECT NUMBER OF THE PART YOU NEED:
A.
Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine.
Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01
or 02, etc.) to the right of the space may be required for more accurate parts identification in some
instances. Select the Illustrated Parts List covering the correct Model Series and Type Number.
B.
Refer to the Illustrations and compare the original part with Illustration. The number next to the
illustration is the Reference Number. Assemblies include all parts shown in frames. All parts shown
in assembly frames having individual reference numbers can be purchased separately.
C. After the Reference Number has been identified, refer to the Numerical text, where Reference and
Primary Part Number are listed. THE PRIMARY PART IS USED ON ALL TYPE NUMBERS
EXCEPT THOSE TYPE NUMBERS UNDER "NOTE."
D. If a "Note" appears below the Primary Part Number, it means that this part differs from the Primary
Part for certain types. If your Type number is listed under "Note," order the part referred to at the
"Note."
E.
If your Engine Type Number does not appear after any part number listed under "Note," use the
Primary Part Number.
F.
For Engine Type Numbers not covered by this book, check other Parts Lists having the same
engine model or contact your source of supply.
PRINTED IN U.S.A.
Model Series
82200 to 82299
TYPE NUMBERS
0300 through 0393,
2135 through 2152,
4002 through 4011,
4014 through 4021,
4025, 4035, 4036,
4045, 4049, 4090,
4091, 4092, 4844,
4845, 4846, 8200,
8244, 8301, 8305,
8306, 8309.
TO FIND
FOLLOW THE INSTRUCTIONS BELOW
BRIG S &
G
STRA TON
REPLACES FORM MS-8992–2/94
FILE IN SECT. 2 OF SERVICE MANUAL
82200 to 82299
T
®
FORM MS-8992–12/94
COPYRIGHT

Advertisement

loading
Need help?

Need help?

Do you have a question about the Series 82200 to 82299 and is the answer not in the manual?

Questions and answers

Related Manuals for Briggs & Stratton Series 82200 to 82299

Summary of Contents for Briggs & Stratton Series 82200 to 82299

  • Page 1: Illustrated Parts List

    Illustrated Parts List Industrial/Commercial Model Series 82200 to 82299 THE CORRECT NUMBER OF THE PART YOU NEED: FOLLOW THE INSTRUCTIONS BELOW Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine. Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01 or 02, etc.) to the right of the space may be required for more accurate parts identification in some instances.
  • Page 2 82200 to 82299 REQUIRES SPECIAL TOOLS TO INSTALL. SEE REPAIR INSTRUCTION MANUAL. 1019 LABEL KIT 1058 OWNER’S MANUAL REF. PART DESCRIPTION 395567 Cylinder Assembly 210812 Head–Cylinder K272167 Gasket–Cylinder Head 294178 Breather Assembly K27549 Gasket–Breather 231527 Tube–Breather 94688 Screw–Sem Screw–Cylinder Head See Last Pages.
  • Page 3 358 GASKET SET REF. PART DESCRIPTION K270833 Gasket–Crankcase (.015” Thick, Standard) K270895 Gasket– Crankcase (.005” Thick) K270896 Gasket– Crankcase (.009” Thick) Cover–Crankcase See Last Pages. 293708 Bushing Include(s): 220538 Bushing K495355 Seal–Oil (Used After Code Date 93071800). ––––––– Note ––––– K393812 Seal–Oil (Used Before Code Date 93071900).
  • Page 4 82200 to 82299 127A 127B To replace carburetor assembly, determine fuel tank capacity as shown Carburetor Mounting Surface Large Fuel Pipe REF. PART DESCRIPTION 52 KD271936 Gasket–Intake Carburetor See Last Pages. 93499 Screw–Sem 223793 Valve–Throttle 495313 Shaft–Throttle (Used After Code Date 92090600).
  • Page 5 156A 202A 216A 995A REF. PART DESCRIPTION 490956 Spring & Screw 490501 Screw–Carb. Lever 492905 Lever–Speed Adjuster 156A 223857 Lever–Speed Adjuster (Remote or Manual Control) 156B 223855 Lever–Speed Adjuster (Choke-A-MaticR) 262325 Link 202A 262470 Link 262317 Spring–Governor ––––––– Note ––––– 260041 Spring–Gov.
  • Page 6 82200 to 82299 127A 127B To replace carburetor assembly, determine fuel tank capacity as shown Carburetor Mounting Surface Large Fuel Pipe REF. PART DESCRIPTION 52 KD271936 Gasket–Intake Carburetor See Last Pages. 93499 Screw–Sem 223793 Valve–Throttle 490048 Shaft–Throttle 490495 Valve–Choke 231533 Valve–Idle Adjust 495606 Carburetor Kit (Used After Code Date 92060700).
  • Page 7 1012 REF. PART DESCRIPTION Tank–Fuel See Last Pages. 494559 Cap–Fuel Tank 94094 Screw–Sem 190A 94677 Screw–Sem 191 KD272489 Gasket–Tank Mtg. (Used After Code Date 92060700). ––––––– Note ––––– KD272410 Gasket– Tank Mtg. (Used Before Code Date 92060800). 262359 Link (Used After Code Date 87030100).
  • Page 8 82200 to 82299 190A 265A REF. PART DESCRIPTION 180A 495376 Tank–Fuel (2 Quart) (Mech. Gov.) ––––––– Note ––––– 495388 Tank– Fuel (3 Quart) (Used After Code Date 92060700). 490527 Tank–Fuel (3 Quart) (Used Before Code Date 92060800). 494559 Cap–Fuel Tank 94094 Screw–Sem 190A 94677 Screw–Sem...
  • Page 9 REF. PART DESCRIPTION K271935 Gasket–Air Cleaner 163A 271139 Gasket–Air Cleaner 163B 272631 Gasket–Air Cleaner 231819 Stud–Air Cleaner 396424 Filter–Air 222844 Base–Air Cleaner 467A 493903 Knob K Included in Gasket Set–See Ref. 358. D Included in Carburetor Kit–See Ref. 121. 8992–9 Assemblies include all parts shown in frames.
  • Page 10 82200 to 82299 299A 676A REF. PART DESCRIPTION 94523 Screw–Hex.Head 223256 Lock–Screw 93801 Screw–Hex.Head 220859 Locknut–Muffler 493288 Muffler–Exhaust 299A 392811 Muffler–Exhaust (Lo–Tone) K Included in Gasket Set–See Ref. 358. D Included in Carburetor Kit–See Ref. 121. 8992–10 Assemblies include all parts shown in frames. 676B 676C REF.

  • Page 11: Cylinder Head

    1016 REF. PART DESCRIPTION 296884 Flywheel ––––––– Note ––––– 395653 Flywheel Used on Type No(s). 0313, 0349. 222698 Key–Flywheel 280439 Pulley–Starter 490179 Spring–Rewind Starter 66734 Rope–Starter (48–5/8” Long) ––––––– Note ––––– 280406 Rope–Starter (82” Long) 280399 Rope–Starter (99” Long) 393152 Grip–Starter Rope 399671 Clutch–Starter 394897 Housing–Clutch 63770 Ball–Clutch...
  • Page 12 82200 to 82299 608A REF. PART DESCRIPTION 280439 Pulley–Starter 490179 Spring–Rewind Starter 66734 Rope–Starter (48–5/8” Long) ––––––– Note ––––– 280406 Rope–Starter (82” Long) 280399 Rope–Starter (99” Long) 490653 Insert–Starter Grip 230228 Pin–Starter Grip 490652 Grip–Starter Rope 66728 Grip–Starter Rope 221661 Screen–Rotating K Included in Gasket Set–See Ref.
  • Page 13 525A REF. PART DESCRIPTION 395567 Cylinder Assembly 399269 Bushing K299819 Seal–Oil 393812 Seal–Oil 220971 Guard–Flywheel 290779 Case Assy.–Gear K27667 Gasket–Gear Case 220234 Lock–Screw 91541 Screw–Hex. Hd. (7/8” Long) K Included in Gasket Set–See Ref. 358. D Included in Carburetor Kit–See Ref. 121. 8992–13 Assemblies include all parts shown in frames.
  • Page 14 82200 to 82299 REF. PART DESCRIPTION 94547 Screw–Cylinder Head ––––––– Note ––––– 94547 Screw–Cylinder Head 93583 Stud–Cylinder Head 22963 Washer Used on Type No(s). 0311, 0313, 0318, 0322, 0323, 0331, 0355, 0362, 0371, 0377, 0381, 0382, 0389, 4002, 4003, 4004, 4005, 4007, 4008, 4010, 4011, 4015, 4016, 4018, 4019, 4035, 4036,...
  • Page 15 REF. PART DESCRIPTION 260552 Spring–Valve (Exhaust) (Used After Code Date 93120700). 262750 Spring–Valve (Exhaust) (Used Before Code Date 93120800 and After Code Date 90051300). 26826 Spring–Valve (Exhaust) (Used Before Code Date 90051400). ––––––– Note ––––– 26478 Spring–Valve (Exhaust) Used on Type No(s). 2150, 2152, 4011.
