Kramer VW-4 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VW-4 4 Output Video-Wall Driver
1 Power adapter and cord

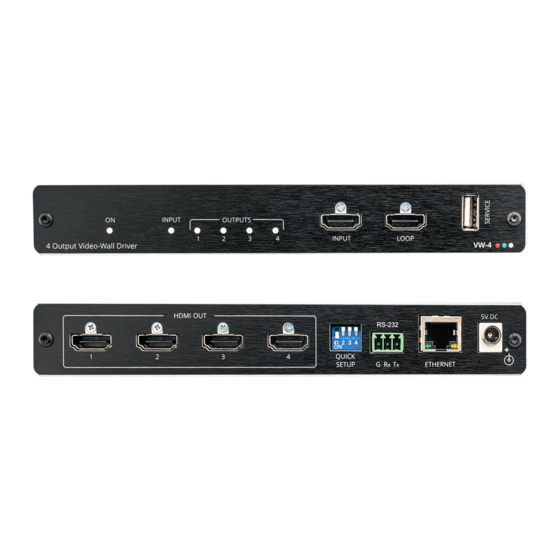

Step 2: Get to know your VW-4

# Feature
1 ON LED
2 INPUT LED
3 OUTPUT LEDs (1 to 4)
4 INPUT HDMI Connector
5 LOOP HDMI Connector
6 SERVICE USB Port
7 OUT HDMI Connectors (1 to 4)
8 SETUP 4-way DIP-switch
RS-232 3-pin terminal block connector Use to setup and monitor the
9
10 ETHERNET RJ-45 Connector
11 5V DC Connector

Step 3: Mount VW-4

Install VW-4 using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/VW-4).
•
Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/VW-4).
VW-4 Quick Start
VW-4 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VW-4
upgrades are available.
Function
Lights green when the device is powered.
Lights green when a valid input signal is detected on the input.
Light green when an acceptor is detected on that output.
Connect to an HDMI source.
Connect to an additional
local monitor.
Use to perform firmware upgrade.
Connect to up to 4 HDMI acceptors that make up the video wall configuration.
The appropriate segments of the zoomed picture are output on these connectors
for connection to the displays in the video-wall.
The output on these connectors is at 1080P resolution.
For fast, basic configuration of the device without needing to be connected to a
PC, see
firmware.
Connect to a PC via a LAN to setup and monitor the
app.
Connect to the supplied power adapter.
VW-4 for the first time.
to download the latest user manual and check if firmware
1 Bracket set
4 Rubber feet
VW-4 device for configuring a large video wall or to a
Step 6: Configure VW-4.
VW-4 via the Windows software and to upgrade the
• Ensure that the environment (e.g., maximum ambient temperature &
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
P/N: 2 9 0 0 - 3 0 1 4 5 3 QS
1 Quick start guide
VW-4 via the configuration
air flow) is compatible for the device.
used for avoiding overloading of the circuits.
Rev: 2
