NHM-1
WCDMA Temperature Sensor Calibration
This does not require any external instruments.
•
This calibration must be carried out at room temperature
•
Run this component from the Phoenix menu:
•

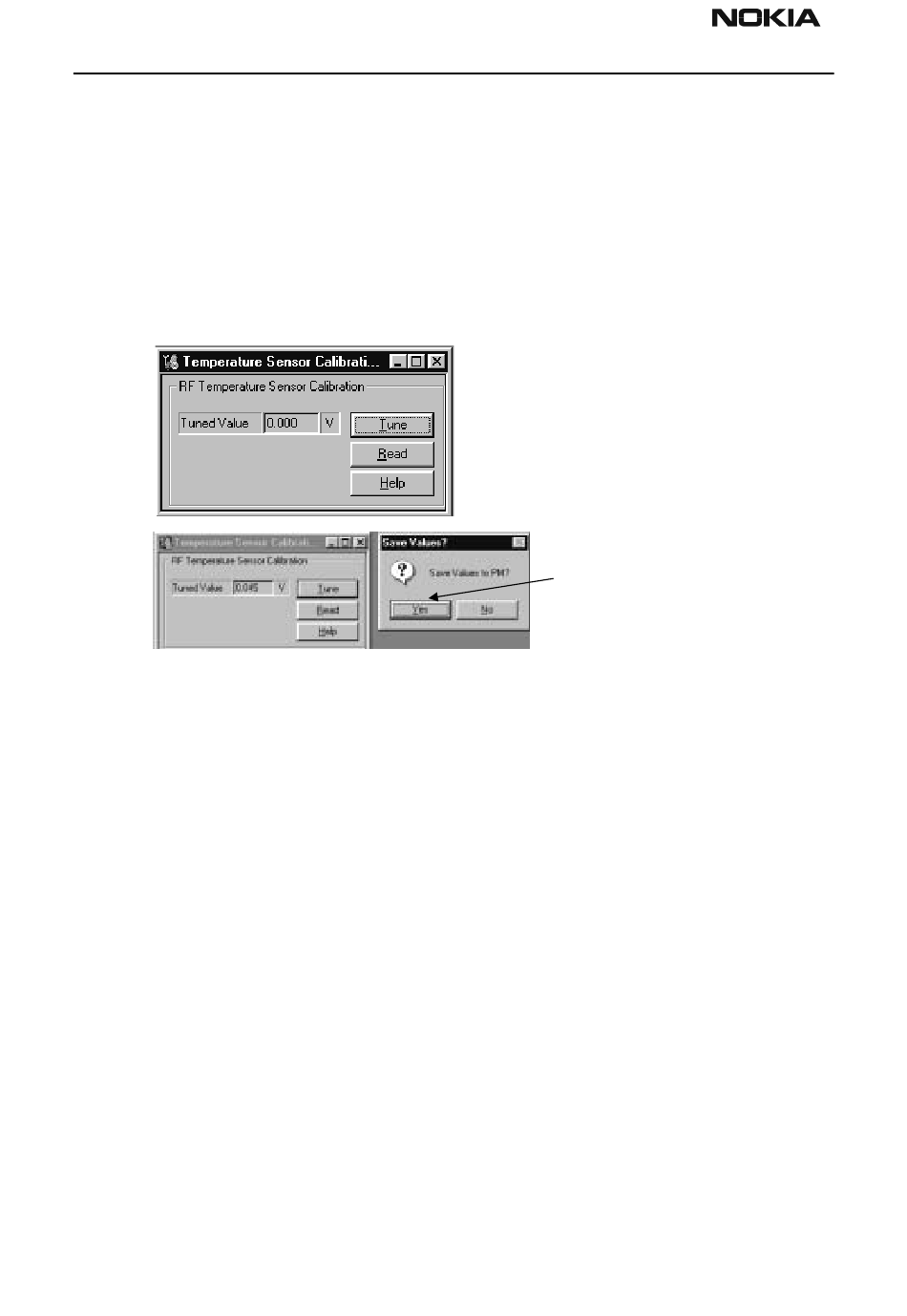

This is the initial view. Press "Tune" to run the calibration.
Note: By pressing "Read", the saved value can be read from PM
The value stored is a DC-voltage from the temperatur sensor in TEX. It's value is the dif-
ference between the expected value for room temperature so it can be either ±.
Page 74
Tunings/WCDMA/Temperature sensor calibration.
Copyright Nokia. All rights reserved.
CCS Technical Documentation
Save tuned value into PM
Issue 1 11/03
