Phytec phyCORE-i.MX31 Hardware Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
phyCORE-i.MX31
H
M
ARDWARE
ANUAL
E
J
2007
DITION
ULY
A product of a PHYTEC Technology Holding company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the phyCORE-i.MX31 and is the answer not in the manual?

Questions and answers

Related Manuals for Phytec phyCORE-i.MX31

Summary of Contents for Phytec phyCORE-i.MX31

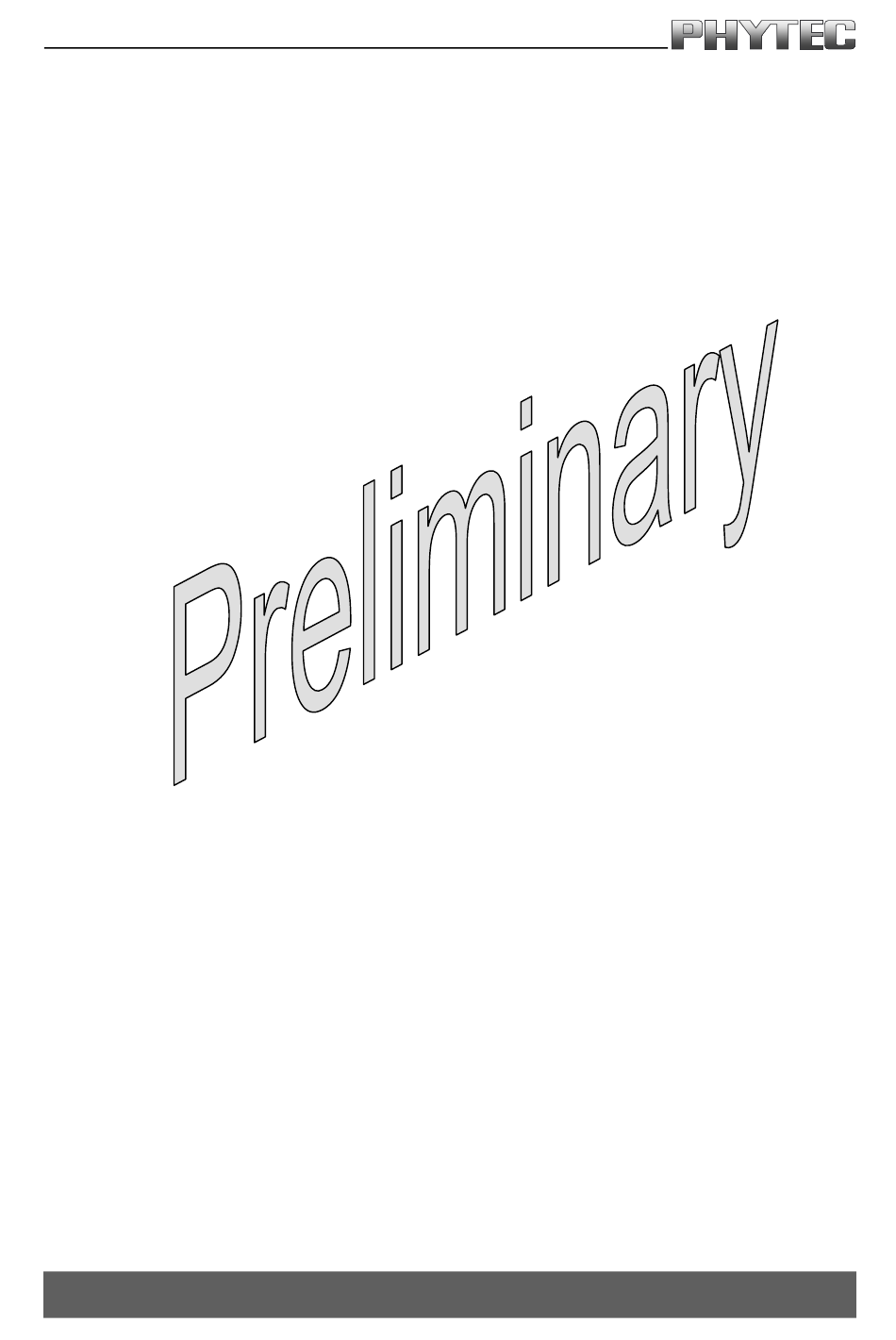

  • Page 1 ARDWARE ANUAL 2007 DITION A product of a PHYTEC Technology Holding company...
  • Page 2 PHYTEC Messtechnik GmbH neither gives any guarantee nor accepts any liability whatsoever for consequential damages resulting from the use of this manual or its associated product. PHYTEC Messtechnik GmbH reserves the right to alter the information contained herein without prior notification and accepts no responsibility for any damages which might result.

  • Page 3: Table Of Contents

    Contents Preface..................1 1.1 Introduction.................2 1.2 Block Diagram ..............4 1.3 View of the phyCORE-i.MX31 ..........5 Pin Description .................7 Jumpers...................21 Power Requirements..............26 Real Time Clock U18 / SRAM U19 Battery ......28 System Configuration ............29 System Memory ..............30 7.1 Memory Model..............31 7.2 LP-DDR-SDRAM (U5-U8) ..........32 7.3 NOR-Flash (U15)..............33...
  • Page 4 JTAG Interface (X6) ......100 13.5.18 Expansion Bus Connectors ....102 13.5.19 Carrier Board Physical Dimensions ..115 13.6 Sharp LQ035Q7DH06 LCD Adapter ......116 13.6.1 LCD-004 Physical Dimensions ......118 Revision History ..............119 Component Placement Diagram .........120 Index ....................122 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 5 Contents Index of Figures Figure 1: Block Diagram phyCORE-i.MX31 ........4 Figure 2: Top View of the phyCORE-i.MX31 (controller side) ..5 Figure 3: Bottom View of the phyCORE-i.MX31 (connector side)...6 Figure 4: Pinout of the phyCORE-Connector (Top View, with Cross Section Insert)................8...
  • Page 6 Figure 26: phyCORE-i.MX31 Component Placement, Top View ..120 Figure 27: phyCORE-i.MX31 Component Placement, Bottom View121 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 7 Table 23: System Control Buttons..........73 Table 25: Carrier Board LEDs ............74 Table 26: Clock Selection...............75 Table 27: Boot_Mode2 selection ............75 Table 28: Boot_Mode4 selection ............75 Table 29: x_switch (not used)............75 Table 30: Keypad Connector X18 Signal Map .......78 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 8 Table 29: Universal Display Pin Header.........90 Table 30: Display switch (Universal pin header) ......92 Table 34: Serial LCD pin header ............93 Table 35: PHYTEC Camera Connector X7 ........97 Table 36: Universal Camera pin header X8 ........98 Table 37: JTAG Connector............100 ©...
  • Page 9 Contents © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 11: Preface

    The phyCORE-i.MX31 is one of a series of PHYTEC Single Board Computers that can be populated with different controllers and, hence, offers various functions and configurations. PHYTEC supports a...

  • Page 12: Introduction

    The phyCORE-i.MX31 is a subminiature (84 x 58 mm) insert-ready Single Board Computer populated with the Freescale i.MX31 microcontroller. Its universal design enables its insertion in a wide range of embedded applications.
  • Page 13 Special Power-Management IC which includes: Stereo line-in Stereo line-out / pre-amplified mono-out Stereo mic-in 4-Wire touch interface LCD-Backlight control Battery charger 6 AD-Inputs 1 Please contact PHYTEC for more information about additional module configurations. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 14: Block Diagram

    1.2 Block Diagram Figure 1: Block Diagram of the phyCORE-i.MX31 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 15: View Of The Phycore-I.mx31

    CB400 C147 RN19 RN20 RN21 RN22 RN23 RN24 RN25 RN26 R100 RN39 RN40 RN27 RN28 RN29 RN30 RN35 RN36 RN37 RN38 CB402 CB301 C123 CB300 Figure 2: Top view of the phyCORE-i.MX31 (controller side) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 16: Figure 3: Bottom View Of The Phycore-I.mx31 (Connector Side)

    C142 C143 RN34 RN33 RN32 RN31 CB309 C192 C118 C110 C114 C141 CB302 CB351 RN47 RN45 C139 C138 C137 CB150 CB350 RN42 RN41 CB303 C148 Figure 3: Bottom view of the phyCORE-i.MX31 (connector side) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 17: Pin Description

    Board/user target circuitry. The upper left-hand corner of the numbered matrix (pin 1A) is thus covered with the corner of the phyCORE-i.MX31 marked with a triangle. The numbering scheme is always in relation to the PCB as viewed from above, even if all connector contacts extend to the bottom of the module.

  • Page 18: Figure 4: Pinout Of The Phycore-Connector (Top View, With Cross Section Insert)

    Please refer to the Freescale i.MX31 User’s Manual/Data Sheet for details on the functions and features of controller signals and port pins. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 19: Table 1: Pinout Of The Phycore-Connector X1

    In byte enable mode, READ_H (for sys80) or ENABLE_H (for sys68k) x_/CS0 3.3V /CS0 output (per default used by NOR-Flash) x_/CS1 3.3V /CS1 output (per default used by Ethernet) x_/CS4 3.3V /CS4 output (per default used by SRAM) Ground 0V © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 20 PCMCIA Power is On Signal Ground 0V x_PCnRW 3.3V PCMCIA External Transceiver Direction Signal x_PC_VS1 NVCC_3_4_6 PCMCIA Voltage sense Input 1 x_PC_VS2 NVCC_3_4_6 PCMCIA Voltage sense Input 2 x_/CE1 NVCC_3_4_6 PCMCIA Card Enable 1 Signal Ground 0V © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 21 I/O NVCC_3_4_6 Keypad Port Row 3 x_KEY_ROW5 I/O NVCC_3_4_6 Keypad Port Row 5 x_GPIO3_1 NVCC_1 GPIO3_1 NVCC_3_4_6 NVCC_3_4_6 ATA Reference Voltage (2.775V) Ground 0V x_GPIO1_3 NVCC_1 GPIO1_3 x_GPIO1_5 NVCC_1 GPIO1_5 100A x_GPIO1_6 NVCC_1 GPIO1_6 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 22 Input/Output data to display. x_LC_D16 NVCC_7 Output data to display. In byte enable mode, WRITE_H (for sys80) Ground 0V x_/CS3 3.3V /CS3 output (not used) x_/CS5 3.3V /CS5 output (per default used by CAN on Baseboard) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 23 NVCC_3_4_6 PCMCIA Card Detect Input 2 x_PCPOE NVCC_3_4_6 PCMCIA buffers output enable x_PC_READY NVCC_3_4_6 PCMCIA Ready x_PC_RST NVCC_3_4_6 PCMCIA Card Reset. Ground 0V x_/PC_WAIT NVCC_3_4_6 PCMCIA Extend bus cycle. Input x_/CE2 NVCC_3_4_6 PCMCIA Card Enable 2 Signal © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 24 NVCC_3_4_6 Keypad Port Row 1 x_KEY_ROW2 NVCC_3_4_6 Keypad Port Row 2 x_KEY_ROW4 NVCC_3_4_6 Keypad Port Row 4 Ground 0V x_GPIO1_0 NVCC_1 GPIO1_0 x_GPIO1_1 NVCC_1 GPIO1_1 x_GPIO1_2 NVCC_1 GPIO1_2 x_GPIO1_4 NVCC_1 GPIO1_4 Ground 0V 100B x_CLKO NVCC_1 Clock Output © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 25 Low power receive output for accessories right channel J20=2+3: Loudspeaker minus terminal x_RXINL VAUDIO Receive input left channel x_RXINR VAUDIO Receive input right channel Ground 0V x_MC1RIN VAUDIO right microphone amplifier input x_MC1LIN VAUDIO left microphone amplifier input © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 26 Ground 0V x_USBHOST2_DA2 NVCC_5_10 USB Host transceiver ULPI data signal D2 x_USBHOST2_DA4 NVCC_5_10 USB Host transceiver ULPI data signal D4 x_USBHOST2_DA6 NVCC_5_10 USB Host transceiver ULPI data signal D6 NVCC_5_10 NVCC_5_10 USB Reference Voltage (2.775V) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 27 NVCC_3_4_6 GPIO MCU2_2 (NVCC_9) x_MCU2_3 NVCC_3_4_6 GPIO MCU2_3 (NVCC_9) x_MCU3_3 NVCC_3_4_6 GPIO MCU3_3 (NVCC_9) Ground 0V x_BOOT_MODE2 NVCC_1 Boot-Mode 2 x_COMPARE NVCC_1 Timer Output Compare for timers 1 2 3. 100C NVCC1 NVCC_1 USB Reference Voltage (1.8V) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 28 Serial data transmit line UART3 NVCC_3_4_6 Ground 0V x_RTS3_RS232 RS232 / Request to send UART3 NVCC_3_4_6 x_CTS3_RS232 RS232 / Clear to send UART3 NVCC_3_4_6 x_GPO3 General purpose output 3 x_GPO4 General purpose output 4 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 29 USB Host transceiver ULPI stop signal x_USBHOST2_NXT NVCC_5_10 USB Host transceiver ULPI next signal x_USBHOST2_DA0 NVCC_5_10 USB Host transceiver ULPI data signal D0 x_USBHOST2_DA1 NVCC_5_10 USB Host transceiver ULPI data signal D1 Ground 0V © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 30 Ground 0V x_MCU3_2 NVCC_3_4_6 GPIO MCU3_2 (NVCC_9) VSIM VSIM VSIM Suply Voltage x_CLKSS NVCC_1 Clock Source select input. x_BOOT_MODE4 NVCC_1 Boot-Mode 4 Ground 0V 100D x_CAPTURE NVCC_1 Timer input Capture or Timer1 input clock © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 31: Jumpers

    System Memory 3 Jumpers For configuration purposes, the phyCORE-i.MX31 has 22 solder jumpers, some of which have been installed prior to delivery. Figure 5 illustrates the numbering of the solder jumper pads, while Figure 6 and Figure 7 indicate the location of the solder jumpers on the board. Six solder jumpers are located on the top side of the module (opposite side of connectors) and 16 solder jumpers are located on the bottom side of the module (connector side).

  • Page 32: Figure 6: Location Of The Jumpers (Top View)

    Figure 6: Jumper locations (top view) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 33: Figure 7: Location Of The Jumpers (Bottom View)

    System Memory Figure 7: Jumper locations (bottom view) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 34 Power up Mode select closed Power up Mode select (PUMS3) is floating (PUMS3) is connected to VATLAS (high) open Power up Mode select closed Power up Mode select (PUMS3) is floating (PUMS3) is connected to GND (low) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 35 /RESET input of USB closed /RESET input of USB transceiver U22 is not transceiver U22 is connected connected to x_MCU2_1 and to x_MCU2_1 and can be therefore pulled high controlled by the i.MX31 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 36: Power Requirements

    4 Power Requirements The phyCORE-i.MX31 normally operates off of two different voltage supplies denoted as VIN and VCC_3V3. The MC13783 primary on-board voltage regulator operates off of VIN and generates all on-board supply voltages except 3.3V. The VCC_3V3 input supplies this required voltage.
  • Page 37 2.775V VCAM NVCC_7 2.775V VRF1 NVCC_5_10 2.775V In general you should not need to adjust the Power up Mode settings. The configuration has been optimized for the phyCORE-i.MX31 together with the phyCORE-i.MX Carrier Board. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 38: Real Time Clock U18 / Sram U19 Battery

    Caution: Operation with x_VBAT greater than VCC_3V3 could cause unintentional discharge of the battery. If you choose not to use a battery with the phyCORE-i.MX31 then x_VBAT should be connected to VCC_3V3 external to the phyCORE-i.MX31. See section 11 Technical Specifications for battery power consumption.

  • Page 39: System Configuration

    System Memory System Configuration Although most features of the Freescale phyCORE-i.MX31 microcontroller are configured and/or pro- grammed during the initialization routine, other features, which impact program execution, must be configured prior to initialization via pin termination. Elaborate??? © PHYTEC Messtechnik GmbH 2007...

  • Page 40: System Memory

    7 System Memory The phyCORE-i.MX31 provides three types of on-board memory: • LP-DDR-SDRAM: 128MByte (up to 256MByte) • SRAM: 512KByte (up to 2MByte) • NAND Flash: 64MByte (up to 1GByte) • NOR Flash: 32MByte (up to 64MByte) • I²C-EEPROM:...

  • Page 41: Memory Model

    /CS0 NOR-Flash (U15) 0xA800 00000 – 0xAFFF /CS1 Ethernet Controller (U3) FFFF 0xB400 00000 – 0xB5FF FFFF /CS4 SRAM (U19) /CS5 not used on phyCORE-i.MX31 0xB600 00000 – 0xB6FF FFFF (SJA1000 on Carrier Board) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 42: Lp-Ddr-Sdram (U5-U8)

    7.2 LP-DDR-SDRAM (U5-U8) The phyCORE-i.MX31 can use one, or both of the LP-DDR-SDRAM banks on the i.MX31 depending on the SDRAM population density options. Each RAM bank is comprised of two 16-bit wide DDR-SDRAM chips, configured for 32-bit access, and operating at 133MHz.

  • Page 43: Nor-Flash (U15)

    System Memory 7.3 NOR-Flash (U15) The phyCORE-i.MX31 can be populated with an Intel Strata Flash at U15. This NOR-Flash is connected to /CS0 which is located at memory address 0xA000 0000. The entire Flash can be write protected by pulling the x_/FL_WP signal, located at the phyCORE-connector X1 on pin 58B, low.

  • Page 44: Nand Flash Memory (U14)

    7.4 NAND Flash Memory (U14) Use of Flash as non-volatile memory on the phyCORE-i.MX31 provides an easily reprogrammable means of code storage. The following Flash devices can be used on the phyCORE-i.MX31: Table 7: Compatible NAND Flash devices NAND F...

  • Page 45: 8/16-Bit Nand Flash Usage (Jn1,Jn2,Rn41,Rn42)

    NAND Flash, the jumpers/resistor networks must be populated as follows: Table 8: JN1/2,RN41/42 NAND Flash bit width selection 1 JN1/2 RN41/42 LASH IT WIDTH 8-Bit 2-3/5-6/8-9/11-12 not populated 16-Bit 1-2/4-5/7-8/10-11 populated 1 Default settings are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 46: I²C Eeprom (U17)

    7.5 I²C EEPROM (U17) The phyCORE-i.MX31 is populated with a ST 24W32C non-volatile 32KByte EEPROM (U17) with an I²C interface to store configuration data or other general purpose data. This device is accessed through I²C port 2 on the i.MX31. The serial clock signal and serial data signal for I²C port 2 are made available at the phyCORE-connector as x_I2C2_SDA on X1 pin 84C and x_I2C2_SCL on X1 pin 83C.

  • Page 47: Setting The Eeprom Lower Address Bits (J4, J5, J6)

    2 + 3 1 + 2 1010 100 1 + 2 1 + 2 2 + 3 1010 101 1 + 2 1 + 2 1 + 2 1 Defaults are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 48: Eeprom Write Protection Control (J8)

    The following configurations are possible: Table 10: EEPROM write protection states via J8 1 EEPROM W RITE ROTECTION TATE Write access allowed closed Write protected open 1 Defaults are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 49: Transceiver (U21)

    RxD line of the transceiver is connected to the TxD line of the COM port; while the TxD line of the transceiver is connected to the RxD line of the COM port. The ground potential of the phyCORE-i.MX31 circuitry needs to be connected to the applicable ground pin on the COM port as well.

  • Page 50: Uart3 Routing (Rn47)

    23D, X1 pin 25D, X1 pin 26D. If U21 does not populate the module, RN47 is populated to route the TTL level signals to these same pins. The standard phyCORE-i.MX31 module will have U21 populated, thereby routing the RS- 232 level signals to the phyCORE-connector. Be sure the phyCORE-i.MX31 configuration you are working with before interfacing these signals outside of the module as incorrect voltage levels will likely cause damage to on-board and off-board components.

  • Page 51: Usb-Otg Transceiver (U22)

    Ethernet Controller 8 USB-OTG Transceiver (U22) The phyCORE-i.MX31 comes populated with a NXP ISP1504 USB On-The-Go High- Speed transceiver (U22) supporting high speed, full speed, and low speed data rates. The ISP1504 functions as the transceiver between the i.MX31 Host Controller, Device Controller, and On-The-Go Controller.

  • Page 52: Ethernet Controller (U3)

    9 Ethernet Controller (U3) Connection of the phyCORE-i.MX31 to the world wide web (WWW) or a local area network (LAN) is possible with the on-board SMSC LAN9215/17 10/100 Mbps Ethernet controller populating the module at U3. This Ethernet controller features an integrated PHY layer, thus reducing the external components required to connect the phyCORE- i.MX31 to a LAN;...

  • Page 53: Jtag Interface (X2)

    Debug Interface X201 10 JTAG Interface (X2) The phyCORE-i.MX31 is equipped with a JTAG interface for downloading program code into the external flash, internal controller RAM or for debugging programs currently executing. The JTAG interface extends out to a 2.0 mm pitch pin header at X2 on the edge of the module PCB. Figure 8 and Figure 9 show the position of the debug interface (JTAG connector X2) on the phyCORE-module.

  • Page 54: Figure 9: Jtag Interface X2 (Bottom View)

    Note: The JTAG connector X2 only populates phyCORE-i.MX31 modules with order code PCM-037-D. JTAG connector X2 is not populated on phyCORE modules with order code PCM-037. However, all JTAG signals are also accessible at the phyCORE-connector X1 (Molex connectors). We recommend integration of a standard (2.54 mm pitch) pin header connector in the user target circuitry to allow...
  • Page 55 Debug Interface X201 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 56: Table 13: Jtag Connector X2 Signal Assignment

    *Note: Row A is on the controller side of the module and row B is connector side of the module PHYTEC offers a JTAG-Emulator adapter (order code JA-002) for connecting the phyCORE-i.MX31 to a standard emulator. The JTAG-Emulator adapter extends the signals of the module's JTAG connector to a standard ARM connector with 2.54 mm pin pitch.
  • Page 57 Debug Interface X201 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 58: Technical Specifications

    11 Technical Specifications The physical dimensions of the phyCORE-i.MX31 are represented in Figure 10. The module's profile is approximately 8.4 mm thick, with a maximum component height of 4.0 mm on the bottom (connector) side of the PCB and approximately 3.0 mm on the top (microcontroller) side. The board itself is approximately 1.4 mm thick.
  • Page 59 VCC 3.3 V/000mA typical 2 MByte SRAM, 32 MByte Flash, 128MB LP-DDR-RAM, 64MB NAND-Flash, Ethernet, 532 MHz CPU frequency at 20°C These specifications describe the standard configuration of the phyCORE-i.MX31 as of the printing of this manual. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 60: Hints For Handling The Phycore-I.mx31

    12 Hints for Handling the phyCORE-i.MX31 Removal of various components, such as the microcontroller and the standard quartz, is not advisable given the compact nature of the module. Should this nonetheless be necessary, please ensure that the board as well as surrounding components and sockets remain undamaged while de- soldering.

  • Page 61: The Phycore I.mx31 On The I.mx Carrier Board

    PHYTEC Single Board Computer (SBC) modules. Carrier Boards are designed for evaluation, testing and prototyping of PHYTEC Single Board Computers in laboratory environments prior to their use in customer designed applications.

  • Page 62: Concept Of The Phycore-I.mx Carrier Board

    The i.MX Carrier Board – which offers all essential components and connectors for start-up and connection to processor peripherals. • The phyMAP-i.MX31 – maps the signals from the phyCORE-i.MX31 module to the i.MX Carrier Board. The phyMAP-i.MX31 boards allow all PHYTEC i.MX SBC modules to connect to the i.MX Carrier Board.

  • Page 63: Figure 12: Modular Development And Expansion Board Concept With Phycore-I.mx31

    Carrier Board Expansion Bus Connectors Figure 12: Modular development and expansion board concept with phyCORE- i.MX31 The following sections contain specific information relevant to the operation of the phyCORE-i.MX31 mounted on the i.MX Carrier Board. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 64: Connectors

    Second Serial Interface with full handshake signals, DB-9F (top) CAN interface connectivity, DB-9M Please note that all module connections are not to exceed their expressed maximum voltage or current. Maximum signal input values are indicated in the corresponding controller User's Manual/Data Sheets. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 65: Figure 13: Carrier Board Connector Locations

    As damage from improper connections varies according to use and application, it is the user‘s responsibility to take appropriate safety measures to ensure that the module connections are protected from overloading through connected peripherals. Figure 13: Carrier Board connector locations © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 66: Jumpers

    Carrier Board jumpers allow a variety of signal configurations and connectivity options between the phyCORE-i.MX31 module and Carrier Board peripheral connectors. Before making connection to peripheral connectors it is a good idea to consult the applicable section in this manual for setting the associated jumpers.

  • Page 67: Figure 15: Carrier Board Jumper Locations

    ETTING ESCRIPTION ECTION Open RS-232 transceivers are enabled Closed RS-232 transceivers are disabled 13.5.3 Open RS-232 auto shutdown is disabled Closed RS-232 auto shutdown is enabled 1 Default settings are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 68 Stereo MIC is managed on the module JP22 Stereo MIC is managed on the baseboard Stereo MIC is managed on the module JP23 Stereo LINE IN is managed on the baseboard Stereo LINE IN is managed on the module © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 69 Dual Path JP602 Open PC_RW inverted Closed PC_RW non-inverted JP603 MMC/SD socket powered by VCC_SD 13.5.8 MMC/SD socket powered by VCC_3V3 JP604 Open CF power is manged by x_EXP007 13.5.7 Closed Force enabling VCC_CF © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 70: Phymap-I.mx31

    Table 16 below summarizes the solder jumper configuration and signal routing on the phyMAP-i.MX31 for mapping the phyCORE-i.MX31 module to the i.MX Carrier Board. Figure 16 highlights jumper placement and jumper pad numbering. © PHYTEC Messtechnik GmbH 2007...

  • Page 71: Figure 16: Phymap-I.mx31 Jumper Placement And Numbering

    1 Default settings are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 72: Functional Components On The Phycore-I.mx Carrier Board

    13.5 Functional Components on the phyCORE-i.MX Carrier Board This section describes the functional components of the phyCORE-i.MX Carrier Board supporting the phyCORE-i.MX31. Each subsection details a particular connector/interface and associated jumpers for configuring that interface. © PHYTEC Messtechnik GmbH 2007...

  • Page 73: Power Supply (X26)

    Do not use a laboratory adapter to supply power to the Carrier Board! Power spikes during power-on could destroy the phyCORE-module mounted on the Carrier Board! Do not change modules or jumper settings while the Carrier Board is supplied with power! © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 74: Figure 17: Power Adapter

    X20, a Coincell can be connected to use this one as backup power. (See MC13783 User Guide – Chapter 8 for more details). A backup gold capacitor (C161) is used as supply for SRAM and other nonvolatile components on the module. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 75: Fuse Jumper (Jp14 - Attention See Manual)

    This jumper allow modification of internal fuse state. Table 17: FUSE jumper 1 UMPER ETTING ESCRIPTION JP14 Open VCC_FUSE = 2,775V (no FUSE programming) Closed VCC_FUSE = 3,3V (use only for FUSE programming) 1 Default settings are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 76: Interfaces (P1)

    Connector P1 provides a connection interface to the i.MX UART1 and UART3 serial interfaces. P1 is a dual-stack DB9 connector divided into two sub-connectors called P1A (bottom connector) and P1B (top connector). UART1 is located at P1B (top) while UART3 is located at P1A (bottom). © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 77: Figure 19: Uart1 Connector P1B Signal Description

    By default this jumper is in the open position, enabling auto shutdown. Alternatively this jumper can be set to the closed position, disabling the auto shutdown feature and keeping the RS-232 transceivers in their normal operational state at all times. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 78: Table 18: Uart1 Jumper Settings

    UART1 RS-232 transceivers are enabled Closed UART1 RS-232 transceivers are disabled Open UART1 RS-232 transceivers have auto shutdown enabled Closed UART1 RS-232 transceivers have autoshutdown disabled 1 Default settings are in bold blue text © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 79: Figure 20: Uart3 Connector P1A Signal Description

    Figure 20: UART3 connector P1A signal description Caution: It should be noted that the standard phyCORE-i.MX31 module provides the UART3 signals x_CTS_RS232, x_RTS_RS232, x_RXD_RS232, and x_TDX_RS232 at RS-232 levels. Configuration jumpers on the module allow for TTL levels at these signals instead. If you have ordered a module with this configuration you should remember that the signals at P1A will be at TTL levels and not RS-232 levels.

  • Page 80: Can Interface (P2)

    CAN Interface (P2) Figure 21: CAN interface at connector P2 Plug P2 is the single DB-9M connector. P2 is connected to the CAN interface of the phyCORE-i.MX31 via jumpers. Controller Area Network (CAN) is a broadcast, differential serial bus standard, for connecting electronic control units and was specifically designed to be robust in electromagnetically noisy environments.

  • Page 81: Figure 21: Socket P2 Signal Diagram

    CANV+ is connected to VCC_5V JP11 CANV- is connected to GND 2) CAN is supplied via external power-supply Table 20: CAN external supply UMPER ETTING ESCRIPTION CANV+ is connected to CAN_OUT JP11 CANV- is not connected to GND © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 82: Push Buttons And Leds

    A detailed description of each button and LED is presented below. Issues a system reset signal. Momentarily pressing this button will toggle the nRESET_IN pin of the i.MX31 microcontroller LOW, causing the controller to reset. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 83: Table 23: System Control Buttons

    Buffered, programmable LED, controlled via the i.MX31 MCU3_3 signal. To turn this LED on, drive the MCU3_3 signal HIGH. To turn this LED off, drive the MCU3_3 signal LOW. CAN power CF power LCD power © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 84: Table 25: Carrier Board Leds

    Table 22: Carrier Board LEDs EFERENCE ESGINATOR OLOR ESCRIPTION green State of VCC_5V green State of VCC_3V3 green State of VIN (x_Charger_Input) (x_CHRGLED) programmable LED (x_LED) green CAN Power green CF Power green LCD Power © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 85: Table 26: Clock Selection

    TATE OF SW NUMBER TATE OF X (BOOT_MODE4) Table 26: x_switch (not used) TATE OF SW NUMBER TATE OF SW NUMBER TATE OF X SWITCH In the standard configuration, the main boot possibilities are: On UART/USB: © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 86 On NOR Flash: On NAND Flash: © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 87: Keypad (X18)

    13.5.6 Keypad (X18) Figure 24: Keypad interface at connector X2 The 2.00mm pin header connector X18 provides access to the i.MX31 keypad port signals. The pin-out of X18 is shown in Table 27 below. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 88: Table 30: Keypad Connector X18 Signal Map

    Table 27: Keypad connector X18 signal map IN NUMBER IGNAL VCC_3V3 VCC_3V3 x_KEY_COL0 x_KEY_COL1 x_KEY_COL2 x_KEY_COL3 x_KEY_COL4 x_KEY_COL5 x_KEY_ROW0 x_KEY_ROW1 x_KEY_ROW2 x_KEY_ROW3 x_KEY_ROW4 x_KEY_ROW5 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 89: Compact Flash Card (X10)

    Wi-Fi, Ethernet adapters… The signal x_EXP007 manage the CF power and can be enabled by jumper JP604. Two jumpers (JP4 and JP17) can be used to disable the CF feature. [more info] © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 90 JP17 [more info] JP604 [more info] © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 91: Security Digital Card/ Multimedia Card (X15)

    The phyCORE-i.MX on the Development Board 13.5.8 Security Digital Card/ MultiMedia Card (X15) Figure 26: SD Card interface at connector X15 A Security Digital interface is available on the baseboard at X15. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 92: Ethernet Interface (X27)

    The Ethernet interface is supplemented on the baseboard by the Ethernet transformer and the RJ45 connector. The Ethernet interface is accessible on the RJ45 socket at X27. The yellow LED extends to the x_ETH_/LED1 signal (Speed indicator) and the green LED extends to x_ETH_/LED2 (Link/Activity). © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 93 To power the baseboard with Power Over Ethernet, JP31 must be closed on pins 1+3 and 2+4. This technology enables to transmit power along with data over standard network cables. The theoretical current limit is 2A, it is enough for the standard baseboard configuration. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 94: Zigbee (X19)

    Zigbee is the name of a specification for a suite of high level communication protocols using small, low- power digital radios based on the IEEE 802.15.4 standard. For this feature, the Freescale MC13192 RF daughter card 1 should be plugged on X19. See the manufacturer’s data sheet for interfacing and operation. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 95: Figure 23: Freescale Daughter Card

    Zigbee connector IN NUMBER IGNAL NAME 1 to 18 Not connected x_/IRQ x_/Reset_Btn 21 to 34 Not connected x_MOSI x_SPICLK x_CE x_MISO VCC_ZIGBEE For more information, see Freescale MC13192 RF Daughter Card User’s Guide (MC13192RFCUG) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 96: One-Wire (X9)

    (a ground wire is also needed). One-Wire is similar in concept to I²C, but with lower data rates and a much lower cost. It is typically used to communicate with small inexpensive devices such as digital thermometers and weather instruments. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 97: Usb Host (X17)

    13.5.12 USB Host (X17) Figure 31: USB host interface at connector X17 The controller supports control of input USB devices such keyboard, mouse or USB key. The connector type of X17 is USB A. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 98: Usb Otg (X16)

    The controller supports the On-The-Go feature. The Universal Serial Bus On-The-Go is a device capable to initiate the session, control the connection and exchange Host/Peripheral roles between each other. The connector type of X16 is USB Mini AB. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 99: Universal Lcd Pin Header (X23)

    Figure 33: Universal LCD interface at connector X23 Pin header connector X23 provides a connection to the i.MX31 LCD interface. PHYTEC provides a compatible Sharp 240x320 TFT LCD that connects directly to X23. X23 can also be used to connect a compatible LCD to the i.MX31 for customer specific applications.
  • Page 100 LCD_R1 Red data 1 LCD_R2 Red data 2 LCD_R3 Red data 3 LCD_R4 Red data 4 LCD_R5 Red data 5 Ground LCD_ENAB LCD enable LCDPWR LCD power LCDPWR LCD power LCD_L/R Left/Right reverse mode © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 101 SW1 switch positions 1, 2, and 3 all provide a LOW or HIGH 3.3V signal depending on the switch position. All three switch outputs are routed to the LCD pin header X23.The Sharp LQ035Q7DH06 LCD provided with the i.MX31 Rapid Development Kit only makes use of the SW1-2 switch and SW1-4 switch. © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 102 Carrier Board. Table 30 below provides a summary of the SW1 dipswitch functions. Table 30: SW1 LCD switch operation WITCH ESCRIPTION UMBER Left/Right reverse mode (horizontal) Up/Down reverse mode (vertical) VGA/QVGA mode Enable/Disable LCD © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 103: Serial Lcd (X24)

    Furthermore, there is a 2 mm connector to connect a serial LCD. The pinout of this connector X24 is shown in the table below: Table 31: Serial LCD pin header IN NUMBER IGNAL ESCRIPTION © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 104 VCC_3V3 Power SLCD_CLK Serial LCD clock SLCD_D0 Serial LCD data SLCD_RS Serial LCD reset SLCD_CS Serial LCD chip select Power Power These LCD signals are decoupled from the module with 74LVC254 line driver circuits. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 105: Camera Interface (X7,X8)

    The phyCORE-i.MX on the Development Board 13.5.16 Camera Interface (X7, X8) Figure 35: Camera interface at connectors X7 and X8 The CSI signals are decoupled from the module with 74LVC254 line driver circuits. © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 106 13.5.16.1 PHYTEC Camera Connector (X7) Phytec offers different Camera-Sensor modules, which can be directly connected to X7 on the baseboard. RDERING UMBER EATURES VM-006-BW-xxx 1/2“, SXGA, 1280(H) x 1024 (V), MICRON MT9M001 VM-007-BW-xxx 1/3“, Wide-VGA, 752(H) x 480 (V), MICRON MT9V022SW VM-007-COL-xxx 1/3“, Wide-VGA, 752(H) x 480 (V), MICRON MT9V022COL...
  • Page 107 Ground CAM1_DD8 Data 8 CAM1_DD9 Data 9 Ground CAM1_LV Line start CAM1_FV Frame start Ground CAM1_GPIO I²C address configuration CAM1_SCL SCL Camera CAM1_SDA SDA Camera Ground x_RESET_3V3 /Reset VCC_3V3 Power supply VCC_3V3 Power supply © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 108 Data 7 CAM1_DD6 Data 6 CAM1_DD5 Data 5 CAM1_DD4 Data 4 CAM1_DD3 Data 3 CAM1_DD2 Data 2 CAM1_DD1 Data 1 CAM1_DD0 Data 0 Ground CAM1_PCLK Pixel clock input Ground CAM1_MCLK Clock output Ground x_SNAPSHOT Snapshot © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 109 The phyCORE-i.MX on the Development Board x_TRIGGER Trigger Ground © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 110: Jtag Interface (X6)

    The i.MX31 microprocessor provides a JTAG interface for debuggers and emulators. All JTAG interface signals extend from the phyCORE-connector to an ARM-compatible, dual row, 20-pin connector at X6. Table 34 below describes the pin assignment for the JTAG interface. Table 34: JTAG connector IN NUMBER IGNAL © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 111 The phyCORE-i.MX on the Development Board VCC_JTAG VCC_JTAG x_CPU_/TRST x_CPU_TDI x_CPU_TMS x_CPU_TCK x_CPU_RTCK x_CPU_TDO x_CPU_SRST x_CPU_/DE J_DBGACK © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 112: Expansion Bus Connectors

    Figure 37: Expansion Bus interface at connector X2 Expansion Bus connector X2 provides a 1-to-1 mapping of a majority of the phyCORE-i.MX31 module connector signals. Figure 37 above provides a detailed view of the pin labeling on the expansion bus.
  • Page 113 X14-5 x_LC_D10 x_LC_D10 X15-5 x_LC_D11 x_LC_D11 X16-5 x_LC_D13 x_LC_D13 X17-5 x_LC_D17 x_LC_D17 X14-6 VCC_BUS VCC_3V3 X15-6 x_SLCD_CLK X16-6 x_SLCD_D0 X17-6 x_A1 x_A1 X14-7 x_A3 x_A3 X15-7 x_A4 x_A4 X16-7 x_A6 x_A6 X17-7 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 114 See Mapper section X15-15 x_PC_BVD1 x_PC_BVD1 X16-15 x_PC_BVD2 x_PC_BVD2 X17-15 x_PC_PWRON x_PC_PWRON X14-16 x_/PC_RW x_/PC_RW X15-16 x_IOS16 x_IOS16 X16-16 x_/PC_CD1 x_/PC_CD1 X17-16 VCC_CSI NVCC_3_4_6 X14-17 x_CSI_MCLK x_ATA_DATA10 X15-17 x_TRIGGER See Mapper section X16-17 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 115 VCC_SD NVCC_3_4_6 X16-22 x_SD1_CLK x_SD1_CLK X17-22 x_SD1_DATA2 x_SD1_DATA2 X14-24 x_SD_D See Mapper section X15-24 x_SD_W See Mapper section X16-24 x_/IRQ See Mapper section X17-24 VCC_I2C NVCC_3_4_6 X14-25 x_I2C_SCL x_I2C_SCL X15-25 100A x_I2C_SDA x_I2C_SDA X16-25 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 116 X10-6 x_LC_D14 x_LC_D14 X11-6 x_LC_D15 x_LC_D15 X12-6 x_LC_D16 x_LC_D16 X13-6 x_SLCD_RS X10-7 x_SLCD_CS X11-7 x_A0 x_A0 X12-7 x_A2 x_A2 X13-7 x_A5 x_A5 X10-9 x_A7 x_A7 X11-9 x_A8 x_A8 X12-9 x_A10 x_A10 X13-9 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 117 NVCC_3_4_6 X10-16 x_/PC_WAIT x_/PC_WAIT X11-16 x_PCOE x_PCOE X12-16 x_PC_READY x_PC_READY X13-16 x_PC_RST x_PC_RST X10-17 x_/PC_CD2 x_/PC_CD2 X11-17 x_PC_VS1 x_PC_VS1 X12-17 x_PC_VS2 x_PC_VS2 X13-17 x_CSI_ENABLE See Mapper section X10-19 x_CSI_PCLK x_ATA_DATA13 X11-19 x_CSI_VSYNC x_ATA_DATA11 X12-19 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 118 X11-22 x_USBHOST2_DA4 x_USBHOST2_DA4 X12-22 x_USBHOST2_DA6 x_USBHOST2_DA6 X13-22 x_SD1_CMD x_SD1_CMD X10-24 x_SD1_DATA0 x_SD1_DATA0 X11-24 x_SD1_DATA1 x_SD1_DATA1 X12-24 x_SD1_DATA3 x_SD1_DATA3 X13-24 x_MOSI x_CSPI1_MOSI X10-25 x_MISO x_CSPI1_MISO X11-25 x_SPICLK x_CSPI1_SCLK X12-25 x_CE x_CSPI1_SS1 X13-25 100B x_switch X17-25 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 119 X8-5 X2-6 x_RXOUTL x_RXOUTL X5-6 x_RXOUTR x_RXOUTR X7-6 x_RXINL x_RXINL X8-6 x_RXINR x_RXINR X2-7 x_MC1RIN x_MC1RIN X5-7 x_MC1LIN x_MC1LIN X7-7 x_LED See Mapper section X8-7 VCC_RS232 NVCC_8 X2-9 x_TXD_DCE1_TTL x_TXD_DCE1_TTL X5-9 x_RXD_DCE1_TTL x_RXD_DCE1_TTL X7-9 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 120 X5-15 x_EXP033 x_GPO1 X7-15 x_EXP034 x_GPO2 X8-15 x_EXP036 x_GPO4 X2-16 x_EXP039 x_ADIN5 X5-16 x_EXP041 x_ADIN7 X7-16 x_EXP042 x_ADIN8 X8-16 x_EXP044 x_ADIN10 X2-17 x_EXP047 x_ADTRIG X5-17 x_EXP049 x_USBOTG_DA0 X7-17 x_EXP050 x_USBOTG_DA3 X8-17 x_EXP052 x_USBOTG_DA5 X2-19 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 121 X5-21 x_EXP073 x_MCU1_25 X7-21 x_EXP074 x_MCU1_26 X8-21 x_EXP076 x_/RESET X2-22 x_EXP079 x_CAPTURE X5-22 x_EXP081 X7-22 x_EXP082 X8-22 x_EXP084 X2-24 x_EXP087 X5-24 x_EXP089 X7-24 x_EXP090 X8-24 x_EXP092 X2-25 x_EXP095 X5-25 x_EXP097 X7-25 100C x_EXP098 X8-25 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 122 X9-5 x_KEY_ROW5 x_KEY_ROW5 X3-6 x_KEY_COL0 x_KEY_COL0 X4-6 x_KEY_COL1 x_KEY_COL1 X6-6 x_KEY_COL2 x_KEY_COL2 X9-6 x_KEY_COL3 x_KEY_COL3 X3-7 x_KEY_COL4 X4-7 x_KEY_COL5 X6-7 x_RTS_DCE1_TTL x_RTS_DCE1_TTL X9-7 x_CTS_DCE1_TTL x_CTS_DCE1_TTL X3-9 x_RI_DCE1_TTL x_RI_DCE1_TTL X4-9 x_DCD_DCE1_TTL x_DCD_DCE1_TTL X6-9 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 123 X6-15 x_EXP035 x_GPO3 X9-15 x_EXP037 x_ETH_Wkp X3-16 x_EXP038 x_/BATTDET X4-16 x_EXP040 x_ADIN6 X6-16 x_EXP043 x_ADIN9 X9-16 x_EXP045 x_ADIN11 X3-17 x_EXP046 x_ADOUT X4-17 x_EXP048 x_/LOWBAT X6-17 x_EXP051 x_USBOTG_DA4 X9-17 x_EXP053 x_RXD_DTE2_TTL X3-19 x_EXP054 x_RTS_DTE2_TTL X4-19 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 124 X6-21 x_EXP075 x_Tout X9-21 x_EXP077 x_/FL_WP X3-22 x_EXP078 x_COMPARE X4-22 x_EXP080 x_GPIO3_1 X6-22 x_EXP083 X9-22 x_EXP085 X3-24 x_EXP086 X4-24 x_EXP088 X6-24 x_EXP091 X9-24 x_EXP093 X3-25 x_EXP094 X4-25 x_EXP096 X6-25 100D x_EXP099 X925 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 125: Carrier Board Physical Dimensions

    The phyCORE-i.MX on the Development Board 13.5.19 Carrier Board Physical Dimensions © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 126: Sharp Lq035Q7Dh06 Lcd Adapter

    X3 connects directly to the Sharp LCD data ribbon cable, while X2 connects to the 4-wire touch panel ribbon cable. Potentiometer R16 on the LCD-004 adapter board provides an easy means to adjust the LCD brightness. © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 127 The phyCORE-i.MX on the Development Board In addition to the brightness control, the i.MX Carrier Board provides dipswitch SW1 to control LCD enable/disable and vertical image orientation. Refer to section 13.5.14 for a description of SW1 and its functionality. © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 128: Physical Dimensions

    13.6.1 LCD-004 Physical Dimensions © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 129: Revision History

    Revision History 14 Revision History Date Version numbers Changes in this manual 16-July-2007 Manual L-700e_0 First draft, Preliminary documentation. PCM-037 Describes phyCORE-i.MX31 with i.MX PCB# 1262.2 Baseboard. PCM-970 PCB# 1281.1 © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 130: Component Placement Diagram

    C181 C146 CB400 C147 RN19 RN20 RN21 RN22 RN23 RN24 RN25 RN26 R100 RN39 RN40 RN27 RN28 RN29 RN30 RN35 RN36 RN37 RN38 CB402 C123 CB301 CB300 Figure 39: phyCORE-i.MX31 component placement (top view) © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 131 RN46 C191 C142 C143 RN32 RN34 RN33 RN31 CB309 C192 C118 C110 C114 C141 CB302 CB351 RN47 RN45 C139 C138 C137 CB150 CB350 RN42 RN41 CB303 C148 Figure 40: phyCORE-i.MX31 component placement (bottom view) © PHYTEC Messtechnik GmbH 2007 L-700e_0...

  • Page 132: Index

    System Configuration ....31 System Memory......32 I²C EEPROM ....... 39 ISP1301........44 Technical Specifications ....51 TTL Level........42 J603..........41 JA-002 ......... 49 U300 ..........44 JTAG Interface ......46 U301 ..........42 JTAG-Emulator Adapter ....49 U302 ..........42 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 133 U601..........39 VBAT ...........29 U602........35, 36 U603........35, 36 UART3......... 42 Weight..........52 UART5......... 42 USB Device ......... 44 USB Host........44 X201 ..........46 USB On-The-Go......44 USB OTG ........44 USB Transceiver ......44 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 134 How would you improve this manual? Did you find any mistakes in this manual? page Submitted by: Customer number: Name: Company: Address: Return to: PHYTEC Technologie Holding AG Postfach 100403 D-55135 Mainz, Germany Fax : +49 (6131) 9221-33 © PHYTEC Messtechnik GmbH 2007 L-700e_0...
  • Page 135 Published by © PHYTEC Messtechnik GmbH 2007 Ordering No. L-700e_0 Printed in Germany...

Table of Contents
