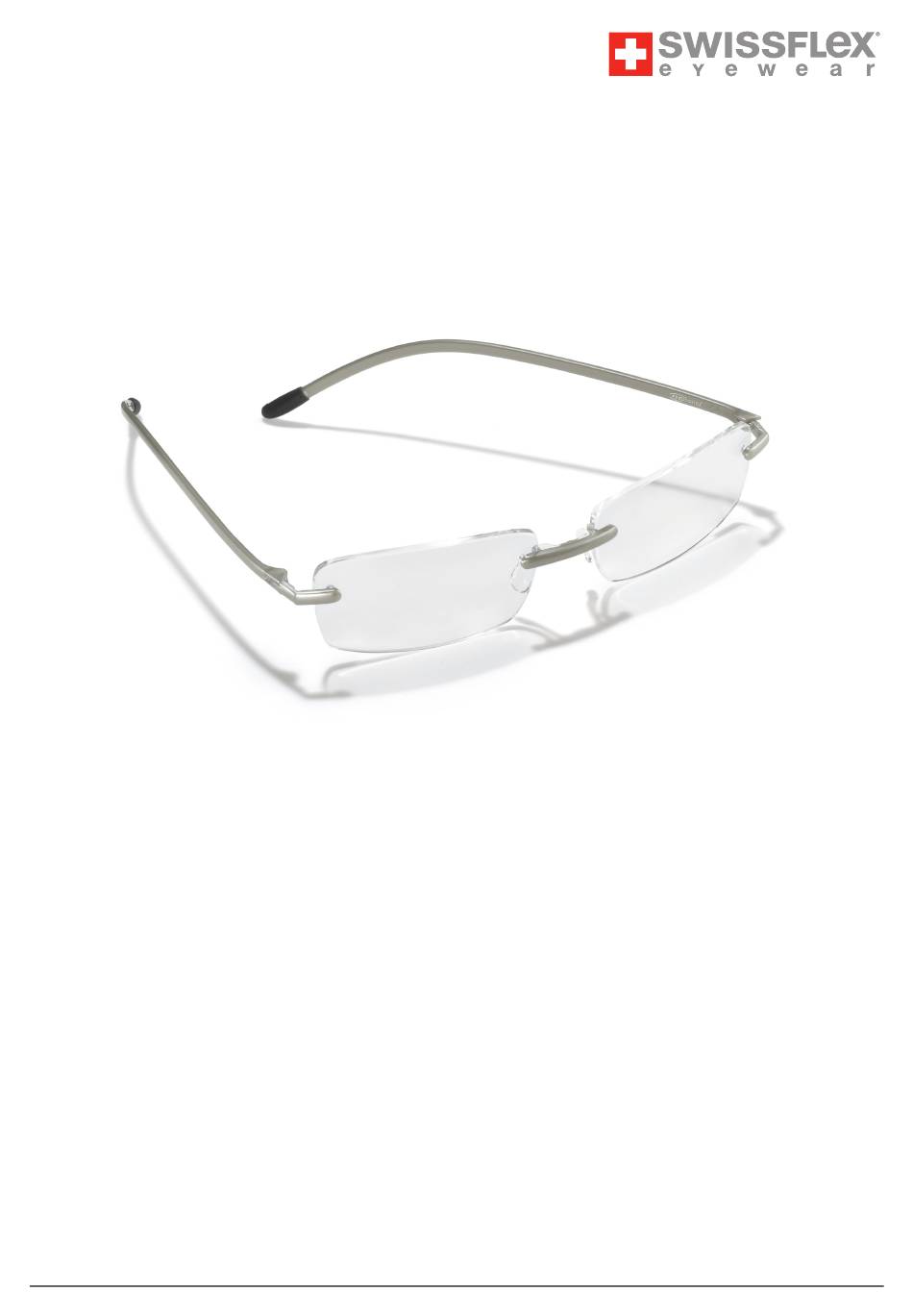

- Page 1 SF eyephorics / Technical Manual 1. Frame system 2. Frame parts 3. Devices / Tools 4. Technical data drilling 5. Mounting instructions for straight temple Swissflex eyephorics (SFE) Version 04 Optik Werkstatt...
-
Page 2: Frame System
• matt • frosty Pictures of all the elements above are available in the legend and the color overviews of the order forms. perfekte Passform modulare Individualität 100% Swiss-made Swissflex eyephorics (SFE) Version 04 | Page 1-1 Optik Werkstatt... -
Page 3: Frame Parts
2. Frame parts Bridge Nose pad Hinge Temple Endpiece Swissflex eyephorics (SFE) Version 04 | Page 2-1 Optik Werkstatt... - Page 4 3. Devices / Tools The devices and tools are matched especially for Swissfl ex and only by using them the optimal mounting quality can be guaranteed. Tools Article code Glueing station small for 1 frame 70202007 Special glue for eyephorics 70103003 Dosing needle with Tefl on 70103002...
- Page 5 4. Technical data drilling DETAIL A ± 0.01 ± 0.01 4.15 ± 0.01 ± 0.01 ± 0.01 (A minimum glass thickness of 1.8 mm is recommended) Swissflex eyephorics (SFE) Version 04 | Page 4-1 Optik Werkstatt...
- Page 6 Make sure bridge and hinges fit closely to outside of lens. Cut overlapping bolt (of bridge and hinges) on inside of lens. Click in temple into hinge holding it parallel to front. Swissflex eyephorics (SFE) Version 04 | Page 5-1 Optik Werkstatt...
- Page 7 Align eyewear so that temples are lying upon each other. Let a dosed amount of glue flow around shortened bolts. Remove grinding aid pads from lenses. Press pad onto bolt of the bridge with mounting tool. Swissflex eyephorics (SFE) Version 04 | Page 5-2 Optik Werkstatt...
- Page 8 Check symmetry and tension of temples and adjust if needed by punctual heat treat- ment. Only use Aceton or soap water for cleaning the frame (without lenses). Swissflex eyephorics (SFE) Version 04 | Page 5-3 Optik Werkstatt...
