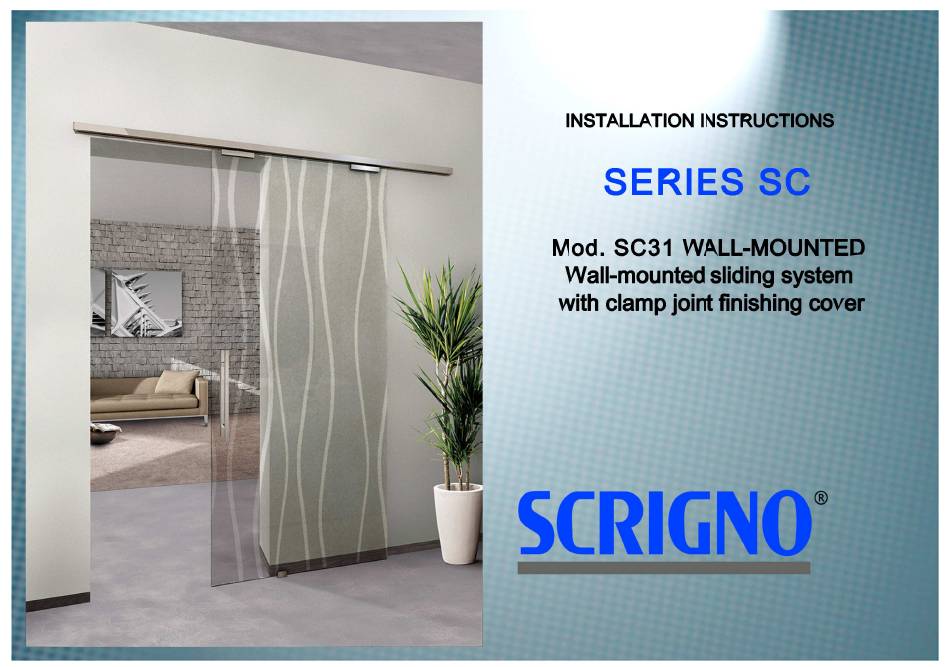

Scrigno SC Series Installation Instructions Manual

Wall-mounted sliding system

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scrigno SC Series

  • Page 2 Composition of kit SC3140 SC3110 SC3100 SC3140 max. 100 kg SC3120 10 mm KF-SC31-R0_EN PAGE 2 of 15...
  • Page 3 important information • • • • • • • • • • • • • • • • • • • • KF-SC31-R0_EN PAGE 3 of 15...
  • Page 4 principles of planning DIAGRAM OF WALL OPENING AND CROSS-SECTION RECOMMENDED GLASS: 10 mm TEMPERED hv=H-10 H=opening height Sliding door with handle LG = Track length H = Opening height Lv = Opening width KF-SC31-R0_EN PAGE 4 of 15...
  • Page 5 principles of planning OPENING DIAGRAMS LG = 2 (LV + S) + 50 Floor guide width 50 mm to be positioned flush with the door LG - 50 VM = LV + 50 + S LV = Overlap on handle side S = 20 mm recommended Floor guide width 50 mm to be...
  • Page 6 preparation and cutting of components 1. Measure the width Lv of the wall opening. 2. Mark profile bars SC3110 and SC3120 for cutting to size at the distance of 2Lv + 100 mm. 3. Cut the profile bars to size using specific cutting tools and suitable personal protective equipment.
  • Page 7 drilling of support surface SC3110 4. Place the profile bar at a height of min. H+59 mm, keeping it pressed firmly against the fixing surface (masonry or other materials). 5. Mark the support surface through the holes in the profile bar to indicate the position of the holes to be drilled.
  • Page 8 installation of track and floor guide 7. Fix the SC3110 profile bar to the wall using suitable fixing accessories. 8. Check that the screws are correctly tightened to ensure that their heads do not project, which would prevent smooth sliding of the runners. 9.
  • Page 9 assembly of hangers and end stops SC3110 11. Insert the hangers and end stops* into the SC3110 profile bar without fixing them in their final positions, leaving them free to slide inside the profile bar. 12. Respect the sequence shown in the diagrams, ensuring that the hangers are on the interior with respect to the end stops.
  • Page 10 assembly of glass door and accessories 13. Thoroughly clean the contact surfaces between the glass and the accessories. 14. Assemble the CERPOS170 clamps onto the glass door as indicated in the diagram, taking care to follow the correct order of components as shown. As a check, the countersunk heads of the clamp tightening screws must be facing the wall.
  • Page 11 assembly of sliding door SC3110 5 mm 10-15 mm SC3110 16. Unscrew the hanger adjustment screw so that it remains inserted into the hanger for about 5 mm, and then turn the upper locknut until it reaches a distance of about 10-15 mm from the lower nut. 17.
  • Page 12 adjustment of sliding doors WAF13 10 Nm ! Screw with SC3110 hexagonal head WAF10 SC3110 WAF10 WAF10 21. Position the sliding door in the maximum opening position. 22. Adjust door height by turning the adjustment nut at the bottom of the clamp, using an open-ended 10 mm wrench.
  • Page 13 positioning the end stop ! CLICK ! ! CLICK ! ! CLICK ! 24. Position the door in the closure position 25. Slide stop A along the SC3110 track until it is above the hanger wheels, so that the spring presses down onto the hanger.
  • Page 14 finishing cover and end caps 30. Install the SC3140 end caps and secure them with the screws supplied, fitting them using the SC3110 recesses provided on the track and the cover. SC3130 ! CLICK ! SC3140 29. After cutting the SC3130 cover to length Lv, rest it against the SC3110 track, pressing it home and listening for it to click correctly into place.
  • Page 15 final assembly KF-SC31-R0_EN PAGE 15 of 15...

This manual is also suitable for:

Sc31
