Installation Manual: PAD100-DRTS Duct Remote Test Switch
NOTICE TO THE INSTALLER
This manual provides an overview and the installation instructions for the PAD100-DRTS module. This module is only compatible
with addressable fire systems that utilize the PAD Addressable Protocol.
All terminals are power limited and should be wired in accordance with the requirements of NFPA 70 (NEC) and NFPA 72 (National
Fire Alarm Code). Failure to follow the wiring diagrams in the following pages will cause the system to not operate as intended. For
further information, refer to the control panel installation instructions.
The module shall only be installed with listed control panels. Refer to the control panel installation manual for proper system
operation.
1. Description
The PAD100-DRTS provides a supervised remote test switch for the PAD100-DUCTR duct detector. Active and Pilot LEDs provide
status of the PAD100-DUCTR detector. Keyed switch allows remote testing of the PAD100-DUCTR duct detector. It installs on a
single gang box or Potter P32-BB/DBB.
Before connecting a device to the PAD100-DUCTR, take the following precautions to prevent potential damage to the SLC or
device.
•
Power to the PAD100-DUCTR is removed.
•
Field wiring on module is correctly installed.
•
Field wiring has no open or short circuits.
2. Technical Specifications
Operating Voltage
Max Standby Current
Max Alarm Current
Max. no. of PAD100-DRTS per PAD100-DUCTR
Operating Temperature Range
Operating Humidity Range
Dimensions
Mounting Options
Shipping Weight
3. Wiring Diagram
The wiring diagram shown below illustrates how to wire a PAD100-DRTS. Additionally, an installation diagram shows how to install
the module using a compatible electrical box.

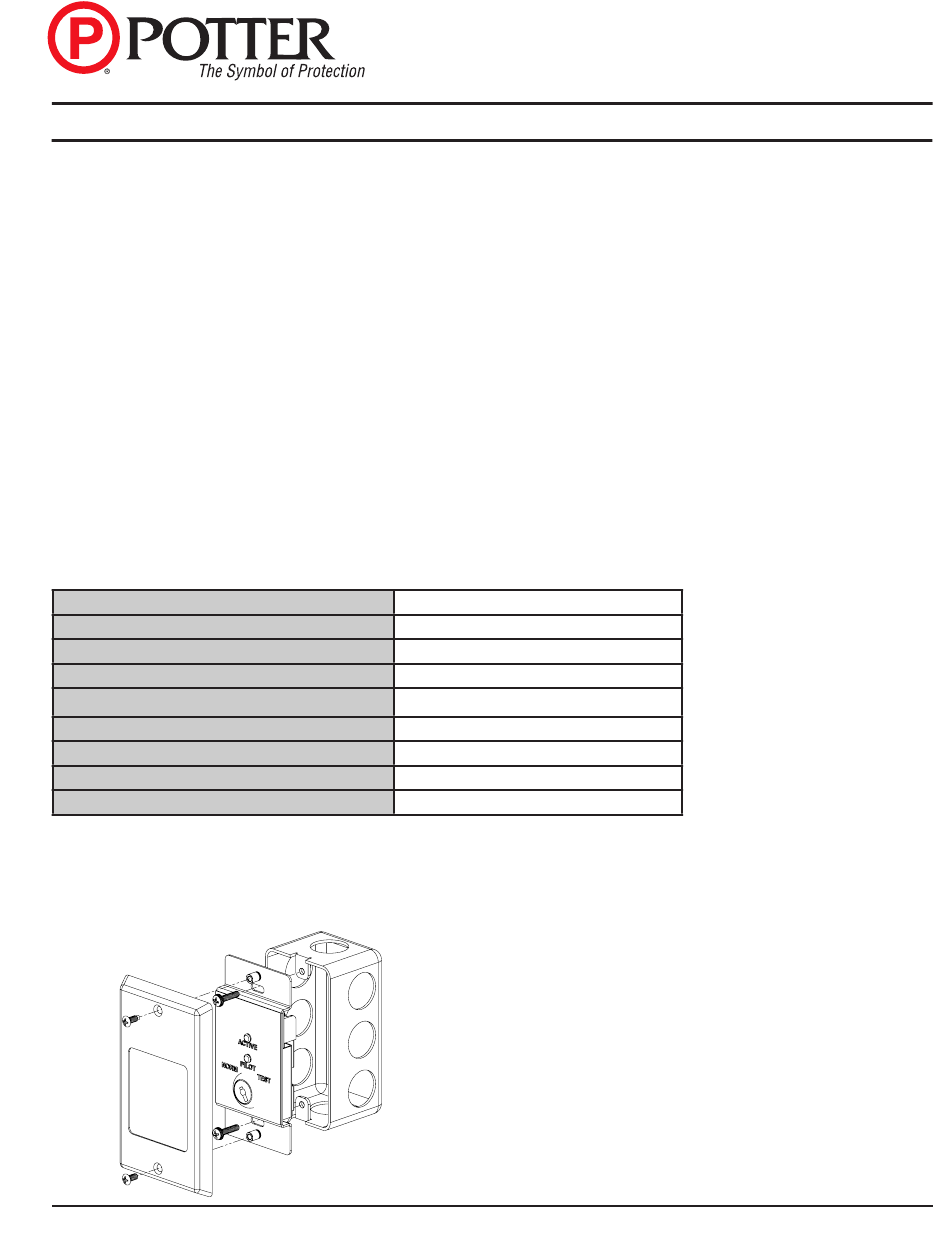

Figure 1. Example of Installing a PAD100-DRTS Using a Compatible Electrical Box
Potter Electric Signal Company, LLC
24.0V
10 mA
15 mA
1
̊
̊
̊
32
to 120
F (0
0 to 93% (non-condensing)
4.75" L x 2.75" W x 1" D
Single gang box or Potter P32-BB/DBB
0.65 lbs
•
St. Louis, MO
•
Document 5406313-A 02/16
̊
to 49
C) Indoor Only
Phone: (800) 325-3936
•
www.pottersignal.com
PAGE 1 OF 2
