vds BASIC 09 24 Technical Installation Manual page 18

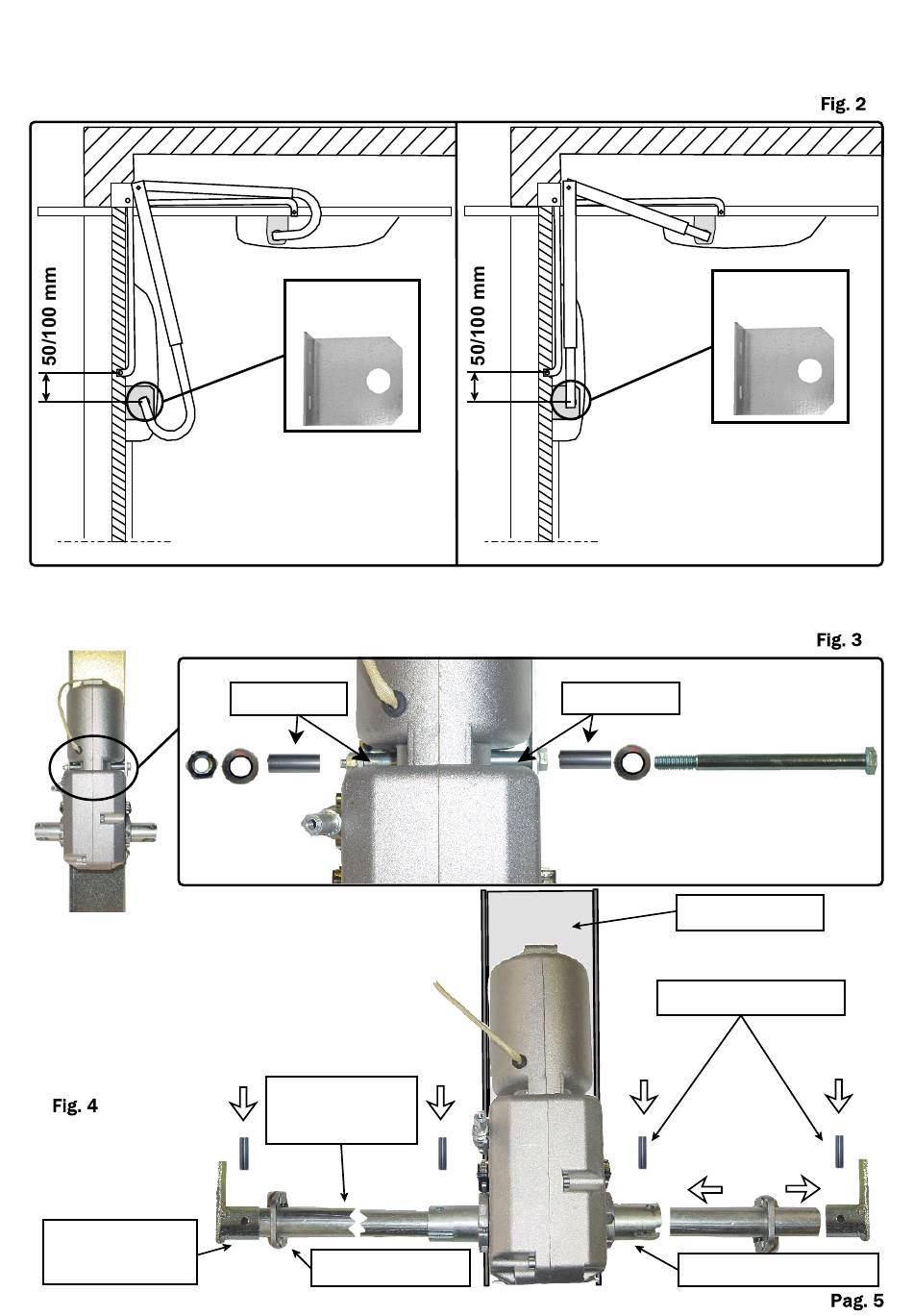

Place and securely fix the tube support to the door frame, at a distance between
50 and 100 mm downwards by taking as reference the attachment pin of the
existing arm..
Curved telescopic arms
Place the motor M on the fixing plate so that it is in line with the tube supports
and lock it, with the two screws by inserting into the upper one the two spacers.
Lock with the nuts.
M
Insert the transmission tubes in the
motor shaft and in the broaching arms
(straight or curved) and make 8mm
holes. Insert the elastic plug to block
the tubes.
Broaching
arm
Tube
support
Spacer
Transmission
tube
Tube support
support
Straight telescopic arms
Spacer
Fixing plate
Elastic plugs
Motor shaft
Tube
