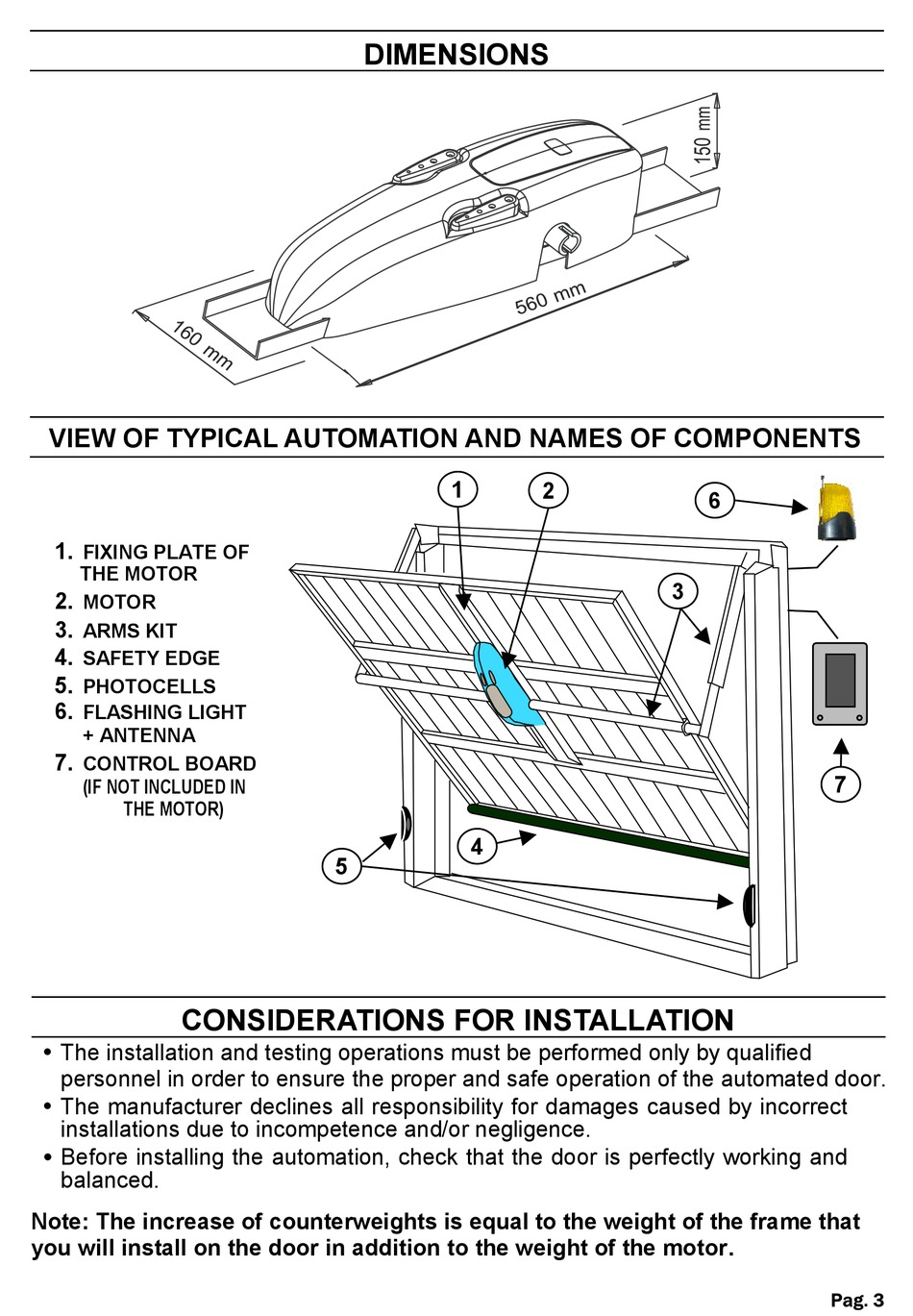

VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS

1.
FIXING PLATE OF
THE MOTOR
2.
MOTOR
3.
ARMS KIT
4.
SAFETY EDGE
5.
PHOTOCELLS
6.
FLASHING LIGHT
+ ANTENNA
7.
CONTROL BOARD
(IF NOT INCLUDED IN
THE MOTOR)

CONSIDERATIONS FOR INSTALLATION

Ÿ The installation and testing operations must be performed only by qualified
personnel in order to ensure the proper and safe operation of the automated door.
Ÿ The manufacturer declines all responsibility for damages caused by incorrect
installations due to incompetence and/or negligence.
Before installing the automation, check that the door is perfectly working and
balanced.
Note: The increase of counterweights is equal to the weight of the frame that
you will install on the door in addition to the weight of the motor .

DIMENSIONS

1
4
5
2
6
3
7
