INSTALLATION

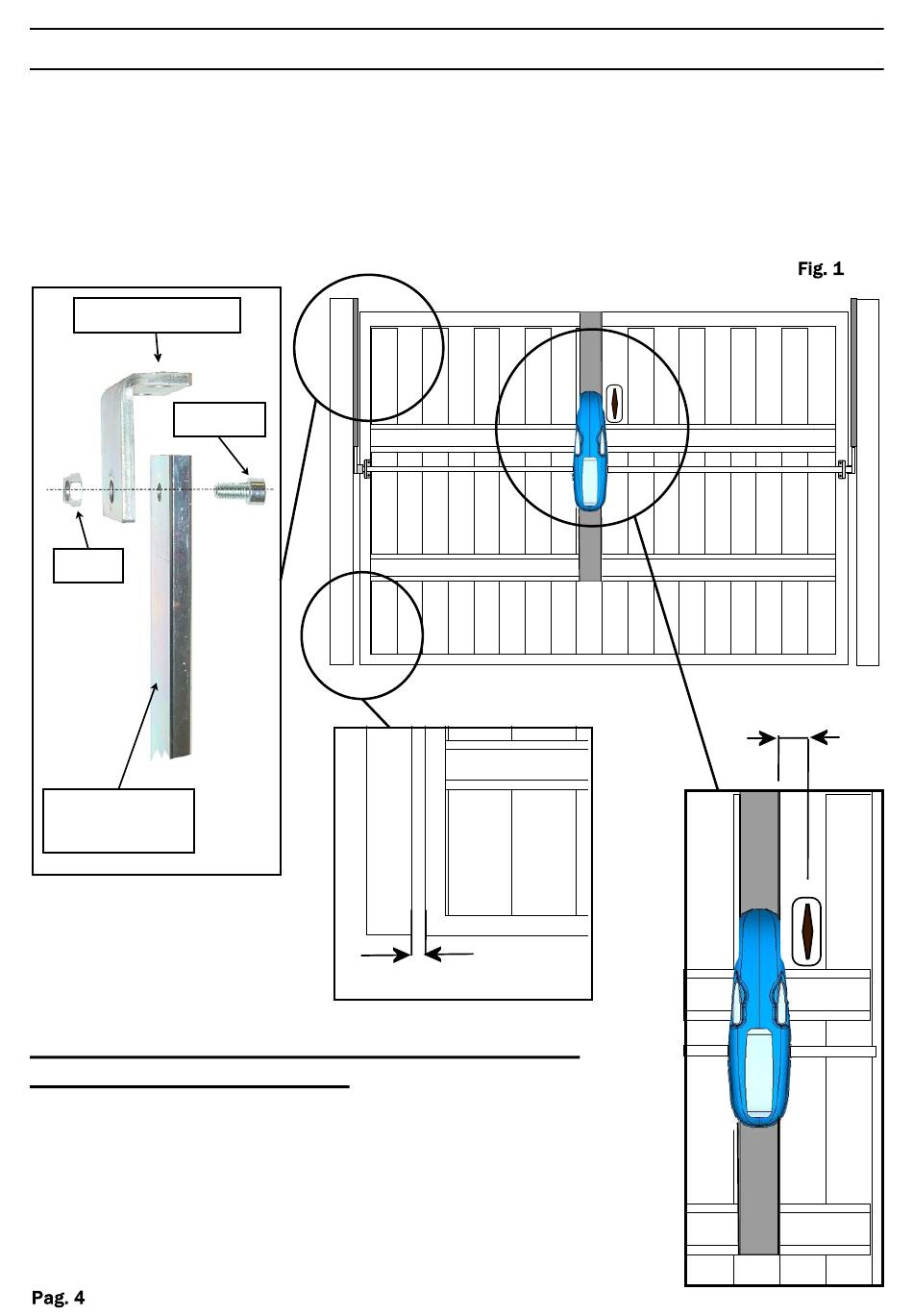

Place and securely fix the anchor plate of the telescopic arm to the door frame so
that the movement of the arm does not overlap with the existing arm of the door.
Make sure there are at least 20 mm of space between the door frame and the box of
the counterweights.
Note: If you are not able to use the straight telescopic arm, use the curved
one
Anchor plate
L
S
Screw
Nut
100mm
Telescopic
arm
S
20mm
EXAMPLE AUTOMATION ONE MOTOR WITH
CENTRAL INSTALLATION
INSTALLATION OF THE FIXING PLATE
Place the fixing plate L motor support to the door, at a
distance of 100 mm from the lock S of the door and fix
securely.
