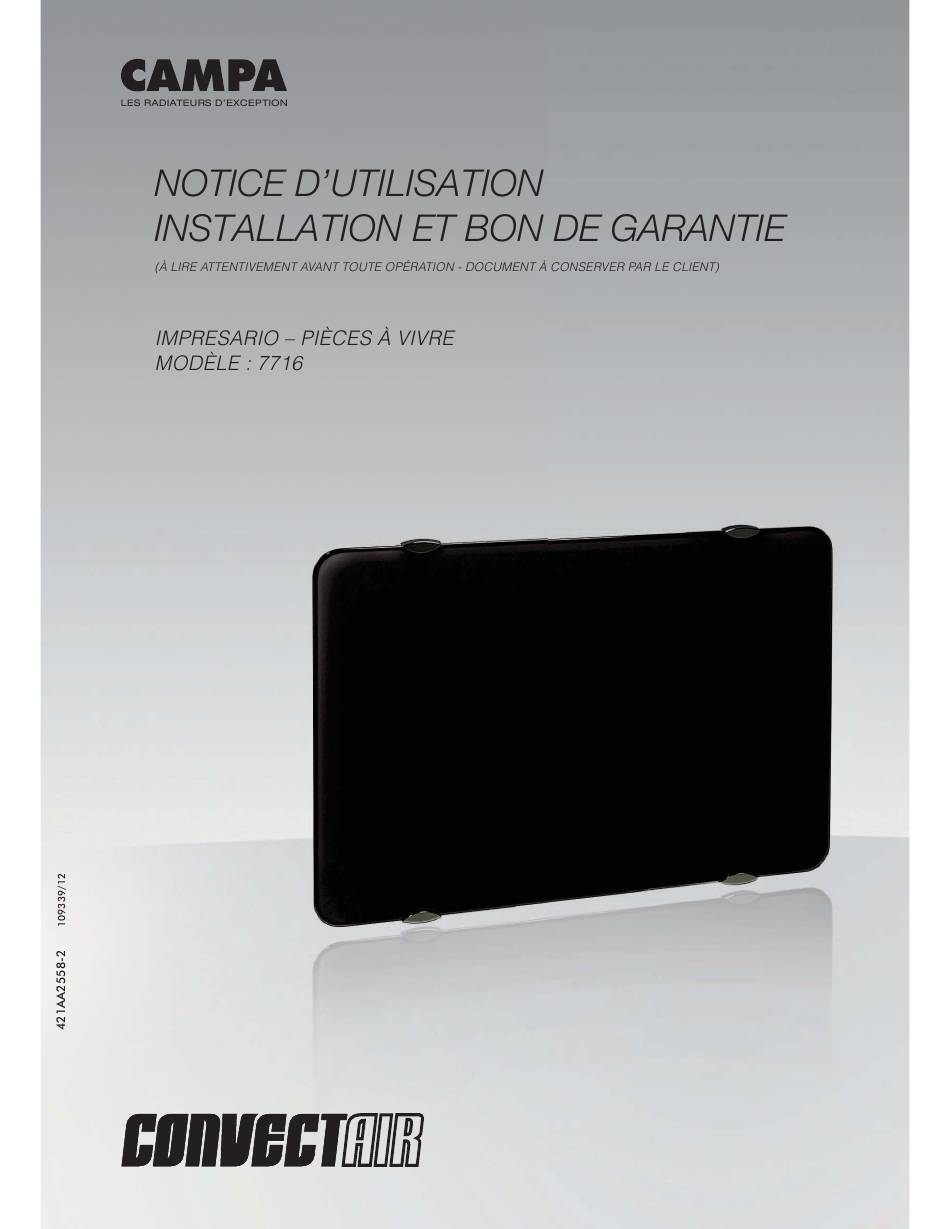

Campa 7716 Installation & Operating Instructions Manual

Hide thumbs Also See for 7716:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7716 and is the answer not in the manual?

Questions and answers

Related Manuals for Campa 7716

Summary of Contents for Campa 7716

  • Page 2 INTRODUCTION SOMMAIRE...
  • Page 3 DÉMARRAGE RAPIDE...
  • Page 4 SPÉCIFICATIONS RECOMMANDATIONS DE MISE EN PLACE...
  • Page 5 RECOMMANDATIONS DE MISE EN PLACE (suite)
  • Page 6 INSTALLATION ET FIXATION...
  • Page 7 RACCORDEMENT ÉLECTRIQUE...
  • Page 8 COMMENT UTILISER VOTRE APPAREIL...
  • Page 9 COMMENT UTILISER VOTRE APPAREIL (suite)
  • Page 10 COMMENT UTILISER VOTRE APPAREIL (suite) Le mode AUTO : utilisation de l’appareil avec un Programmeur ou par Fil pilote INSTRUCTION DU DESCRIPTION ÉCRAN PROGRAMMEUR Température désirée de la Mode Confort pièce, ex : 19.5 °C (67 °F) Abaissement de 3.5 °C (6 °F) de Mode Économie la température pour un (“Eco”)
  • Page 11 COMMENT UTILISER VOTRE APPAREIL (suite)
  • Page 12 COMMENT UTILISER VOTRE APPAREIL (suite)
  • Page 13 COMMENT UTILISER VOTRE APPAREIL (suite)
  • Page 14 COMMENT UTILISER VOTRE APPAREIL (suite)
  • Page 15 ENTRETIEN ET CONSEILS...
  • Page 16 AIDE AUX DIAGNOSTICS...
  • Page 17 IDENTIFICATION DE VOTRE APPAREIL...
  • Page 19 FICHE TECHNIQUE 7716 Impresario INSTALLATION ET RACCORDEMENT Pièce à vivre Hauteur d' i nstallation recommandée 15 cm (6 po). Dégagements minimums í Avant: 75 cm (30 po) Côtés: 15 cm (6 po) Haut: 15 cm (6 po) Bas: 2,5 cm (1 po).
  • Page 20 EXCEPTIONALLY RADIANT INSTALLATION & OPERATING INSTRUCTIONS (READ CAREFULLY BEFORE ANY OPERATION - DOCUMENT TO BE KEPT BY END USER) IMPRESARIO – LIVING SPACES MODEL NUMBER : 7716...

  • Page 21: Table Of Contents

    INTRODUCTION Dear owner, - Congratulations on the purchase of this premium electric heater. CONVECTAIR develops and produces the highest quality heating products in the electrical industry. - To obtain the best results and the ultimate in performance and comfort, please take a moment to read the installation, operation and maintenance instructions detailed in this manual.

  • Page 22: Quickstart Guide

    QUICKSTART GUIDE “ON” indicator light “Open Window” Activate/Deactivate key Temperature adjustment knob “ON/Stanby” key Operating mode selection key Operating mode display Heating indicator light Electrical requirements : 208 V / 220-240 V Install a 2 in. x 3 in. wall junction box, positioned within the space defined by the wall bracket.

  • Page 23: Specifications

    SPECIFICATIONS Impresario, Impresario, Impresario, Optional setback system (sold separately) : Your IMPRESARIO can be fitted with the optional CONVECTAIR Programmer Modules to program temperature setbacks in periods of prolonged absence, providing the same comfort and more savings. For more information, contact your electrical contractor or dealer, or call CONVECTAIR (see Back Cover).
  • Page 24 Weight 17 Kg 820 mm 565 mm 384 mm 294 mm 115 mm 181 mm 7716-C10 800 / 1000W 4A / 5A 37.4 lbs 32 1/4 in. 22 1/4 in. 7 1/8 in. 15 1/8 in. 11 1/2 in. 4 1/2 in.

  • Page 25: Installation And Mounting

    INSTALLATION AND MOUNTING CAUTION Because of the heavy weight of this heater, particular care must be taken when handling and installing it. Use screws and anchors adapted to the wall type and weight of the heater. - Remove the mounting bracket from the heater – loosen the locking screw if necessary. - Respect all minimum clearances (page 5 Fig.

  • Page 26: Electrical Connection

    ELECTRICAL CONNECTION CAUTION To prevent short circuits and electrical shocks, turn the power off at the main panel before installing or repairing the heater. If the power cord of the appliance is damaged, it must be replaced by CONVECTAIR or an approved service depot to avoid any danger.

  • Page 27: Operating Instructions

    OPERATING INSTRUCTIONS “Open Window” Activate/Deactivate key “ON” indicator light Temperature adjustment knob “ON/Stanby” key Operating mode selection key Operating mode display Heating indicator light Throughout the heating season, your CONVECTAIR heater stays warm and maintains a constant tempe- rature in the room. During cold spells, it is normal for the heater to become hotter.
  • Page 28 OPERATING INSTRUCTIONS (continued) Changing the temperature scale from Celsius to Fahrenheit 1 - Press the ON/Standby key to turn the heater off (blank screen) 2 - Simultaneously press the ON/Standby and Mode keys and hold for 3 seconds. The screen displays : NIV 0 or NIV 1. 3 - Press the Window key for 3 seconds.
  • Page 29 OPERATING INSTRUCTIONS (continued) The Auto Mode : using the heater with an optional Programmer or other Pilot wire system. PROGRAMMER DESCRIPTION SCREEN DISPLAY INSTRUCTION Comfort temperature set on Comfort mode the heater, ex : 19.5 °C (67 °F) Economy or setback mode 3.5 °C (6 °F) setback from the (“Eco”) comfort temperature...
  • Page 30 OPERATING INSTRUCTIONS (continued) Control Panel Lock This function disables all the keys and the Temperature adjustment knob in order to prevent unwanted tampering of the controls. To lock the panel : simultaneously press the Window key the Temperature adjustment knob until the symbol appears on the screen.
  • Page 31 OPERATING INSTRUCTIONS (continued) COMFORT MODE When the system is in COMFORT MODE, the mode indicator will be over the symbol. When setting the COMFORT mode temperature, the ECO mode temperature will appear in the top right hand corner of the screen. ECO MODE* When the system is in ECO MODE, the mode indicator will be over the...
  • Page 32 OPERATING INSTRUCTIONS (continued) Turn the temperature adjustment knob to lock ot unlock functions Settings screen Meaning Function unlocked Locks or unlocks the “open window” function Function locked Limited temperature Function unlocked adjustment range : when activated, this function only allows the temperature Function locked setting to be adjusted within ±...
  • Page 33 OPERATING INSTRUCTIONS (continued) RE-INITIALIZING THE THERMOSTAT Factory settings can be reinstated by simultaneously pressing the 3 keys and the Temperature adjustment knob for 10 seconds while the thermostat is in standby mode. (This operation can only be carried out while the heater is in standby mode) Meaning of the symbol: Page 14...

  • Page 34: Maintenance And Advice

    MAINTENANCE AND ADVICE To keep your CONVECTAIR unit clean, regular maintenance is suggested. To remove dust, use a soft cloth. To remove a stain, use a damp cloth. NEVER USE ABRASIVE OR ACETONE-BASED PRODUCTS TO CLEAN YOUR HEATER AS THIS MAY DETERIORATE THE EPOXY FINISH. Operation and maintenance tips Your CONVECTAIR heater will become hot when in use.

  • Page 35: Troubleshooting

    TROUBLESHOOTING PROBLEM CHECK ACTION The heater Check that the display screen Press the ON/Standby key to ON. does not heat and green light are ON. The screen is ON, but the Set the thermostat. heating indicator light is OFF. If the room temperature is already high enough, the heater will not heat.

  • Page 36: Identification Of Your Heater

    IDENTIFICATION OF YOUR HEATER IMPORTANT Product information appears on the heater’s identification label. The identification label is located on the lower right hand side of the heater (same side as the thermostat). It includes : - The complete model number and its production reference number (A) that must be included in any warranty claim.
  • Page 37 WARRANTY 2 years against all defects/ 5 years on heating element. All CONVECTAIR heaters are subject to a double warranty: 2 years on all parts and manufacturing defects and 5 years on the heating element itself. Warranty is applicable from date of purchase by the customer and under certain specific or installation).
  • Page 38 TECHNICAL SPECIFICATIONS 7716 Impresario INSTALLATION AND CONNECTION Living space Recommended installation height 6 in (15 cm). Clearances í Front: 30 in (75 cm) Sides: 6 in (15 cm) Above: 6 in (15 cm) Underneath: 1 in (2,5 cm). Installation Quick-mounted surface installation with screw-in bracket.
