METER Em50 Series Quick Start Manual

Em50

Introduction

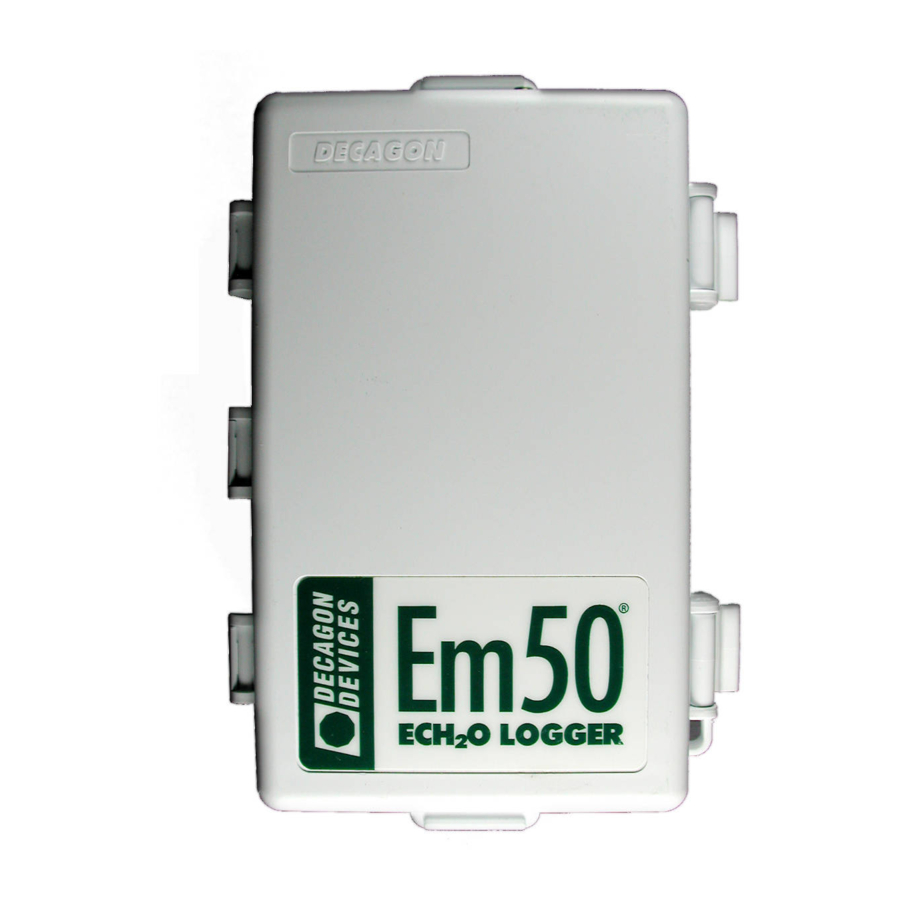

Thank you for purchasing an Em50
is a data collection device that will allow you to collect and store data from as many
as five sensors. The stored data can be downloaded via the included USB cable. It is
configured using ECH2O

Packing List

Please check to make sure all listed items are present. If any item is missing or
damaged, please contact METER or your local distributor.
• Em50 series data logger
• USB cable
• Packet with five zip ties and five AA alkaline batteries
• USB with software, driver, and manual.
NOTE: ECH2O Utility software and driver is required for communication with the Em50 series data loggers. The
software and driver must be installed before using the Em50 (see Em50 User Manual for software and driver
installation instructions).

Turning On and Configuring the Em50

1. Install the 5 AA Alkaline batteries (included with shipment).
2. Press the silver reset button located above the batteries.
3. Connect the USB cable from the computer's USB port to the Em50's COM port.
4. Launch ECH2O Utility software.
5. Select "Direct on COM..." from the "Connect via" dropdown menu.
Click on the Connect icon.
6.
7. On the main menu, name the Em50 using a maximum of 8 characters (optional).
8. Select the sensors for each port, as well as a measurement interval.
9. Make any other desired configuration settings, then click "Apply."
10. When first setting up the Em50, erase the memory. This ensures a clean data set
before taking measurements.
Series Data Logger
®
Quick Start Guide
series data logger from METER Group. The Em50
®
Utility software.
®

