ZL6 Reference Barometer
Sensor Replacement

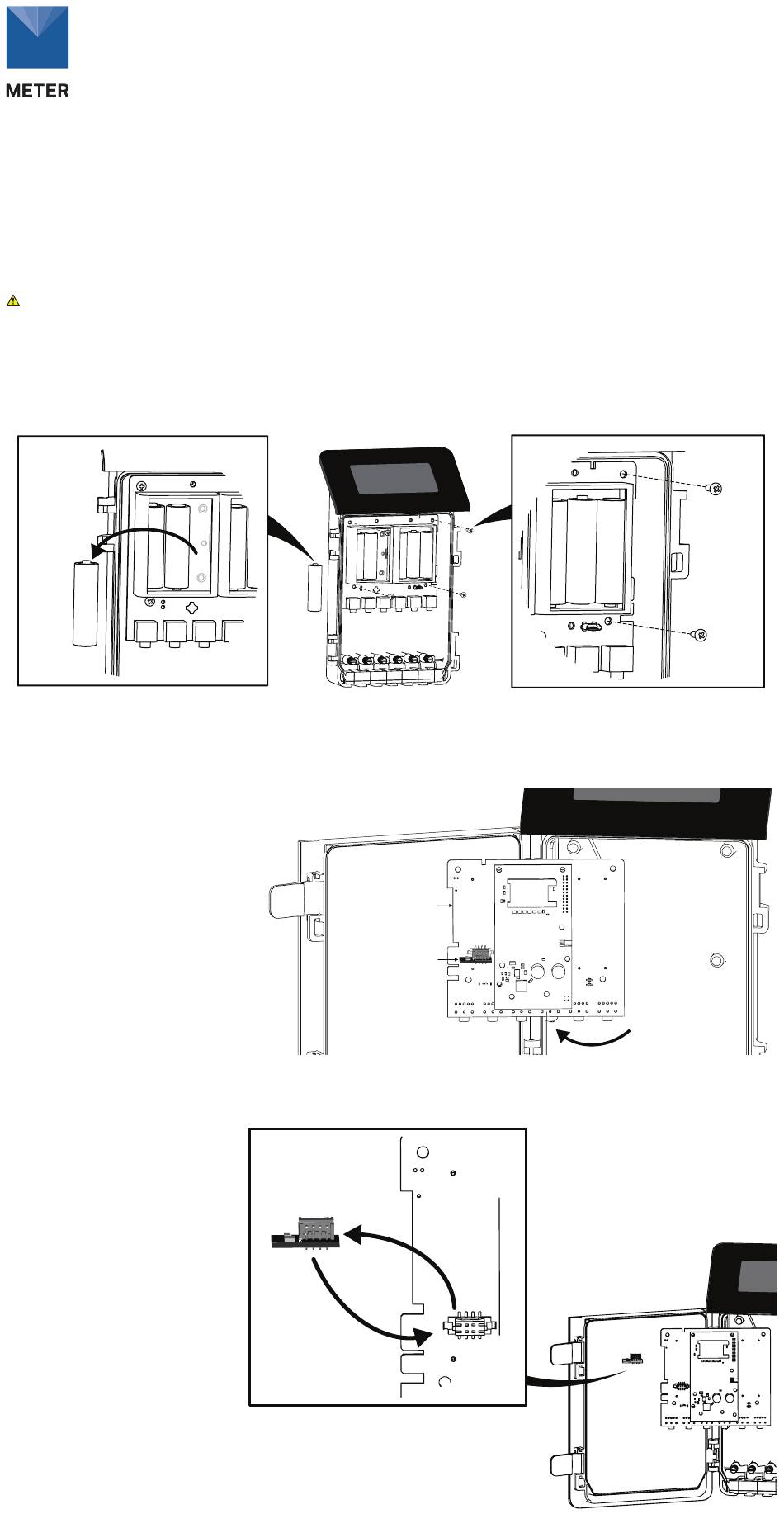

The reference barometer sensor in the ZL6 data logger should be replaced if it malfunctions
or if it needs to be calibrated. These step-by-step instructions will explain the replacement
process. A #1 Phillips screwdriver is required for installation.
ACCESS REFERENCE BAROMETER SENSOR
CAUTION: Do not disconnect any wiring.
1. Remove a battery to turn
off the ZL6, and press
Test button to clear
power in logger.
3. Carefully lift up
the main board
and rotate over to
expose the underside.
NOTE: No need to
disconnect the antenna.
REMOVE AND REPLACE SENSOR
4. Lifting straight up,
remove the existing
sensor and discard.
5. Pressing straight
down, insert the
new sensor into
the daughterboard
connector.
TEST
Insert new
Main board
Sensor
Remove old
2. Remove the four
screws from the
main board using a
Phillips screwdriver.
18317-00
5.15.2019
